VIDEO & POWER CONVERTER BALUN HD RJ45 12V REGULATOR PASSIVE

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

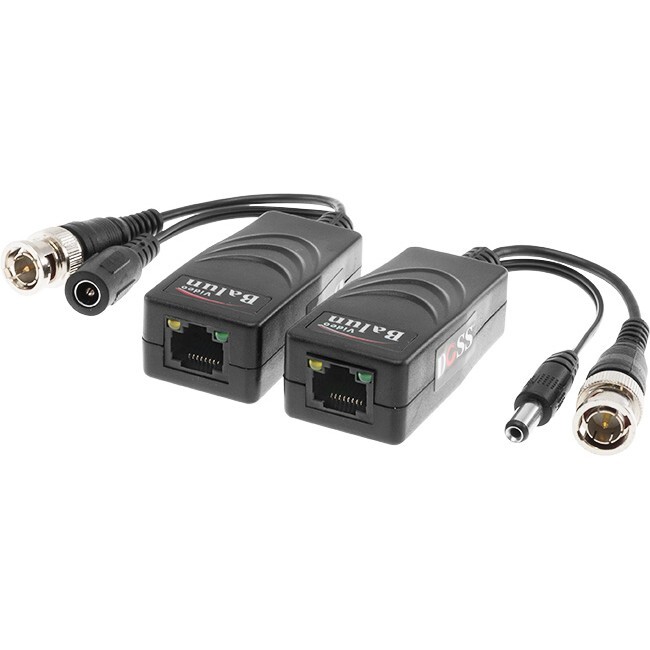

The Doss VPB45PCDHD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable.

The Doss VPB45PCDHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminate costly and bulky coaxial cable.
The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. Also, it has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

  • Convert 28V-36V DC to regulated 12VDC at camera

  • Color video up to 1312ft(400m) via UTP cat5e/6

  • Compatible with all HD-TVI, HD-CVI, AHD&CVBS analogue cameras

  • RJ45 jack for UTP cable

  • Real-time transmission

  • NTSC,PAL& SECAM video format compatible

  • Exceptional interference rejection

  • Built-in TVS(Transient Voltage Suppressors) for surge protection

  • 50dB crosstalk and noise immunity

  • Wave filter design Anti-static design

  • Compact size and easy installation

  • ABS engineering housing

(VPB45PCDHD)

Standard Consumer Warranty
The Doss VPB45PCDHD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable. The Doss VPB45PCDHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminate costly and bulky coaxial cable. The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. Also, it has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals. Convert 28V-36V DC to regulated 12VDC at camera Color video up to 1312ft(400m) via UTP cat5e/6 Compatible with all HD-TVI, HD-CVI, AHD&CVBS analogue cameras RJ45 jack for UTP cable Real-time transmission NTSC,PAL& SECAM video format compatible Exceptional interference rejection Built-in TVS(Transient Voltage Suppressors) for surge protection 50dB crosstalk and noise immunity Wave filter design Anti-static design Compact size and easy installation ABS engineering housing
Model # VPB45PCDHD
Barcode # 9328202017918
Brand DOSS
Shipping Weight 0.1000kg
Shipping Width 0.060m
Shipping Height 0.020m
Shipping Length 0.030m
Shipping Cubic 0.000036000m3
Type Transmitter
