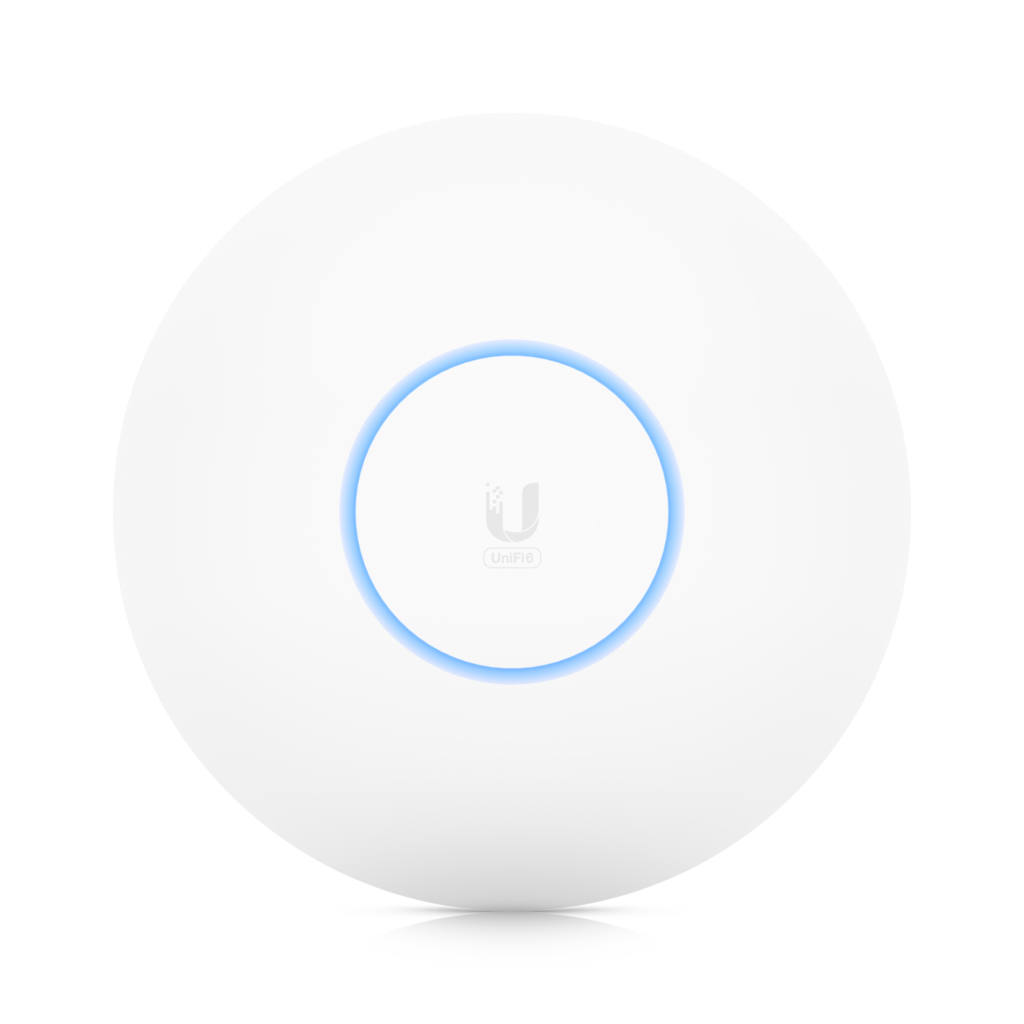

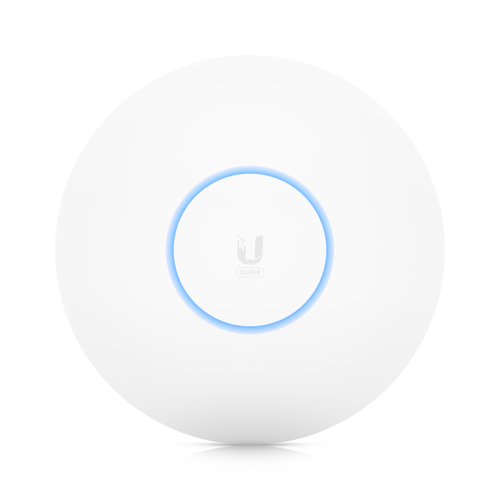

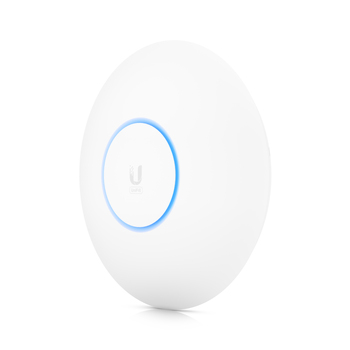

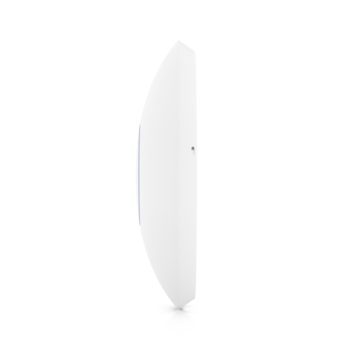

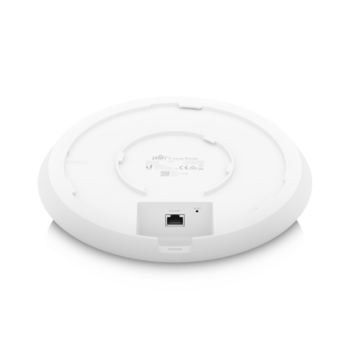

Ubiquiti UniFi Wi-Fi 6 Long-Range AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 600Mbps & 5GHz @ 2.4Gbps **No POE Injector Included**

Ubiquiti UniFi Wi-Fi 6 Long-Range AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 600Mbps & 5GHz @ 2.4Gbps **No POE Injector Included**

The Ubiquiti UniFi U6-LR is a powerful wireless Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

Ubiquiti UniFi U6-LR Key Features

• 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
• Four-stream high-efficiency WiFi 6 technology
• 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
• 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
• Powered with 802.3at PoE
• Managed by UniFi Network Controller version: 6.0.34 or higher

The UniFi U6-LR delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Ubiquiti UniFi U6-Lite - Technical Specifications
Mechanical

• Dimensions: Ø220 x 48 mm (Ø8.66 x 1.89")
• Weight:

- Without Mount: 800 g (1.76 lb)
- With Mount: 930 g (2.05 lb)

• Enclosure Material: Plastic
• Mounting Material: IP54

Hardware

• Processor Specs: Dual-Core® Cortex® A53 at 1.35 GHz
• Memory Information: 512 MB
• Management Interface: Ethernet In-Band
• Networking Interface: (1) Gbps Ethernet RJ45
• Buttons: Factory Reset
• LEDs: RGB
• Power Method: 802.3af PoE, Passive PoE (48V)
• Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
• Supported Voltage Range: 44 to 57VDC
• Max. Power Consumption: 16.5W
• Max. TX Power

- 2.4GHz: 26 dBm
- 5GHz: 26 dBm

• MIMO:

- 2.4GHz: 4 x 4
- 5GHz: 4 x 4

• Throughput Speeds

-2.4GHz: 600 Mbps
- 5GHz: 2,400 Mbps

• Antenna Gain

- 2.4GHz: 4 dBi
- 5GHz: 5.5 dBi

• Operating Temperature: -30 to 60° C (-22 to 140° F)
• Operating Humidity: 5 - 95% Noncondensing
• Certifications: CE, FCC, IC

Software

• WiFi Standards

- 802.11a/b/g
- WiFi 4/Wi-Fi 5/Wi-Fi 6

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID 8 per Radio
• VLAN: 802.1Q
• Advanced: QoS Per-User Rate Limiting
• Guest Trafc Isolation: Supported
• Concurrent Clients: 300+

Supported Data Rates (MBPS)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (Wi-Fi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
• 802.11ac: (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• 802.11ax: (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
