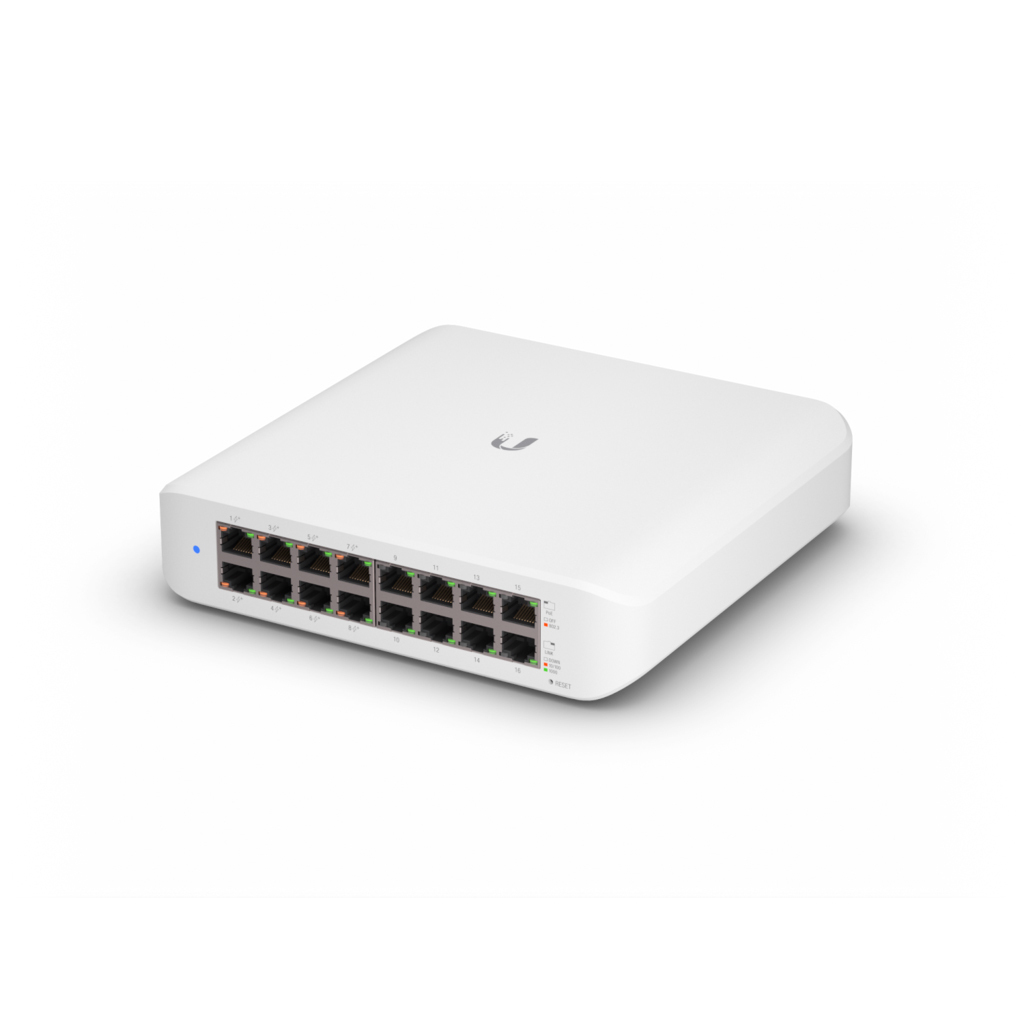

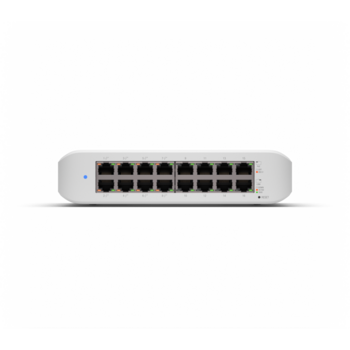

Ubiquiti UniFi Switch Lite 16 PoE

Ubiquiti UniFi Switch Lite 16 PoE

The USW-L ite-16-PoE is a configurable Gigabit Layer 2 switch with six teen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3a t PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-L ite-16-PoE offers basic Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

PRODUCT SPECIFICATIONS

Mechanical

• Dimensions: 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")
• Weight: 1.2 kg (2.65 lb)

Hardware

• Total Non-Blocking Line Rate: 16 Gbps
• Max. Power Consumption: 15W
• Power Method: Universal AC Input: 100-240VAC
• Power Supply: Internal 60W AC/DC Power Supply
• Networking Interfaces: (16) 10/100/1000 Mbps Ethernet RJ45
• PoE Interfaces: (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
• Mangement Interface: Ethernet In-Band
• Max PoE+ Wattage per Port by PSE: 30W
• Modes: SMB Layer 2 PoE Gigabit Ethernet Switch
• Operating Temperature: -15 to 40° C (5 to 104° F)
• Operating Humidity: 10 - 90% Noncondensing
• Certifcations: CE, FCC, IC

LED

• System:
  • (1) Power, Blue/White
  • Flashing White: Bootup in Progress
  • Flashing Blue: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
• Ethernet: Green: 1G, Amber: 10/100 Mbps
• PoE: Amber: IEEE 802.3af/at
