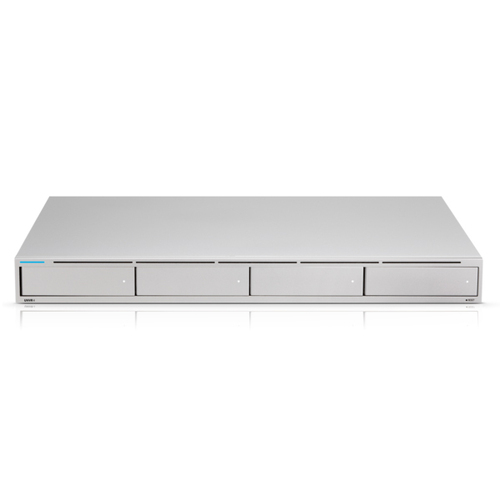

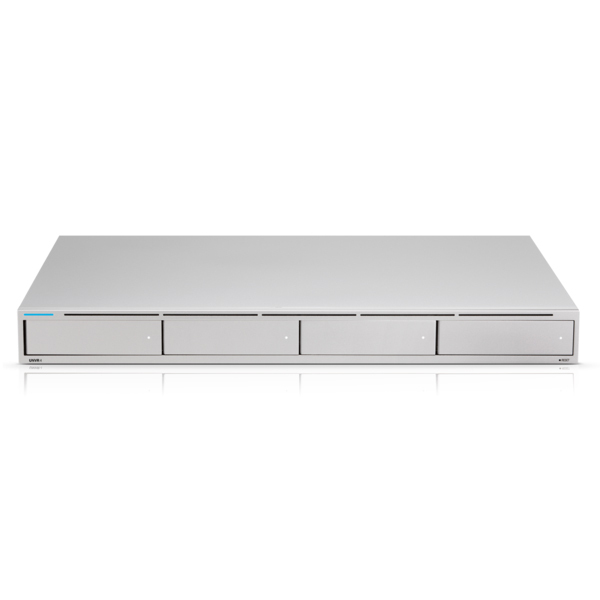

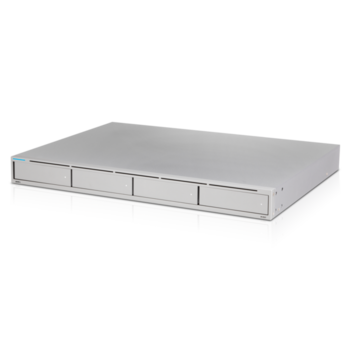

Ubiquiti UniFi Protect Network Video Recorder - 4x 3.5' HD Bays - Unifi Protect Pre Installed - NHU-RPS Compatible
or 4 payments of $203.25 with Learn more
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Ubiquiti UniFi Protect Network Video Recorder - 4x 3.5' HD Bays - Unifi Protect Pre Installed - NHU-RPS Compatible
Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

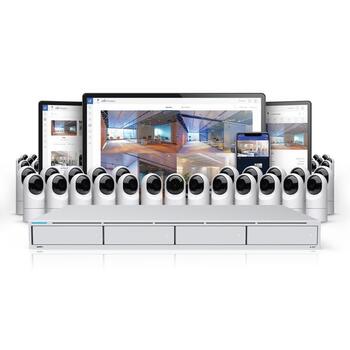

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.
Features:
- (4) 2.5"/3.5" Drive bays
- (1) 10G SFP+ port
- (1) Gigabit RJ45 port
- 1U rackmountable (kit included)
- Plug and Play UniFi Protect system with NVR
- Automated secure RAID 1 or RAID 5 configuration
- Supports USP-RPS for PSU failover
Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't found on our list of incompatible models.
PRODUCT SPECIFICATIONS
Mechanical
Dimensions: 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight
Without Rackmount Brackets: 5.11 kg (11.27 lb)
With Rackmount Brackets: 5.20 kg (11.46 lb)
Enclosure Material: SGCC Steel
Hardware
Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System Memory: 4 GB
On-Board Flash Storage: 8 GB
Max. Power Consumption: 100W
Max. Power Budget for Drives: 75W
Power Method
(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 10.43A
Power Supply: AC/DC, Internal, 120W
Networking Interfaces:
(1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet
Management Interface: Ethernet In-Band Management
ESD/EMP Protection: Air: ± 12kV, Contact: ± 8kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 - 95% Noncondensing
Certifications: FCC, CE, IC
LEDs
System
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue/White: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet: Green: 1000 Mbps, Amber: 10/100 Mbps
SFP+: White: 10 Gbps, Green: 1 Gbps
HDD: Amber: Disk Error, White: Disk Detected
RPS: Blue: Ready
(NHU-UNVR)
This item comes with a 12 months warranty
Model # | NHU-UNVR |
Barcode # | 810010073112 |
Brand | UBIQUITI |
Shipping Weight | 0.8900kg |
Shipping Width | 0.520m |
Shipping Height | 0.120m |
Shipping Length | 0.430m |
Shipping Cubic | 0.026832000m3 |
Type | Network Video Recorder |
