Ubiquiti UniFi 8-port 10G SFP+ Aggregation Switch, Layer 2 Switch, Fanless, 1U Rackmount

Ubiquiti UniFi 8-port 10G SFP+ Aggregation Switch, Layer 2 Switch, Fanless, 1U Rackmount

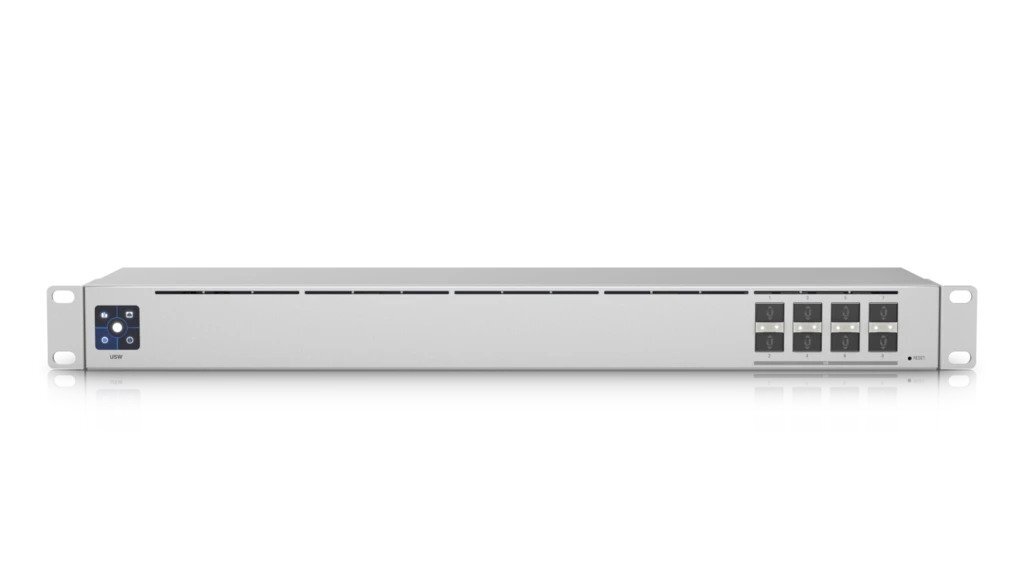

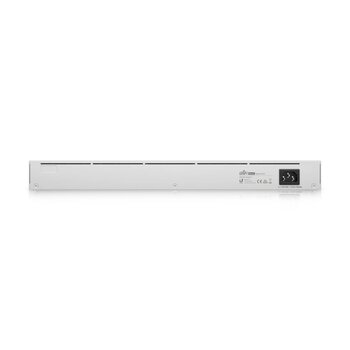

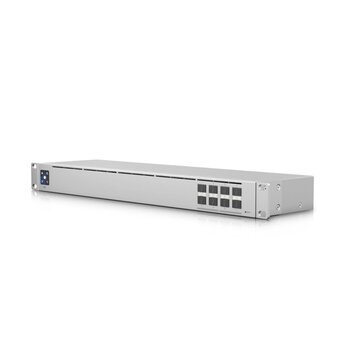

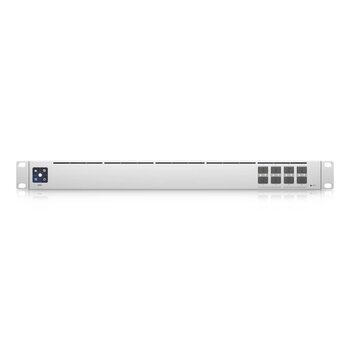

UniFi Aggregation Switch
USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.

Mechanical

• Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72″)
• Weight
  • Without Mount: 2.65 kg (5.84 lb)
  • With Mount: 2.74 kg (6.04 lb)
• Enclosure Material: SGCCSteel

Hardware

• Total Non-Blocking Throughput: 80 Gbps
• Switching Capacity: 160 Gbps
• Forwarding Rate: 119.04 Mpps
• Max. Power Consumption: 30W
• Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
• Power Supply: AC/DC, Internal, 36W
• Management Interface: EthernetIn-Band
• Modes: SMB Layer 2 GigabitEthernetSwitch
• ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
• Operating Temperature: -5 to 40° C(23 to 104° F)
• Operating Humidity: 10 – 90%Noncondensing
• Certications: CE, FCC, IC
