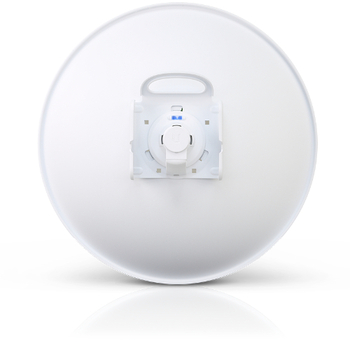

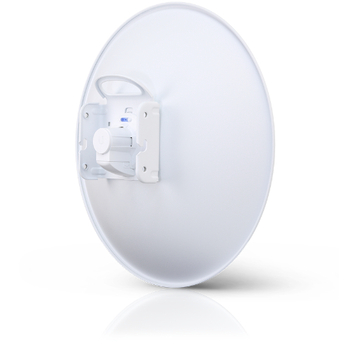

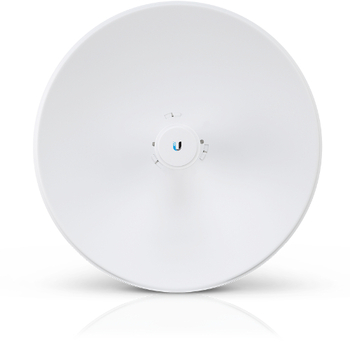

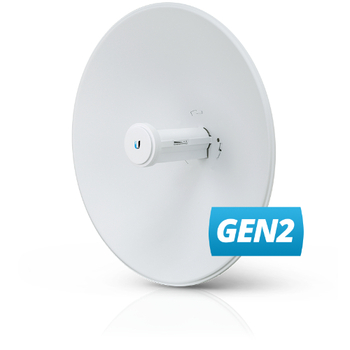

Ubiquiti PowerBeam 5AC Gen2 25dBi 5GHz 802.11ac 2x2 MIMO Antenna, 25+ km

Ubiquiti PowerBeam 5AC Gen2 25dBi 5GHz 802.11ac 2x2 MIMO Antenna, 25+ km

Using airMAX ac technology, the PBE-5AC-GEN2 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade.

Management Wi-Fi Radio
The PowerBeam® AC5 Gen2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam® AC5 Gen2 offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation
The PowerBeam® AC5 Gen2 requires no tools for assembly; only a single wrench is required for pole-mounting.

Processor Specs: MIPS 74Kc
Memory: 64 MB
Wireless transmission speed: Up to 450+ Mbps
Operating Frequency: Worldwide 2400-2483.5 5150 - 5875
Net. Interface: (1) 10/100/1000 Ethernet Port
Gain: 25 dBi
Max. Power Consumption: 8.5W
Wi-Fi Range: 15+ km
Dimensions: 420 x 420 x 230 mm (16.54 x 16.54 x 9.06')
Weight: 2.22 kg (4.89 lb)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Mounting: Pole Mounting Kit Included
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
