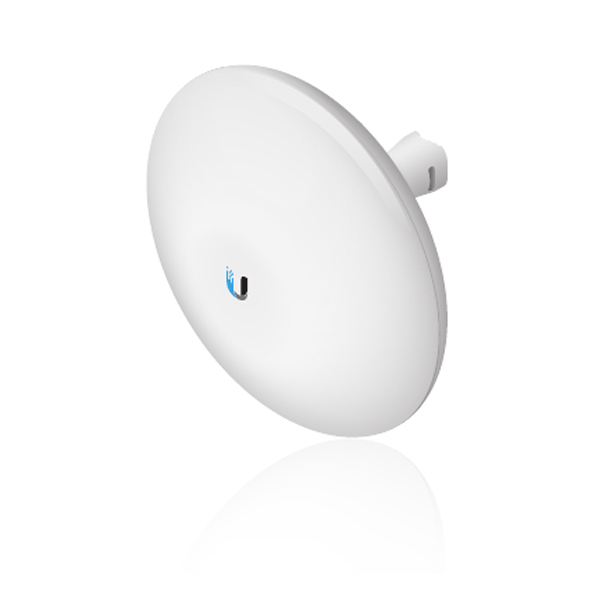

Ubiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Mechanical Design

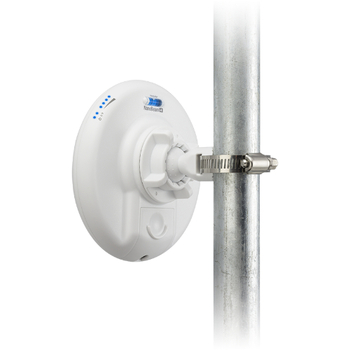

• Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
• Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
• Easy removal The antenna feed can be detached with the push of a button.

Corrosion Resistance

• Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.

SPECIFICATION

Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
Operating Frequency: 2412 - 2472 MHz Worldwide
Net. Interface: (1) 10/100/1000 Ethernet Port
Gain: 13 dBi
Polarization: Dual Linear
Max. Power Consumption: 8.5W
Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92')
Weight: 0.530 kg (1.17 lb)
Power Supply (PoE): 24V, 0.5A PoE
Mounting: Pole-Mount (Kit Included), Wall-Mount
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing

(NHU-NBE-2AC-13)

This item comes with a 12 months warranty

Model # NHU-NBE-2AC-13
Barcode # 810354024627
Brand UBIQUITI
Shipping Weight 0.7400kg
Shipping Width 0.240m
Shipping Height 0.100m
Shipping Length 0.220m
Shipping Cubic 0.005161000m3
Type Antenna
