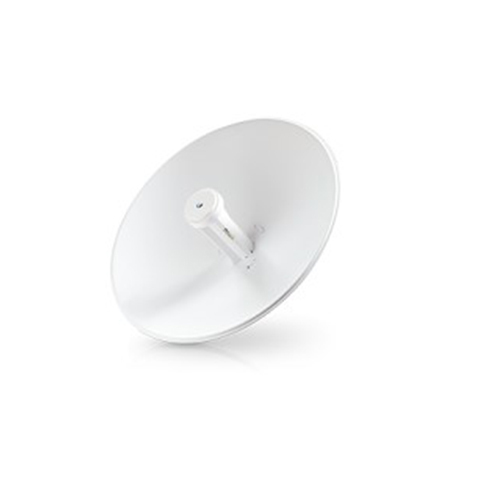

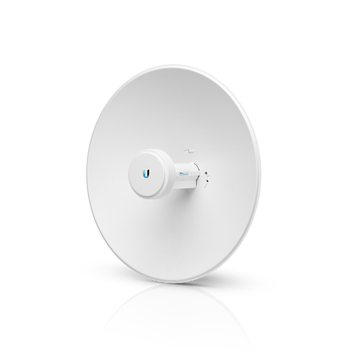

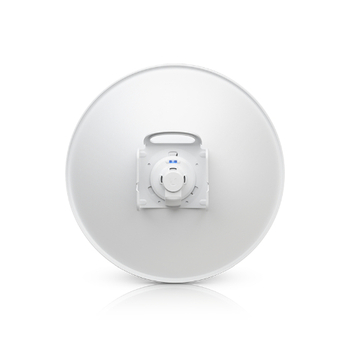

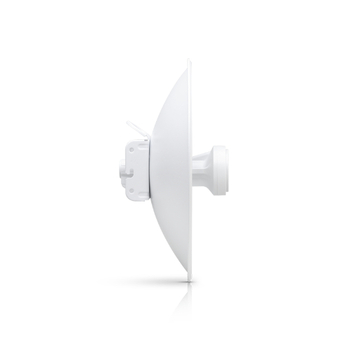

Ubiquiti 2.4 GHz PowerBeam AC airMAX® ac Bridge with Dedicated Wi-Fi Management

Ubiquiti 2.4 GHz PowerBeam AC airMAX® ac Bridge with Dedicated Wi-Fi Management

Overview
Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management.
Powerful Wireless Features
• High-performance airMAX ac CPE
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP)
Link Mode
• Selectable Channel Width
• PtP: 10/20/40 MHz
• PtMP: 10/20/40 MHz
• Automatic Channel Selection
• Transmit Power Control:
Automatic/Manual
• Automatic Distance Selection
(ACK Timing)
• Strongest WPA2 Security
Usability Enhancements
• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic
Tools, Including RF Diagnostics and
airView® Spectrum Analyzer

Specifications:-
Dimensions with Radome 420 x 420 x 289 mm (16.54 x 16.54 x 11.38')
Weight (Mount Included) 1.795 kg (4.809 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 7.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 22 to 26VDC
Gain 18 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel Sizes
PtP Mode PtMP Mode
10/20/40 MHz 10/20/40 MHz
Enclosure Characteristics
Antenna Feed Dish Reflector
Outdoor UV Stabilized Plastic Powder-Coated SPCC
Mounting Pole-Mounting Kit (Included)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1
