UNDER DASH PANEL MOUNT USB SOCKET

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

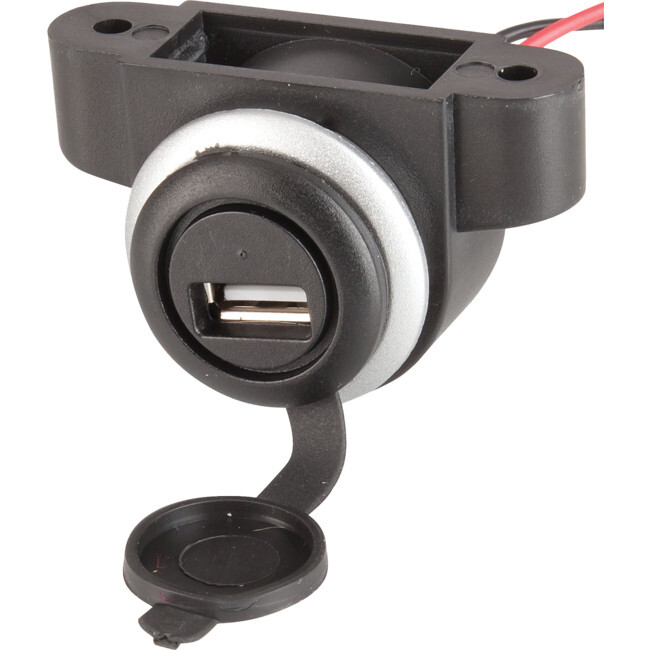

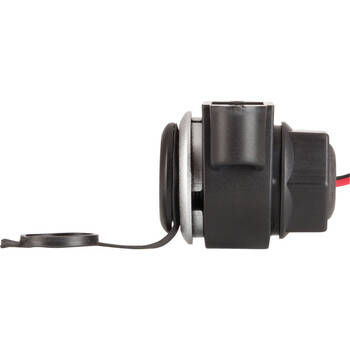

Under-Dash Or Panel Mount USB Socket

This handy fitting enables you to position a USB outlet under a wooden, fibreglass or metal dashboard complete with rubber plug moisture/dust cover.

Alternatively, you can remove the actual USB insert to panel-mount the USB socket.

The insert requires a 22mm dia hole but it will go through up to 38mm of the panel so your panel can be wood if necessary.

This is a very versatile fitting and you have to see it to appreciate what it is capable of.

  • Power input: 12-24VDC

  • Output: 5V 2.1A

  • In-line fuse holder included

  • Sealing washers/gaskets included

  • Mounting screws included

  • Smart silver trim bezel included

(PS2016)

Standard Consumer Warranty

Under-Dash Or Panel Mount USB Socket This handy fitting enables you to position a USB outlet under a wooden, fibreglass or metal dashboard complete with rubber plug moisture/dust cover. Alternatively, you can remove the actual USB insert to panel-mount the USB socket. The insert requires a 22mm dia hole but it will go through up to 38mm of the panel so your panel can be wood if necessary. This is a very versatile fitting and you have to see it to appreciate what it is capable of. Power input: 12-24VDC Output: 5V 2.1A In-line fuse holder included Sealing washers/gaskets included Mounting screws included Smart silver trim bezel included
Model # PS2016
Barcode # 9319236987223
Brand UNBRANDED
Shipping Weight 0.0800kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.180m
Shipping Cubic 0.001800000m3
