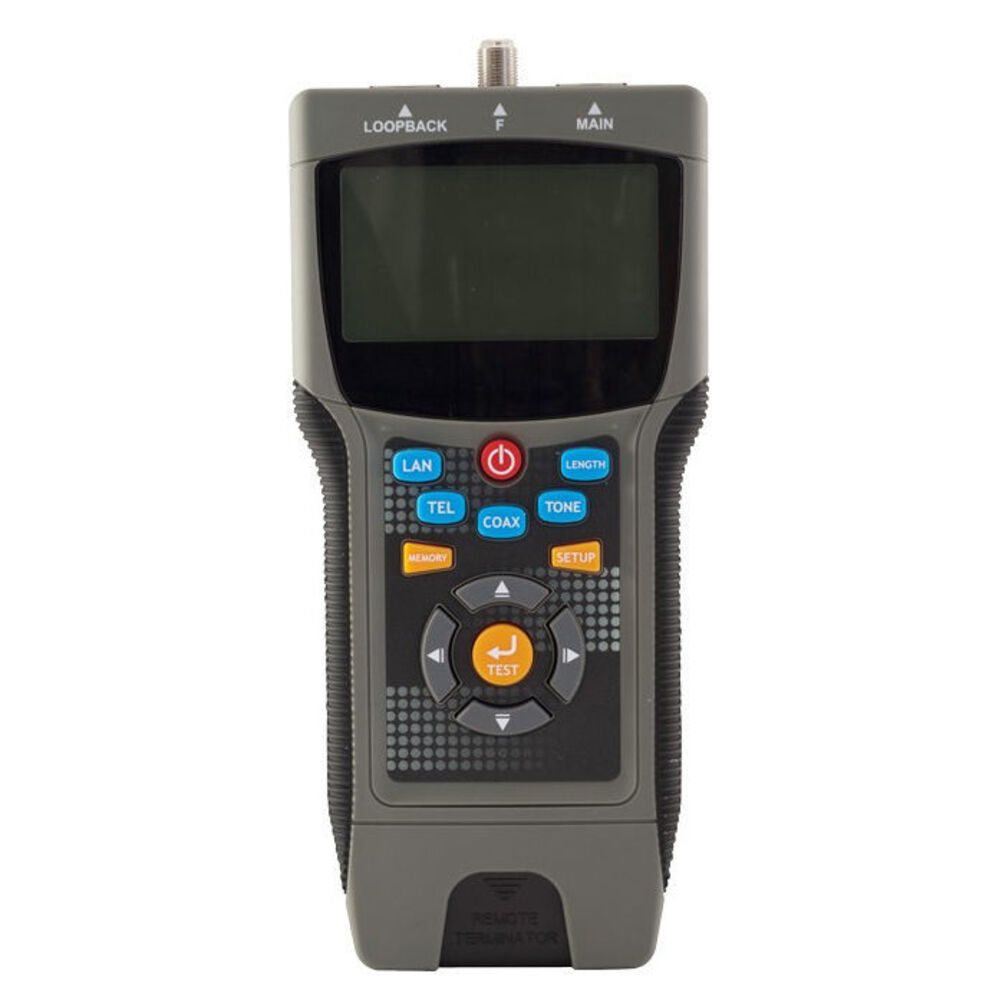

Doss LCT8 Pro Coax & Lan Cable Tester Locates Distance to the Fault/Coaxial/Wire

Great piece of equipment

Just what I needed to trace problem cables and locate faults, makes fault diagnostics easy giving a precise location for where to look for a damaged cable. This is an easy to use piece of equipment I would recommend to anyone involved with coaxial, phone or network cabling. This takes the guess work out of the job a real time saving device, also handy for measuring the length of cable in any given run. Im not sure how I ever got by without one of these.

Write a product review

The LCT8 is a great tester for people doing communicationinstallations and maintenance, as it provides quick verification of several common types of communication problems in structured LAN wiring, coaxial cabling and telephone wiring.



  • Find the open circuits, short circuits, jumpers, crossed or split pairs in coax and UTP cables.
  • Identifies and locates the distance to an open or a short in seconds
    • Time-domain reflectometer (TDR)
  • Identify cables using upto 8 (optional) remote terminators
    • Remote adaptors require no extra power

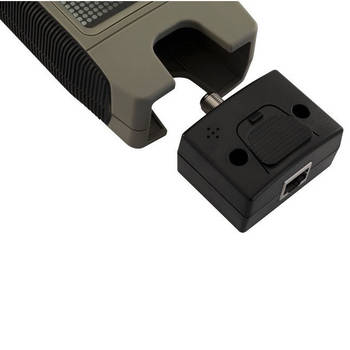

    • 1x remote terminator supplied with LCT8
  • Low battery indication.
  • Measures cable length in a box, on a spool, or in a wall. Know how much cable you have left on a spool before beginning your pulls.
  • Check for wiring errors in: LAN UTP cables, coaxial cables and telephone lines, such as:
    • open circuit,
    • short circuit,
    • jumper wire,
    • reverse connection,
    • cross talk interface or,
    • split pairs.
  • Locate the wiring or connection error.
  • Dynamically calibrate cable length and make length measurement as accurate as 97%.
  • Simple and easy to use 144 x 64 Dots FSTN LCD screen display test results.
  • Portable unit with long battery life.
  • Automatic time delay shut off.
  • Measure length and pair without the need for remote terminator.
  • 1x Remote terminator with audible alert supplied.
  • Self-checking function and automatic compensation for any change in battery capacity or ambient temperature.
  • Dimensions: 195 x 93 x 38mm (LCD display: 69 x 38mm)
  • Locate/Identify cables with up to 8 remote passive test jacks
    • Note: Only 1x passive terminator supplied (ID01)
    • 7x extra optional passive terminators available: LCT8RM

(LCT8)

This item comes with 12 month Warranty

The LCT8 is a great tester for people doing communicationinstallations and maintenance, as it provides quick verification of several common types of communication problems in structured LAN wiring, coaxial cabling and telephone wiring. Display 4x16 Character LCD lattice.LCD module:70.6 x 60mm (valid visual field 60 x 32.6mm) Connector Type RJ45 / RJ12 / RJ11 & F-connector Button (1)Lan, (2)Tel, (3)Coax, (4)Tone, (5)Length, (6)Test, (7)Power Cable Type Shielded or unshielded, CAT-6, CAT5e, CAT5, CAT4, CAT3 and coax. Error Status Open circuit, short circuit, jumper wire, reverse,connection or cross-talk interference and split pairs. Measure Types Measures cable length via TDR.Checks and verifies wire tap.Generates four different tracing tones to help identify users. Cable Length & Accuracy Accuracy of the length measurement is ± 5% Length: 1 ~ 350 meters (3~12000 feet) Minimum cable length for testing twin pairs 1 metre (3 feet) Power Source 9 volt alkaline battery.(included) Turns off automatically Auto-off in any module and low power consumption for long battery life. Input protection Protection against excess voltage, transients ringer signal. Dimensions 195mm(L), 90mm(W), 40mm(H) Enviromental Operating temp: 0 to 50 CStorage temp: -10 to 60 CHumidity: 10% to 90% non condensing. Accessories Tool bag, F to BNC adapter x 2 Warning The LCT8 should not be used on an 'active' circuit, since it will interfere with the signal and affect the testing judgments.
  • Display 4x16 Character LCD lattice.LCD module:70.6 x 60mm (valid visual field 60 x 32.6mm)

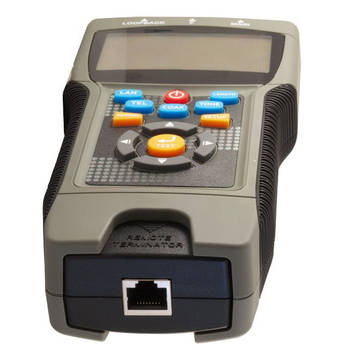

  • Connector Type RJ45 / RJ12 / RJ11 & F-connector
  • Button (1)Lan, (2)Tel, (3)Coax, (4)Tone, (5)Length, (6)Test, (7)Power
  • Cable Type Shielded or unshielded, CAT-6, CAT5e, CAT5, CAT4, CAT3 and coax.
  • Error Status Open circuit, short circuit, jumper wire, reverse,connection or cross-talk interference and split pairs.
  • Measure Types Measures cable length via TDR.Checks and verifies wire tap.Generates four different tracing tones to help identify users.
  • Cable Length & Accuracy Accuracy of the length measurement is ± 5%
  • Length: 1 ~ 350 meters (3~12000 feet)
  • Minimum cable length for testing twin pairs 1 metre (3 feet)
  • Power Source 9 volt alkaline battery.(included)
  • Turns off automatically Auto-off in any module and low power consumption for long battery life.
  • Input protection Protection against excess voltage, transients ringer signal.
  • Dimensions 195mm(L), 90mm(W), 40mm(H)
  • Enviromental Operating temp: 0 to 50 CStorage temp: -10 to 60 CHumidity: 10% to 90% non condensing.
  • Accessories Tool bag, F to BNC adapter x 2

Warning

The LCT8 should not be used on an 'active' circuit, since it will interfere with the signal and affect the testing judgments.

Model # LCT8
Barcode # 9328202024787
Brand DOSS
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Type Computer Cable Tester
