THOR SMART RACK GUARD 1119" 1RU RACK MOUNT

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

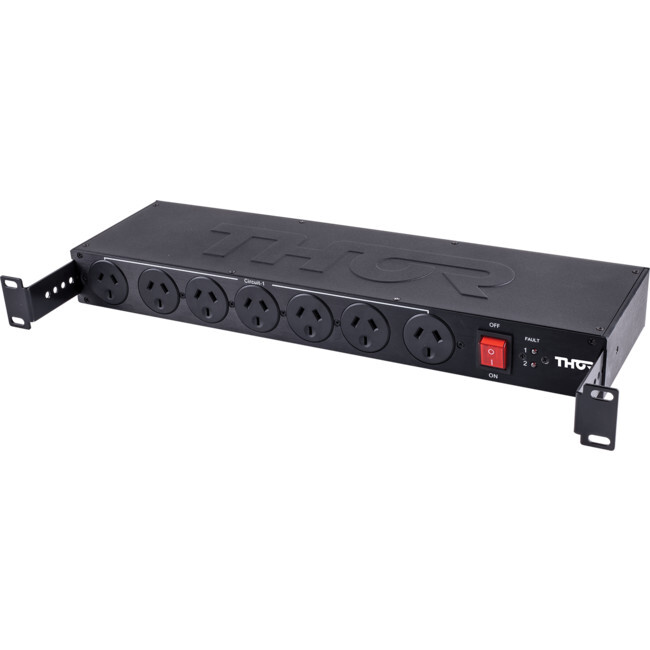

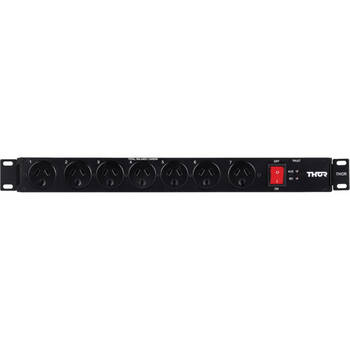

Thor Smart Rack Guard 1119" 1RU Rack Mount with adjustable sliding brackets is compact and neat without the bulk.

  • Dimensions: 484mm(W) x 47.5mm(H) x 182mm(D)

  • Supply voltage 240/V AC 50Hz

  • Maximum current rating 10amps/2400 W (VA)

  • Clamping Voltage 275VAC

  • Reaction speed less than 1 nanosecond

  • Maximum transient spike impulse current (Amps) 156,000 amps. Equivalent to 39,000 Amps using UL1449 standard

  • Maximum Energy Dissipation (Joules) 3420 Joules. Equivalent to 1140 Joules using UL1449 standard

  • Noise Reduction Filter EMI/RFI (SmartBrain Passive)

  • Total Number Protected and Filtered outlets 11

  • Earth Leakage Range less than 1 miili amp

  • Operating conditions Indoor/AC Mains

  • Operating Temperatures -10C/+60C

  • Cable lenght 2.0m

  • Dual Isolated Circuit

  • LED Warning if surge protection compromised

(RF11)

Standard Consumer Warranty
Thor Smart Rack Guard 1119" 1RU Rack Mount with adjustable sliding brackets is compact and neat without the bulk. Dimensions: 484mm(W) x 47.5mm(H) x 182mm(D) Supply voltage 240/V AC 50Hz Maximum current rating 10amps/2400 W (VA) Clamping Voltage 275VAC Reaction speed less than 1 nanosecond Maximum transient spike impulse current (Amps) 156,000 amps. Equivalent to 39,000 Amps using UL1449 standard Maximum Energy Dissipation (Joules) 3420 Joules. Equivalent to 1140 Joules using UL1449 standard Noise Reduction Filter EMI/RFI (SmartBrain Passive) Total Number Protected and Filtered outlets 11 Earth Leakage Range less than 1 miili amp Operating conditions Indoor/AC Mains Operating Temperatures -10C/+60C Cable lenght 2.0m Dual Isolated Circuit LED Warning if surge protection compromised
Model # RF11
Brand THOR
Shipping Weight 0.8000kg
Shipping Width 0.450m
Shipping Height 0.070m
Shipping Length 0.180m
Shipping Cubic 0.005670000m3
Type Chisel Tip
