THOR SMART PROTECT 6 SMART TECPOWER PROTECTION & FILTRATION

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

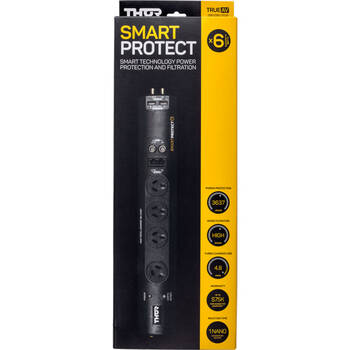

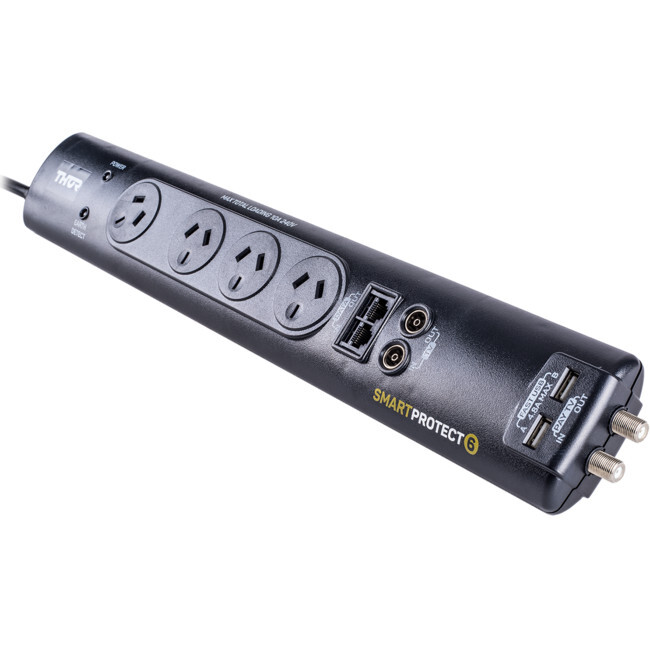

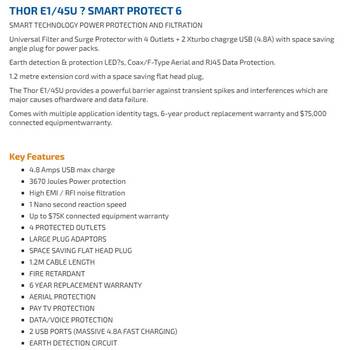

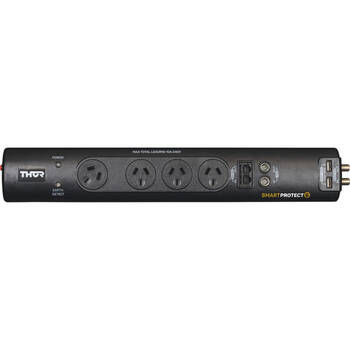

Thor Smart Protect 6 Smart Tecpower Protection & Filtration

Universal Filter and Surge Protector with 4 Outlets + 2 Xturbo chagrge USB (4.8A) with space saving angle plug for power packs.

Dimensions: 430mm (L) x 35mm (H) x 75mm (W)
Supply voltage 240/V AC 50/Hz
Maximum current rating 10amps/2400W(VA)
Clamping voltage 275V AC
Reaction time less than 1 nanosecond
Maximum translent spike impulse current 125,000 amps(equivalent to 31,200 amps using UL 1449 standard)
Maximum energy dissipation 3670 Joules (equivalent to 1240 Joules using UL1449 standard)
Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
EMI/RFI noise reduction filter type
Total number of protected AC outlets: 4
Total number of protected USB ports: 2
Pay TV'F' type connection: 1 in and 1 out

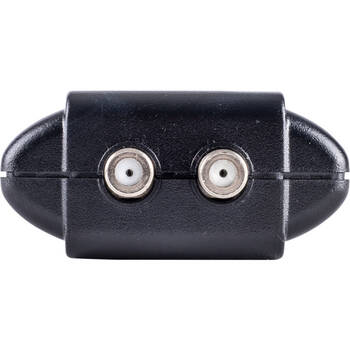

AV/TV antenna coax connection: 1 in and 1 out
RJ 45 data protection: 1 in and 2 out
Earth potential rise protection
Earth leakage range less than 1 milli amp
Operating conditions: Indoor/AC mains
Operating temperatures: -10C/+60C
Cable length: 1.2m

(E145U)

Standard Consumer Warranty
Thor Smart Protect 6 Smart Tecpower Protection & Filtration Universal Filter and Surge Protector with 4 Outlets + 2 Xturbo chagrge USB (4.8A) with space saving angle plug for power packs. Dimensions: 430mm (L) x 35mm (H) x 75mm (W) Supply voltage 240/V AC 50/Hz Maximum current rating 10amps/2400W(VA) Clamping voltage 275V AC Reaction time less than 1 nanosecond Maximum translent spike impulse current 125,000 amps(equivalent to 31,200 amps using UL 1449 standard) Maximum energy dissipation 3670 Joules (equivalent to 1240 Joules using UL1449 standard) Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth EMI/RFI noise reduction filter type Total number of protected AC outlets: 4 Total number of protected USB ports: 2 Pay TV'F' type connection: 1 in and 1 out AV/TV antenna coax connection: 1 in and 1 out RJ 45 data protection: 1 in and 2 out Earth potential rise protection Earth leakage range less than 1 milli amp Operating conditions: Indoor/AC mains Operating temperatures: -10C/+60C Cable length: 1.2m
Model # E145U
Brand THOR
Shipping Weight 0.4000kg
Shipping Width 0.450m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.009000000m3
Type Power Board
