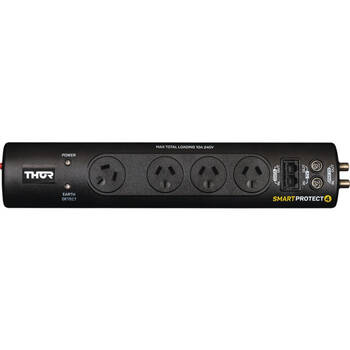

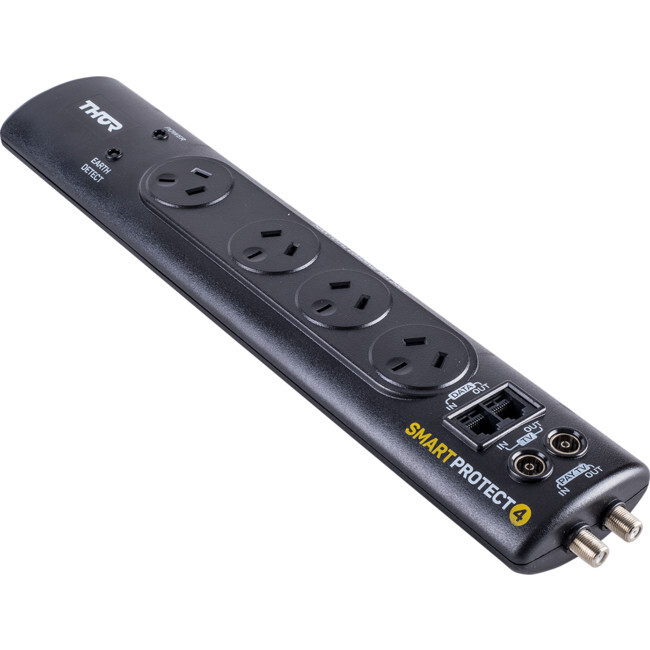

Thor Smart Protect 4 Smart Tecpower Protection & Filtration

Universal Filter and Surge Protector with 4 outlets with space-saving angle plug for power packs.

  • Dimensions: 350mm (L) x 35mm (H) x 70mm (W)

  • Supply voltage 240/V AC 50/Hz

  • Maximum current rating 10amps/2400W(VA)

  • Reaction time less than 1 nanosecond

  • Maximum translent spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard)

  • Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard)

  • Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth

  • EMI/RFI noise reduction filter type

  • Total number of protected AC outlets: 4

  • Pay TV'F' type connection: 1 in and 1 out

  • AV/TV antenna coax connection: 1 in and 1 out

  • RJ 45 data protection: 1 in and 1 out

  • Earth leakage range less than 1 milli amp

  • Operating conditions: Indoor/AC mains

  • Operating temperatures: -10C/+60C

  • Cable length: 1.2m

(E145S)

Standard Consumer Warranty
Thor Smart Protect 4 Smart Tecpower Protection & Filtration Universal Filter and Surge Protector with 4 outlets with space-saving angle plug for power packs. Dimensions: 350mm (L) x 35mm (H) x 70mm (W) Supply voltage 240/V AC 50/Hz Maximum current rating 10amps/2400W(VA) Reaction time less than 1 nanosecond Maximum translent spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard) Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard) Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth EMI/RFI noise reduction filter type Total number of protected AC outlets: 4 Pay TV'F' type connection: 1 in and 1 out AV/TV antenna coax connection: 1 in and 1 out RJ 45 data protection: 1 in and 1 out Earth leakage range less than 1 milli amp Operating conditions: Indoor/AC mains Operating temperatures: -10C/+60C Cable length: 1.2m
Model # E145S
Brand THOR
Shipping Weight 0.8000kg
Shipping Width 0.350m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.007000000m3
Type Power Board
