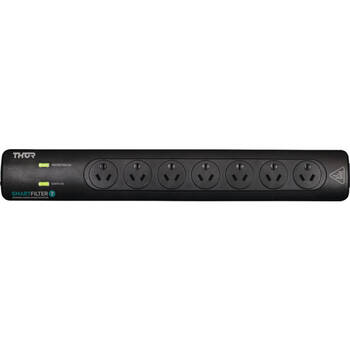

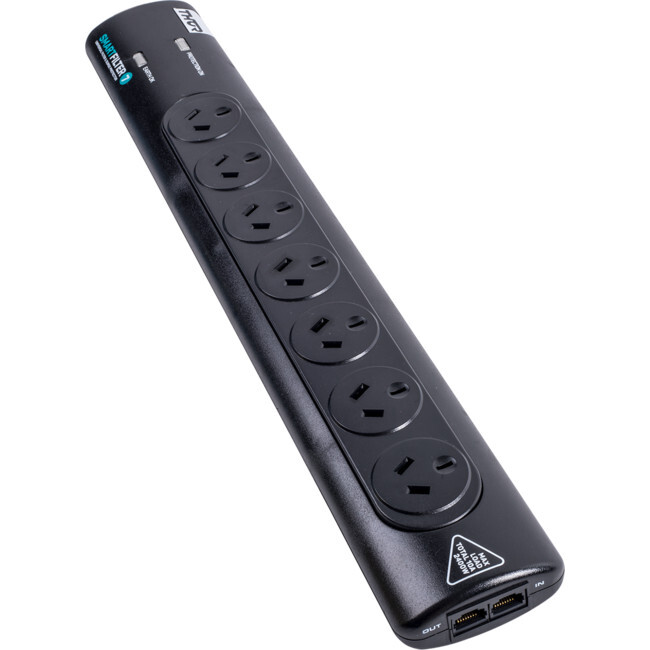

Thor Smart Filter 7 Smart Techpower Protection & Filtration is a popular board because of its slimline profile.

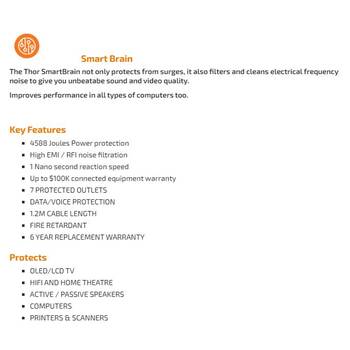

The SmartBrain passive filter adds to the industry-leading protection capability offering an all-round solution.

  • Dimensions: 470mm(L) x 33mm(H) x 75mm(W)

  • Supply voltage 240/V AC 50/Hz

  • Maximum current rating 10amps/2400 W (VA)

  • Clamping voltage 275 V AC

  • Reaction time less than 1 nanosecond

  • Maximum transient spike impulse current 156,000 amps(equivalent to 39,000 amps using UL1449 standard)

  • Maximum energy dissipation 4588 Joules (equivalent to 1550 Joules using UL1449 standard)

  • Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)

  • EMI/RFI noise reduction filter type

  • Total number of protected AC outlets: 7

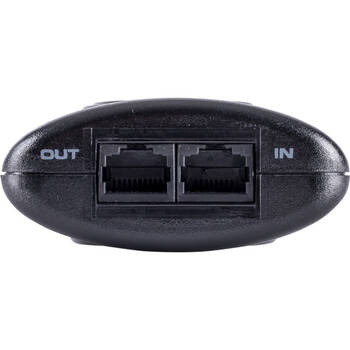

  • RJ 45 data protection: 1 in and 1 out

  • Earth potential rise protection

  • Earth leakage range less than 1 milli amp

  • Operating temperatures: -10C/+60C

  • Cable length: 1.2m

(D145B)

Standard Consumer Warranty
Thor Smart Filter 7 Smart Techpower Protection & Filtration is a popular board because of its slimline profile. The SmartBrain passive filter adds to the industry-leading protection capability offering an all-round solution. Dimensions: 470mm(L) x 33mm(H) x 75mm(W) Supply voltage 240/V AC 50/Hz Maximum current rating 10amps/2400 W (VA) Clamping voltage 275 V AC Reaction time less than 1 nanosecond Maximum transient spike impulse current 156,000 amps(equivalent to 39,000 amps using UL1449 standard) Maximum energy dissipation 4588 Joules (equivalent to 1550 Joules using UL1449 standard) Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth) EMI/RFI noise reduction filter type Total number of protected AC outlets: 7 RJ 45 data protection: 1 in and 1 out Earth potential rise protection Earth leakage range less than 1 milli amp Operating temperatures: -10C/+60C Cable length: 1.2m
Model # D145B
Brand THOR
Shipping Weight 0.4000kg
Shipping Width 0.450m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.009000000m3
Type Power Board
