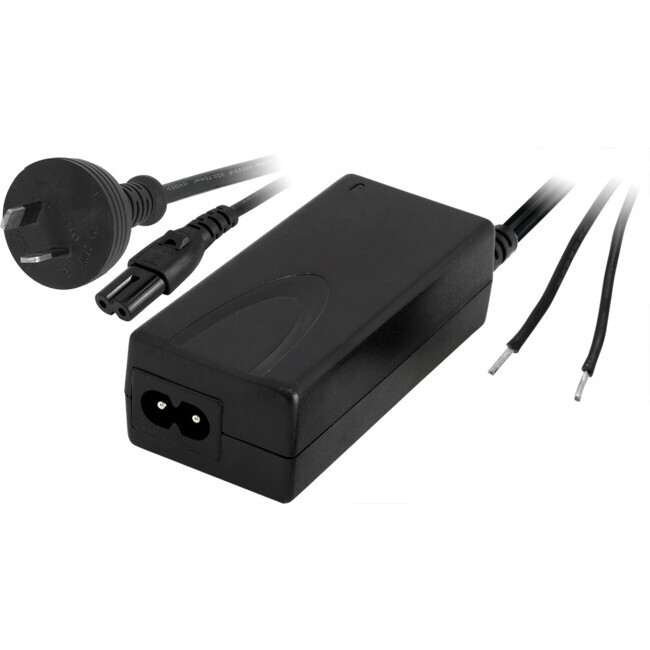

SWITCHMODE 18V 2A BARE WIRE POWER SUPPLY FOR AIPHONE

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

18V DC Power Supply For Aiphone
General

  • Weight: 295.5g

  • Automatic recovery when removal of protecting the condition

Input

  • Rated input voltage: 100-240V AC

  • Vibration input voltage range: 90-264V AC

  • Rated input frequency: 60/50Hz

  • Vibration Rate input frequency: 63/47Hz

  • AC input Rated current: 1A Max .@100V AC

  • AC input Max power(No load): 0.3W Max .@230V AC

  • Inrush Current: 30A Max .@100VAC cool start

  • 60A Max .@230VAC cool start

  • Leakage current: 0.25mA Max

Output Characteristics

  • Rating output voltage: 18V

  • Rating output current: 2A

  • Min. load current 0A

  • Output no-load voltage: 18V±5%

  • Output load voltage: 18V±5%

  • Output ripple & noise: 200mV

(SM1820B)

Standard Consumer Warranty
18V DC Power Supply For Aiphone General Weight: 295.5g Automatic recovery when removal of protecting the condition Input Rated input voltage: 100-240V AC Vibration input voltage range: 90-264V AC Rated input frequency: 60/50Hz Vibration Rate input frequency: 63/47Hz AC input Rated current: 1A Max .@100V AC AC input Max power(No load): 0.3W Max .@230V AC Inrush Current: 30A Max .@100VAC cool start 60A Max .@230VAC cool start Leakage current: 0.25mA Max Output Characteristics Rating output voltage: 18V Rating output current: 2A Min. load current 0A Output no-load voltage: 18V±5% Output load voltage: 18V±5% Output ripple & noise: 200mV
Model # SM1820B
Barcode # 9328202012692
Brand DOSS
Shipping Weight 0.3200kg
Shipping Width 0.200m
Shipping Height 0.070m
Shipping Length 0.150m
Shipping Cubic 0.002100000m3
Type Power Supply
