SCREW TERMINAL BNC VIDEO BALUN MINI PASSIVE HD VERSION

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

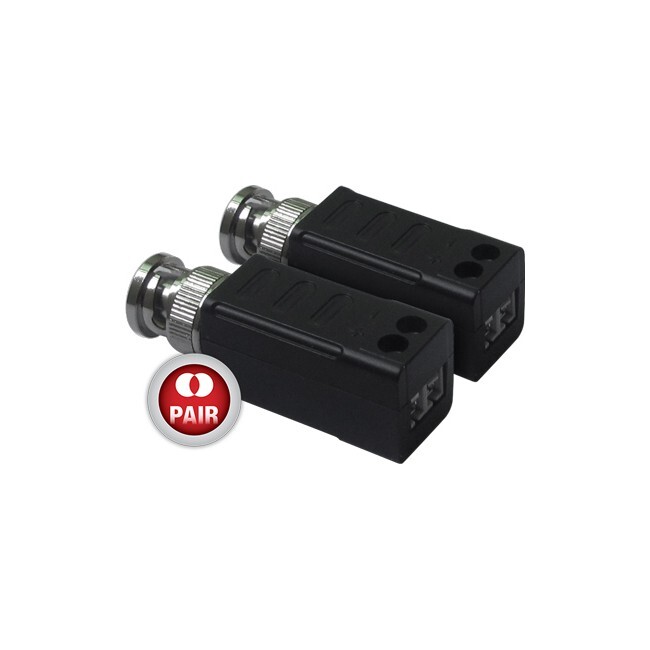

The Doss BVB4102SHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via Unshielded Twisted Paired(UTP) cable. It is compatible with all HD-TVI, HD-CVI and AHD analogue cameras.

BNC plug of the BVB4102SHD allows connection directly to the camera or DVR. Screw terminals of the BVB4102SHD allow easy connection of UTP cable output. Used in pairs, the BVB4102SHD eliminates costly and bulky coaxial cable.

Features
Real-time transmission over UTP cat 5e/6
No power required
Compatible with NTSC, PAL & SECAM video format
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras
Colour video max up to 440m for HD-CVI 720P camera
Colour video max up to 210m for TVT HD-TVI 720P camera, 230m for 1080P camera
Colour video max up to 300m for AHD 720P camera, 240m for AHD 960P and 220 for AHD 1080P
BNC Plug and two screw terminals connection for UTP cable
Built-in TVS for surge protection
Wave filter and anti-static design
Grade III Lightning protection design
60dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing

(BVB4102SHD)

Standard Consumer Warranty
The Doss BVB4102SHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via Unshielded Twisted Paired(UTP) cable. It is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. BNC plug of the BVB4102SHD allows connection directly to the camera or DVR. Screw terminals of the BVB4102SHD allow easy connection of UTP cable output. Used in pairs, the BVB4102SHD eliminates costly and bulky coaxial cable. Features Real-time transmission over UTP cat 5e/6 No power required Compatible with NTSC, PAL & SECAM video format Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras Colour video max up to 440m for HD-CVI 720P camera Colour video max up to 210m for TVT HD-TVI 720P camera, 230m for 1080P camera Colour video max up to 300m for AHD 720P camera, 240m for AHD 960P and 220 for AHD 1080P BNC Plug and two screw terminals connection for UTP cable Built-in TVS for surge protection Wave filter and anti-static design Grade III Lightning protection design 60dB crosstalk and noise immunity Exceptional interference rejection ABS engineering plastic housing
Model # BVB4102SHD
Barcode # 9328202017864
Brand DOSS
Shipping Weight 0.0400kg
Shipping Width 0.040m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000016000m3
Type Transmitter
