RJ45 VIDEO POWER & PTZ BALUN UP TO 200M HD VERSION

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

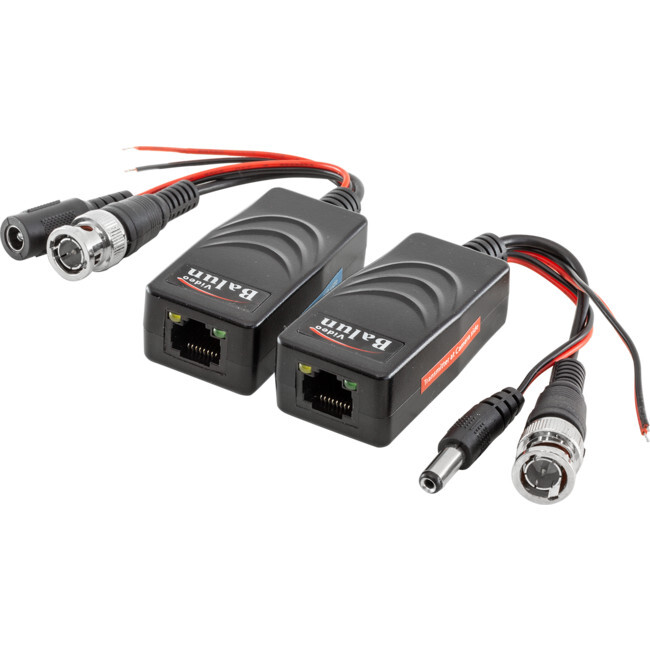

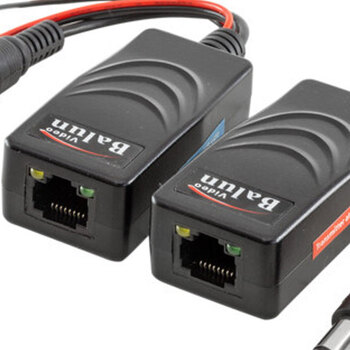

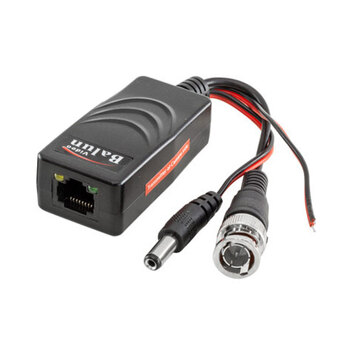

The Doss VPB45HD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable.

Features

  • Single Channel HD Video, Power & Data Transmitter & Receiver

  • Real-time transmission over UTP CAT5e/6

  • NTSC, PAL & SECAM video format compatible

  • Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras

  • Colour video max. distance up to 440m for HD-CVI camera

  • Colour video max up to 190m for Hikvision TVI camera

  • Colour video max up to 230m for TVT HD-TVI camera

  • Colour video max up to 300m for AHD camera

  • Data signal transfer up to 300m

  • BNC plug with extended 150mm mini-coax pigtail

  • RJ45 Jack for UTP cable

  • Built-in TVS (Transient Voltage Suppressor) for surge protection

  • Wave Filter Design, Anti-Static Design

  • Lightning protection design Grade: III

  • 60dB crosstalk and noise immunity

  • Exceptional interference rejection

(VPPB45HD)

Standard Consumer Warranty

The Doss VPB45HD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable. Features Single Channel HD Video, Power & Data Transmitter & Receiver Real-time transmission over UTP CAT5e/6 NTSC, PAL & SECAM video format compatible Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras Colour video max. distance up to 440m for HD-CVI camera Colour video max up to 190m for Hikvision TVI camera Colour video max up to 230m for TVT HD-TVI camera Colour video max up to 300m for AHD camera Data signal transfer up to 300m BNC plug with extended 150mm mini-coax pigtail RJ45 Jack for UTP cable Built-in TVS (Transient Voltage Suppressor) for surge protection Wave Filter Design, Anti-Static Design Lightning protection design Grade: III 60dB crosstalk and noise immunity Exceptional interference rejection
Model # VPPB45HD
Barcode # 9328202017925
Brand DOSS
Shipping Weight 0.1100kg
Shipping Width 0.060m
Shipping Height 0.020m
Shipping Length 0.030m
Shipping Cubic 0.000036000m3
Type Transmitter
