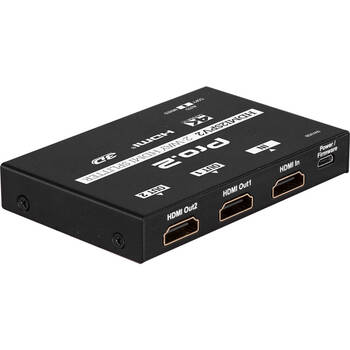

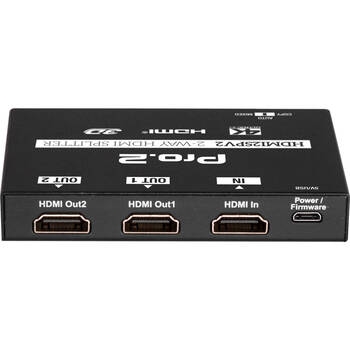

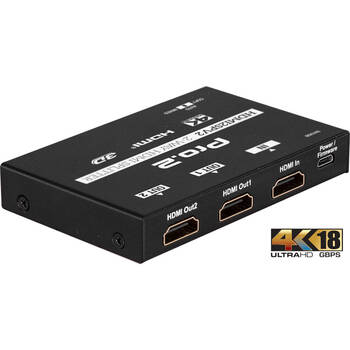

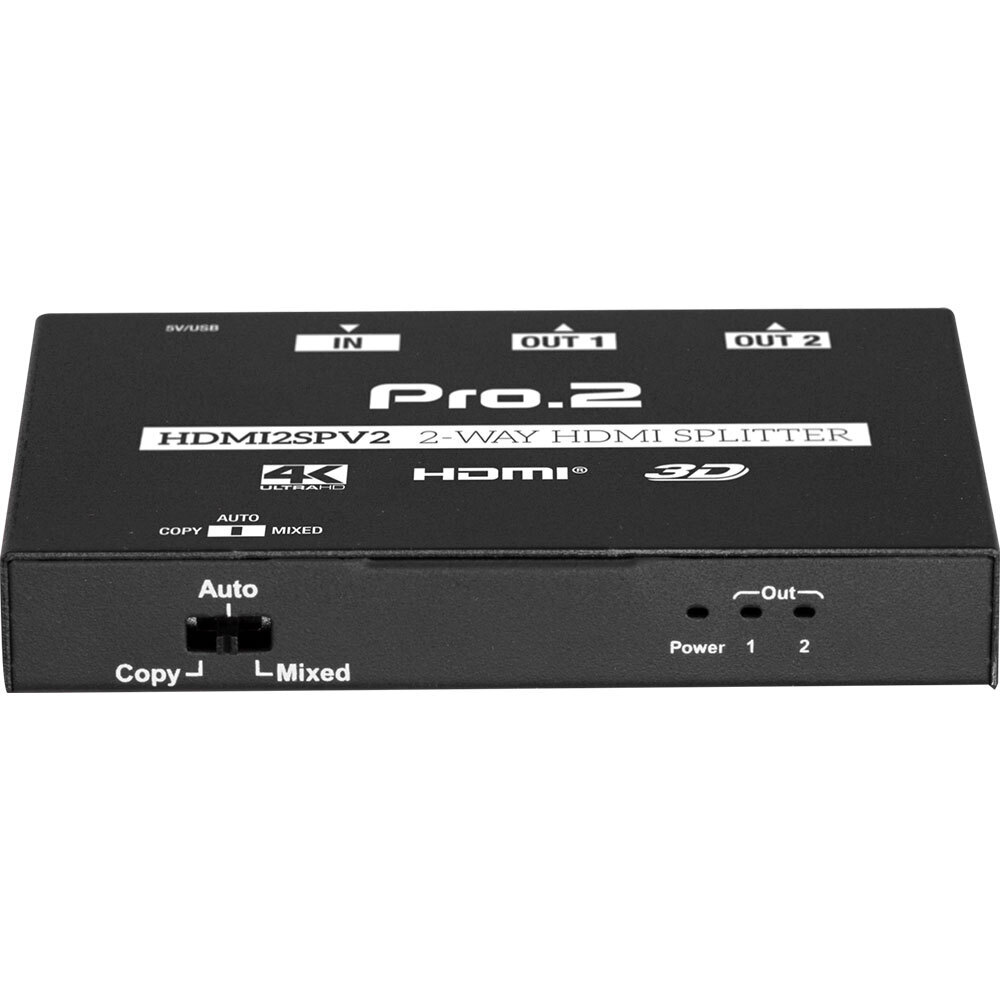

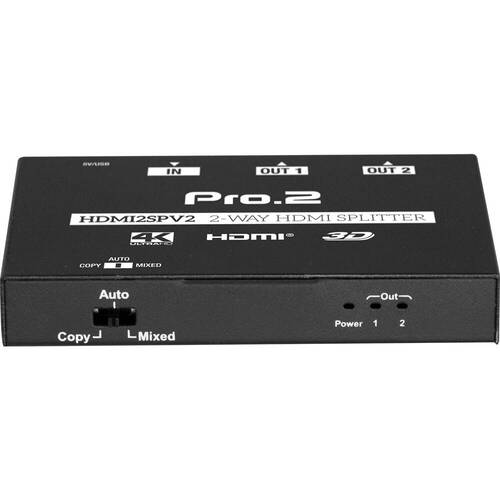

Pro.2 18gbps 2 Way HDMI Splitter

Excellent splitter

This item does exactly the job required. Easy to install at a great price.

Write a product review

Pro2's high quality HDMI splitters take a single input— Blu-ray, HD TV, PayTV (Foxtel), Xbox, PlayStation etc. — and split them to multiple outputs without any signal loss. This state of the art 4K HDMI 2.0 UHD splitter is capable of displaying resolutions up to 3840 x 2160 and is also ideal for today's 1080p 3D signals and is future proofed for many years to come.

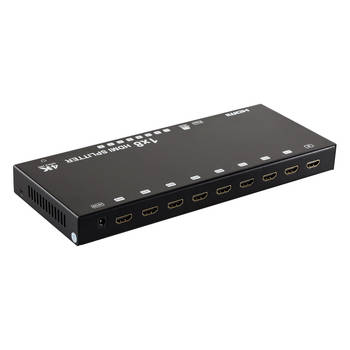

Our range provides an ideal solution from a simple home scenario to a massive 8 monitor commercial installation. Allmodels are built to last, constructed with a solid and robust metal casing. The Pro2 HDMI splitters are also powered, meaning they can help extend your cable runs by equalising your signals and re-clocking them before passing them onto the displays.

Built-In EDID
With their built-in EDID feature, our range of splitters will automatically downscale any 4K signal to 1080p if the display attached to the port can only handle 1080p without affecting any 4K capable display! This feature makes them pretty unique in the market.

Features

  • Slim design, great for hiding behind TVs
  • Up to 4K HDMI 2.0 UHD
  • Great for today's 1080p 3D
  • Supports 36 bit Deep Colour
  • Display resolutions up to 3840 x 2160
  • Powered for extended cable runs, equalising signals and re-clocking output
  • Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display
  • Ideal for a simple home setup up to a 8 monitor commercial installation
  • Robust metal case of solid construction

(HDMI2SPV2)

This item come with a 12 month warranty.

Pro2's high quality HDMI splitters take a single input— Blu-ray, HD TV, PayTV (Foxtel), Xbox, PlayStation etc. — and split them to multiple outputs without any signal loss. This state of the art 4K HDMI 2.0 UHD splitter is capable of displaying resolutions up to 3840 x 2160 and is also ideal for today's 1080p 3D signals and is future proofed for many years to come. Built-In EDID With their built-in EDID feature, our range of splitters will automatically downscale any 4K signal to 1080p if the display attached to the port can only handle 1080p without affecting any 4K capable display! This feature makes them pretty unique in the market. Features Slim design, great for hiding behind TVs Up to 4K HDMI 2.0 UHD Great for today's 1080p 3D Supports 36 bit Deep Colour Display resolutions up to 3840 x 2160 Powered for extended cable runs, equalising signals and re-clocking output Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display Ideal for a simple home setup up to a 8 monitor commercial installation Robust metal case of solid construction Specifications HDMI Inputs 1 Supports 3D / 4K x 2K HDCP Compliance v2.0 HDMI Resolutions 480p / 720p / 1080i /1080p @ 60 Hz / 4K x 2K @ 24 Hz 4K x 2K out @60G YUV4:4:4 Audio Formats LPCM / Dolby-AC3 / DTS 7.1 / DSD Data Transfer Speed 18 Gbps Input Video signal 5.0 Volts P-P (TTL) Single Link Video Amplifier Bandwidth 140 MHz Transmission Distance 15 metres using standard HDMI/26AWG cable Operating Temp. Range -15°C to 55°C (23°F to 95°F) Operating Humidity Range 5 to 90% RH (no condensation) HDMI Outputs 2 Power Supply (included) 5V 1A DC Dimensions (LxWxH) 93.6x61x15mm Weight 120g Power Consumption 1W This item come with a .

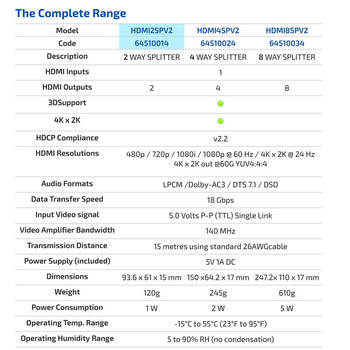

  • HDMI Inputs 1
  • Supports 3D / 4K x 2K
  • HDCP Compliance v2.0
  • HDMI Resolutions 480p / 720p / 1080i /1080p @ 60 Hz / 4K x 2K @ 24 Hz
  • 4K x 2K out @60G YUV4:4:4
  • Audio Formats LPCM / Dolby-AC3 / DTS 7.1 / DSD
  • Data Transfer Speed 18 Gbps
  • Input Video signal 5.0 Volts P-P (TTL) Single Link
  • Video Amplifier Bandwidth 140 MHz
  • Transmission Distance 15 metres using standard HDMI/26AWG cable
  • Operating Temp. Range -15°C to 55°C (23°F to 95°F)
  • Operating Humidity Range 5 to 90% RH (no condensation)
  • HDMI Outputs 2
  • Power Supply (included) 5V 1A DC
  • Dimensions (LxWxH) 93.6x61x15mm
  • Weight 120g
  • Power Consumption 1W
Model # HDMI2SPV2
Barcode # 9328202020055
Brand PRO2
Shipping Weight 0.2800kg
Shipping Width 0.150m
Shipping Height 0.060m
Shipping Length 0.100m
Shipping Cubic 0.000900000m3
Type HDMI Splitter
