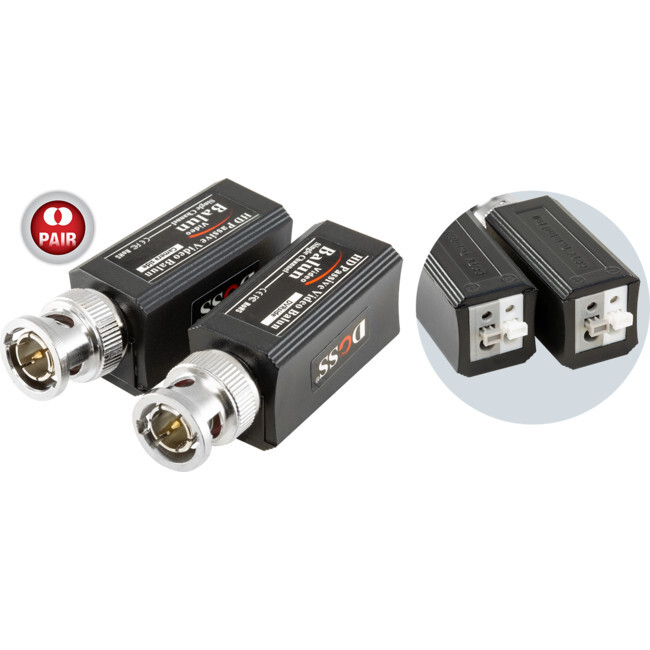

PUSH PIN BNC HD VIDEO BALUN MINI PASSIVE

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The DOSS Range of UTP Video Baluns allows you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable.

The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unshielded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported.

Features

  • Compatible with all HD-TVI, HD-CVI and AHD analogue camera

  • Single Channel Passive Video Transceiver

  • Full-motion colour video signal up to 400m (1300ft) and

  • monochrome (B&W) up to 600m (1950ft) via UTP cat5e/6

  • NTSC, PAL & SECAM video format compatible

  • Two push-pin terminals; tool-less installation

  • Male BNC connector

  • Exceptional interference rejection

  • Built-in TVS (Transient Voltage Suppressors) for surge protection

  • Lightning protection design Grade III

  • 50 dB crosstalk and noise immunity

  • Compact size and easy installation

  • ABS engineering plastic housing

(BVB4100PHD)

Standard Consumer Warranty
The DOSS Range of UTP Video Baluns allows you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable. The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unshielded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported. Features Compatible with all HD-TVI, HD-CVI and AHD analogue camera Single Channel Passive Video Transceiver Full-motion colour video signal up to 400m (1300ft) and monochrome (B&W) up to 600m (1950ft) via UTP cat5e/6 NTSC, PAL & SECAM video format compatible Two push-pin terminals; tool-less installation Male BNC connector Exceptional interference rejection Built-in TVS (Transient Voltage Suppressors) for surge protection Lightning protection design Grade III 50 dB crosstalk and noise immunity Compact size and easy installation ABS engineering plastic housing
Model # BVB4100PHD
Barcode # 9328202031235
Brand DOSS
Shipping Weight 0.0400kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.070m
Shipping Cubic 0.000350000m3
Type Video Balun
