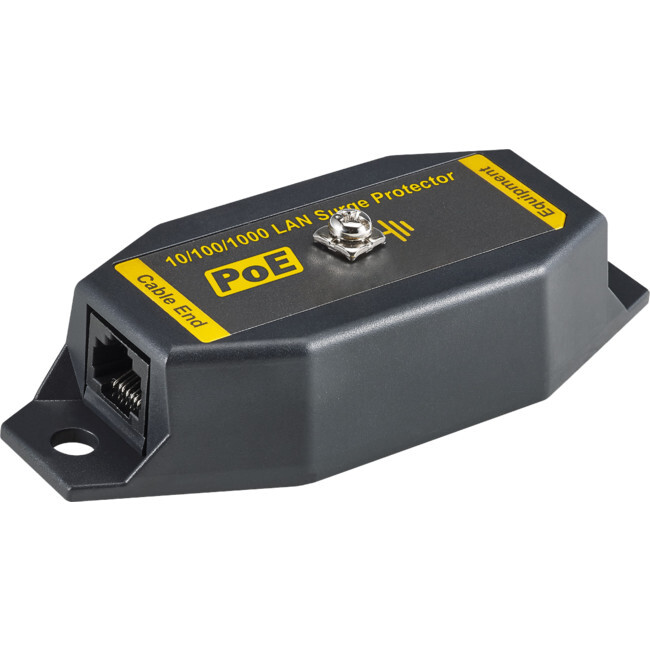

POE LAN SURGE PROTECTOR 10/100/1000 4 PAIR 6KV POE

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The SP06PG can be used for all kinds of LAN equipment, supporting the highest speeds (gigabit) and largest POE budgets including the latest 802.3bt. With IP CCTV and wireless access points being exposed to weather, ensure you place an SP06PG at the far ends of the cable runs, as close as possible to the hardware.

Features
10/100/1000 Base-T PoE LAN surge protection
IEEE802.3af/at/bt and 4-pair PoE compatible
Mid-Span and End-Span signature supported
RJ45 Jack to RJ45 Jack
6KV surge protection (IEC-61000-4-5)
4-pair Power and signal line protection

Specifications
Surge Protection Attack Time: 1 ns
Maximum Surge Voltage: 6KV
Surge Life: 30000 times surges at 6KV
Normal Resistance Across Cord: 10,000 MO
Surge Resistance: Approx. 0O
Power Passing Capability: Max. DC 60V, Up to 90W depending on the standard: Max. current 0.9A on data
Insertion Loss: Less than 0.5 dB
Return Loss (75 ohms): 16dB
Connectors Type: RJ45 Jack x 2 ( In - Out)

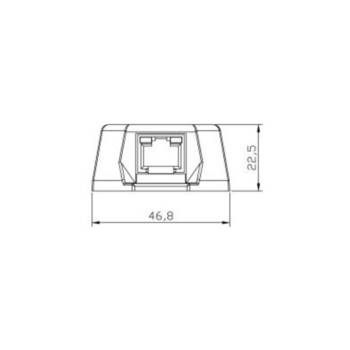

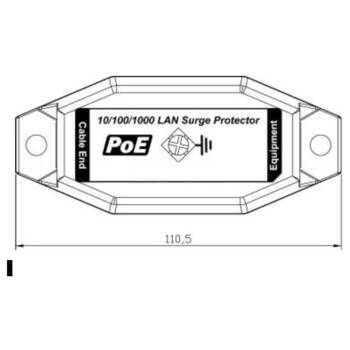

Dimensions Approx.: 46.8 x 22.5 x110.5 mm (WxLxH)
Weight: <50 g

(SP06PG)

Standard Consumer Warranty
The SP06PG can be used for all kinds of LAN equipment, supporting the highest speeds (gigabit) and largest POE budgets including the latest 802.3bt. With IP CCTV and wireless access points being exposed to weather, ensure you place an SP06PG at the far ends of the cable runs, as close as possible to the hardware. Features 10/100/1000 Base-T PoE LAN surge protection IEEE802.3af/at/bt and 4-pair PoE compatible Mid-Span and End-Span signature supported RJ45 Jack to RJ45 Jack 6KV surge protection (IEC-61000-4-5) 4-pair Power and signal line protection Specifications Surge Protection Attack Time: 1 ns Maximum Surge Voltage: 6KV Surge Life: 30000 times surges at 6KV Normal Resistance Across Cord: 10,000 MO Surge Resistance: Approx. 0O Power Passing Capability: Max. DC 60V, Up to 90W depending on the standard: Max. current 0.9A on data Insertion Loss: Less than 0.5 dB Return Loss (75 ohms): 16dB Connectors Type: RJ45 Jack x 2 ( In - Out) Dimensions Approx.: 46.8 x 22.5 x110.5 mm (WxLxH) Weight: <50 g
Model # SP06PG
Brand UNBRANDED
Shipping Weight 0.0800kg
Shipping Width 0.050m
Shipping Height 0.020m
Shipping Length 0.110m
Shipping Cubic 0.000110000m3
Type Surge Protector
