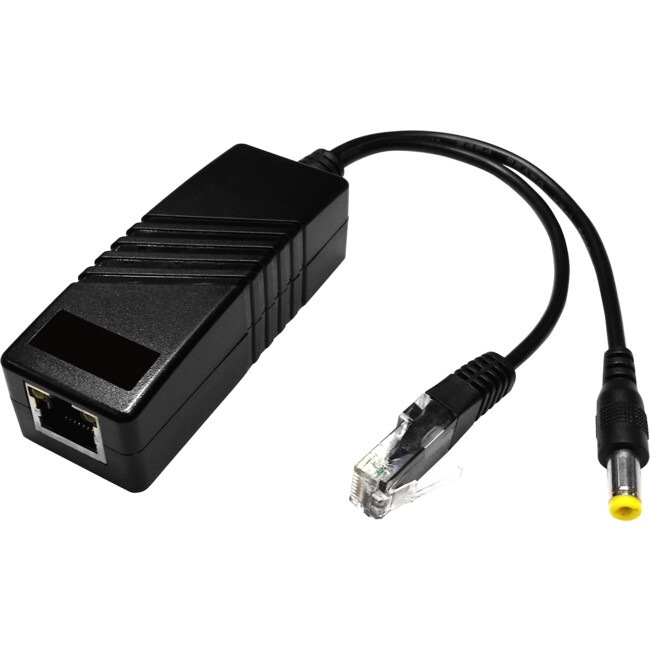

PASSIVE SINGLE POE SPLITTER DATA AND POWER DC12V 1.25A MAX

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The Doss POE1SP is a POE Splitter which splits 37-57V input from PoE switch into DC 12V and RJ45 data connector. It supplies power and transmits data to devices which do not support PoE power supply (such as IP camera). The product supports IEEE802.3af standard abd uses the transformer for isolation design, which gives you a more stable and secure solution for your system.

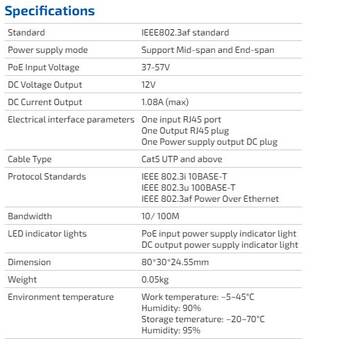

Features

  • Bandwidth: 10/100Mbps

  • Input Voltage: 37-57V

  • Input port: Supports Mid-Span (No. 4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.

  • Output Voltage: 12V

  • Output current: 1.08A (Max)

  • Standard: Supports IEEE802.3af

  • Isolation protection: Using the transformer for isolation design, more stable, more secure

  • Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection

(POE1SP)

Standard Consumer Warranty
The Doss POE1SP is a POE Splitter which splits 37-57V input from PoE switch into DC 12V and RJ45 data connector. It supplies power and transmits data to devices which do not support PoE power supply (such as IP camera). The product supports IEEE802.3af standard abd uses the transformer for isolation design, which gives you a more stable and secure solution for your system. Features Bandwidth: 10/100Mbps Input Voltage: 37-57V Input port: Supports Mid-Span (No. 4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections. Output Voltage: 12V Output current: 1.08A (Max) Standard: Supports IEEE802.3af Isolation protection: Using the transformer for isolation design, more stable, more secure Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection
Model # POE1SP
Barcode # 9328202018120
Brand DOSS
Shipping Weight 0.0700kg
Shipping Width 0.080m
Shipping Height 0.020m
Shipping Length 0.030m
Shipping Cubic 0.000048000m3
Type Splitter
