NETWORK SURGE PROTECTOR

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

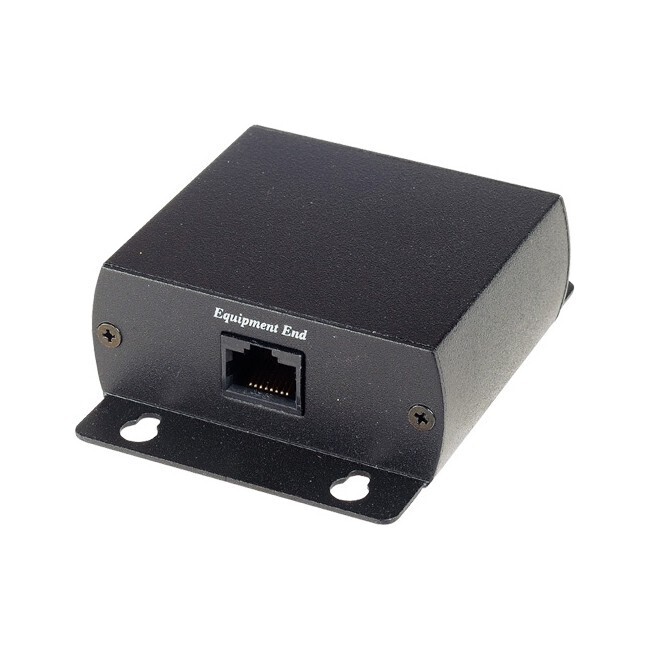

SP006 SURGE PROTECTOR

Specifications:

  • RJ45 Jack to RJ45 Jack, Hi Frequency for both CCTV and CATV use

  • Four Pairs protection

  • Surge Protection Attack Time: 1 ns

  • Maximum Surge Current: 4 KV

  • Surge Life:300 surges of 100Amps

  • Normal Resistance Across Coax: 10,000 M£[

  • BANDPASS: 0~1 GHz

  • Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps

  • Insertion Loss: Less than 0.2 dB

  • Return Loss (75 ohms):16dB

  • Return Loss (75 ohms): 16dB

  • Dimension: 87 x 67 x 27 mm

  • Weight: 134g

Features:

  • Protects equipment from high voltage surges from nearby lightning strikes.

  • Two stage protection: under 1ns-90V, over 10ns-12V.

  • Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR etc.

  • Protects UTP Twisted Pair transmission products

(SP006)

Standard Consumer Warranty
SP006 SURGE PROTECTOR Specifications: RJ45 Jack to RJ45 Jack, Hi Frequency for both CCTV and CATV use Four Pairs protection Surge Protection Attack Time: 1 ns Maximum Surge Current: 4 KV Surge Life:300 surges of 100Amps Normal Resistance Across Coax: 10,000 M£[ BANDPASS: 0~1 GHz Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps Insertion Loss: Less than 0.2 dB Return Loss (75 ohms):16dB Return Loss (75 ohms): 16dB Dimension: 87 x 67 x 27 mm Weight: 134g Features: Protects equipment from high voltage surges from nearby lightning strikes. Two stage protection: under 1ns-90V, over 10ns-12V. Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR etc. Protects UTP Twisted Pair transmission products
Model # SP006
Barcode # 9328202030283
Brand UNBRANDED
Shipping Weight 0.1800kg
Shipping Width 0.090m
Shipping Height 0.030m
Shipping Length 0.070m
Shipping Cubic 0.000189000m3
Type Surge Protector
