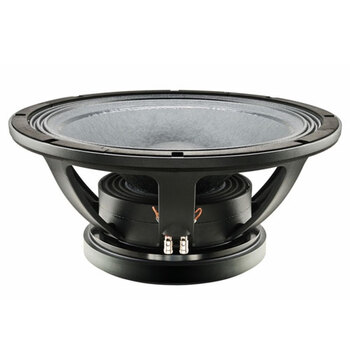

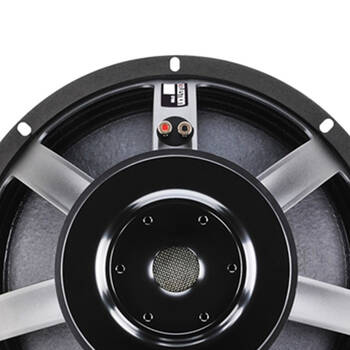

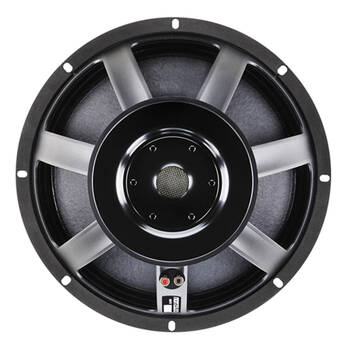

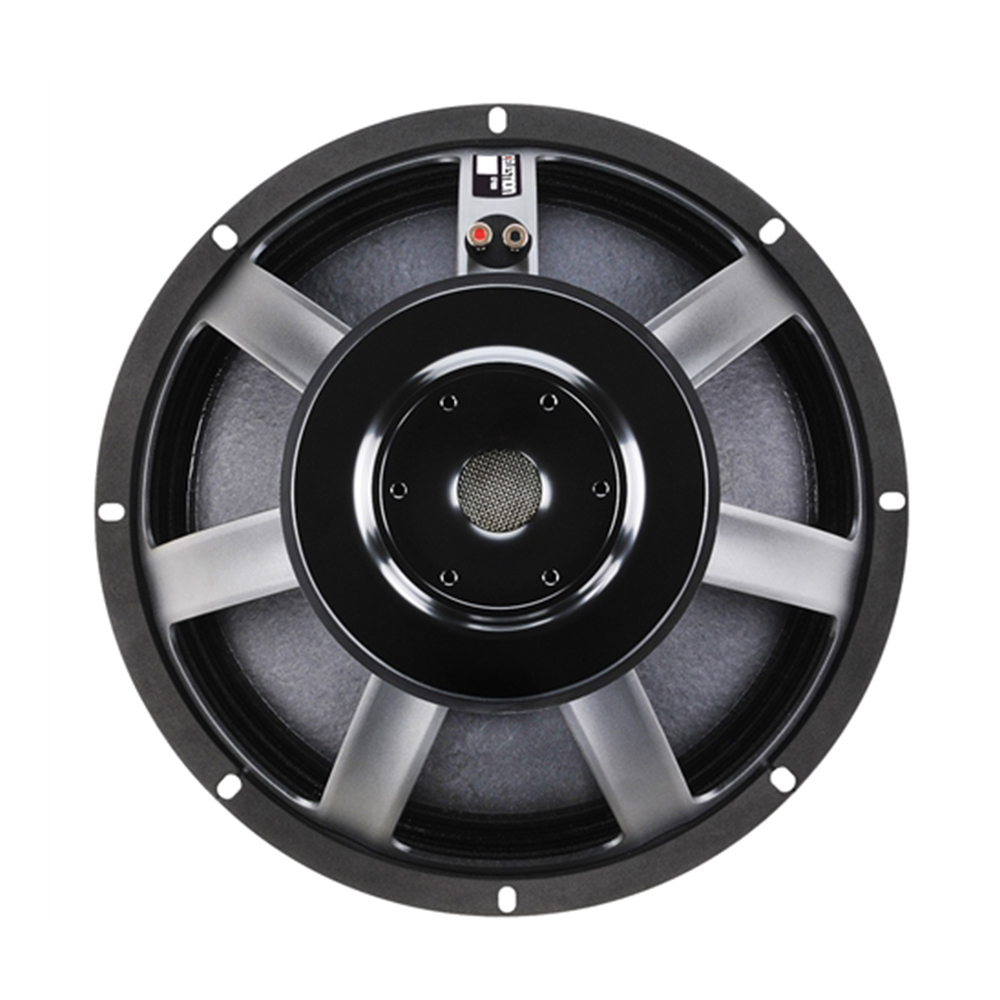

Celestion T5863: 18" 1000W Speaker 8 Ohm

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

18" ferrite magnet, cast aluminium chassis LF driver delivering 1000Wrms (AES Standard) power handling and 98dB sensitivity

4" high temperature, dual layer, Inside/Outside voice coil for higher efficiency, preventing performance loss through thermal compression

Triangulated coil reinforcement reduces moving mass, thereby increasing sensitivity, while maintaining a long Xmax

Finite element analysis optimised magnet assembly delivers remarkably low harmonic distortion and very high motor strength

Features:

  • Nominal diameter 457mm/18in

  • Nominal impedance 8O

  • Sensitivity 98dB

  • Frequency range 30Hz-2500Hz

  • Voice coil diameter 100mm/4in

  • Chassis type Cast Aluminium

  • Magnet type Ferrite

  • Magnet weight 3.18kg/112oz

  • Coil material Round copper

  • Former material Glass fibre

  • Cone material Carbon fibre loaded paper

  • Surround material Cloth-sealed

  • Suspension Single

  • Voice coil winding width 25mm/1in

Includes:

  • 1x Celstion 18" 1000W Speaker 8 Ohm

(28-CF1840JD)

Standard Consumer Warranty
  • Colour: Black

  • Power Rating: 1000W

Model # 28/CF1840JD
Barcode # 739894586351
Brand CELESTION
Shipping Weight 13.6000kg
Shipping Width 0.500m
Shipping Height 0.260m
Shipping Length 0.500m
Shipping Cubic 0.065000000m3
Type Speaker
