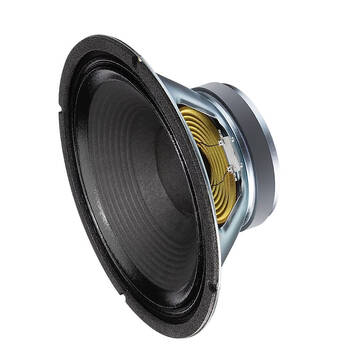

Celestion T3978: Classic Series 12" 80W Speaker 16OHM

The Classic Lead is a fine example of the sonic characteristics of a loudspeaker evolving as new materials become available.

Revolutionary in the late ’70s, a fibreglass voice coil former - capable of withstanding very high temperatures - was used to give the Classic Lead a muscular 80W power handling. This also increased barrel stiffness, affecting the way the cone vibrated and influencing cone break up.

The Classic Lead also sounds great clean, with that same articulation combining with high headroom to deliver a fluid, dynamic performance.

Features:

• 80W

• Chassis type Pressed steel

• DC resistance, re Available 6.9? or 11.8?

• Frequency range 80-5000Hz

• Magnet type Ceramic

• Magnet weight 50oz, 1.42kg

• Nominal diameter 12", 305mm

• Nominal impedance Available 8? or 16?

• Resonance frequency, Fs 85Hz

• Sensitivity 99dB

• Voice coil diameter 1.75", 55.5mm

• Cut-out diameter 11.1", 283mm

• Diameter 12.2", 309mm

• Magnet structure diameter 6.1", 156mm

• Mounting slot dimensions 0.31", 7.9mm Ø

• Mounting slot PCD 11.7", 297mm

• Number of mounting slots 4

• Overall depth135mm

Includes:

• 1x Celestion Classic Series 12" 80W Speaker 16OHM
