MD1 Pro Mono Passive Direct Box

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

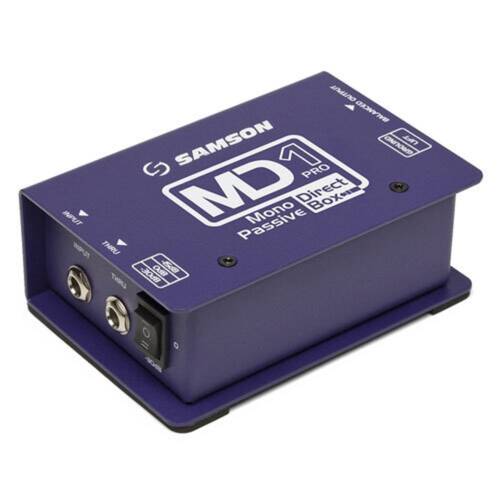

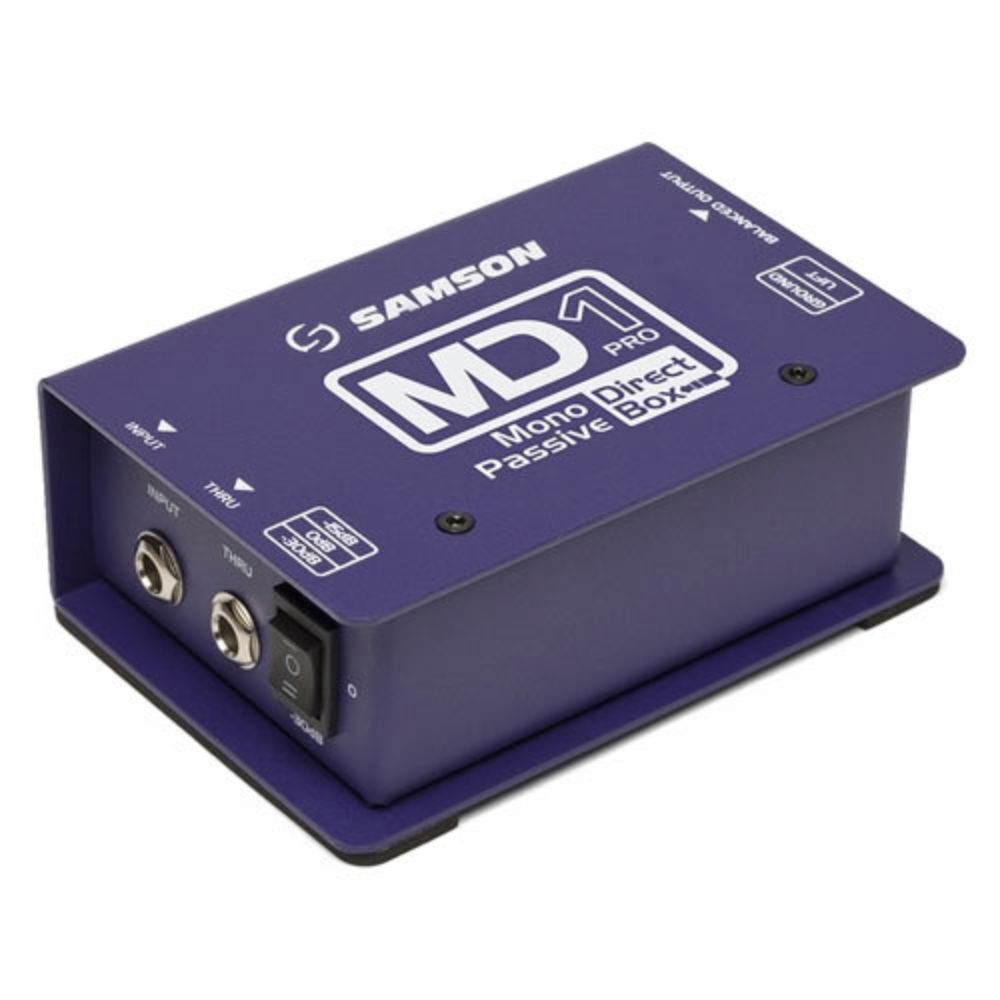

The Samson MD1 Pro Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality solutions for line, instrument and speaker level signals. The MD1 Pro allows balanced lines to be sent from your instrument long distances without inducing noise.

The MD1 Pro features Samson's STLX Mu-Metal shielded transformer that delivers an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD1 Pro's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs.

The MD1 Pro's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors.

Features:

  • All-metal, impact resistant design
  • Samson STLX Mu-Metal shielded transformer

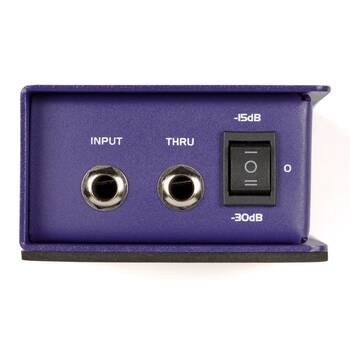

  • 3-position 0dB/-15dB/-30dB attenuation switch

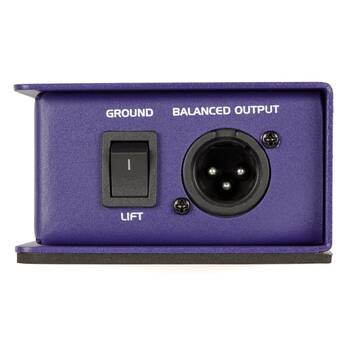

  • Ground Lift switch
  • 1/4" Input and Thru
  • Balanced XLR output
  • No Phantom or Battery power required
  • Frequency response of 18Hz–40kHz

Includes:

  • 1x MD1 Pro Mono Passive Direct Box

(29-MD1PRO)

Standard Consumer Warranty
  • Colour: Purple

Model # 29/MD1PRO
Barcode # 809164018087
Brand SAMSON
Shipping Weight 0.7800kg
Shipping Width 0.110m
Shipping Height 0.060m
Shipping Length 0.140m
Shipping Cubic 0.000924000m3
Type Passive Direct Boxes
