S Zone: 4 Zone Stereo mixer

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

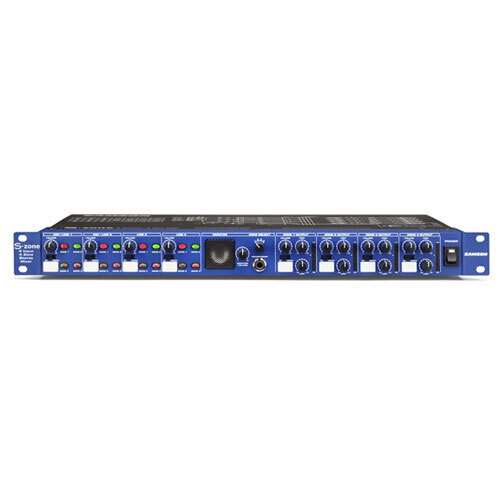

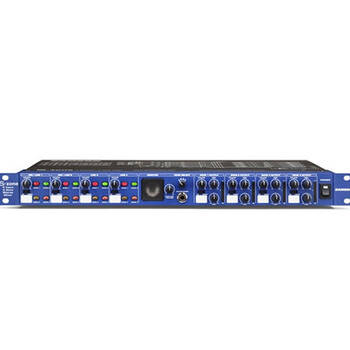

The S¥Zone is a professional quality 4-channel zone mixer that allows you to mix just about any audio signal including those from microphones, stereo CD and tape players, video players, and then lets you distribute an independent mix to any of the four stereo zones. Each of the input channels is assignable to any or all of 4 stereo zones outputs via easy to use, LED backlit switches.

The microphone inputs can be set to 'duck" the zone inputs so that the background music automatically turns down when an announcement is made.
On each the S¥Zone's outputs, you'll find a convenient two-band equalizer allowing you to adjust the overall tonal response of each zone.
A six-segment LED bar VU meter is present on all outputs providing a visual display of the level of each zone.

Features:

  • Four stereo Input Channels with a Volume control, Stereo/Mono switch and dedicated Zone assignment switches.

  • Feature a high quality microphone pre-amp with phantom power allowing you to connect just about any dynamic or condenser microphone.

  • High and Low equalizers and a six-segment LED VU Meter monitoring the output level.

  • Up to 3000 feet in distance is possible using a standard 100k linear taper potentiometer and three-conductor shielded wire.

  • Allows any signal from the microphone inputs, like an announcement or page, to automatically lower the background music level.

  • Alowing you to monitor the signal that is playing in any zone directly on the S¥Zone, without having to physically be in the room that the signal is playing in.

  • Ultra-low noise circuitry with high quality op-amps ensure superb audio fidelity.

Includes:

  • 1x S Zone: 4 Zone Stereo Mixer

(29-SZONE)

Standard Consumer Warranty
  • Colour: Purple/Black

  • Dimensions approx.: 482.6 x 188 mm

  • Weight: 2.3kg

Model # 29/SZONE
Barcode # 809164004622
Brand SAMSON
Shipping Weight 4.2600kg
Shipping Width 0.350m
Shipping Height 0.090m
Shipping Length 0.530m
Shipping Cubic 0.016695000m3
Type Purple
