Marantz Professional PMD-750 Digital Wireless Camera-Mount System

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

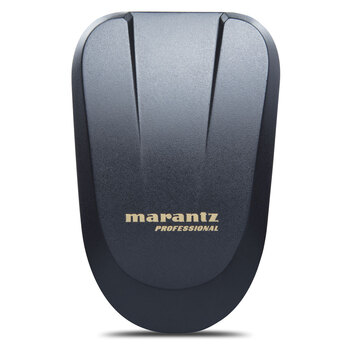

Designed for professional DSLR filmmakers, the Marantz Professional PMD750 Digital Wireless Camera-Mount System is compact and simple to operate.

The lightweight build is perfect for camera and rig-mounting, but rugged enough for daily field use.

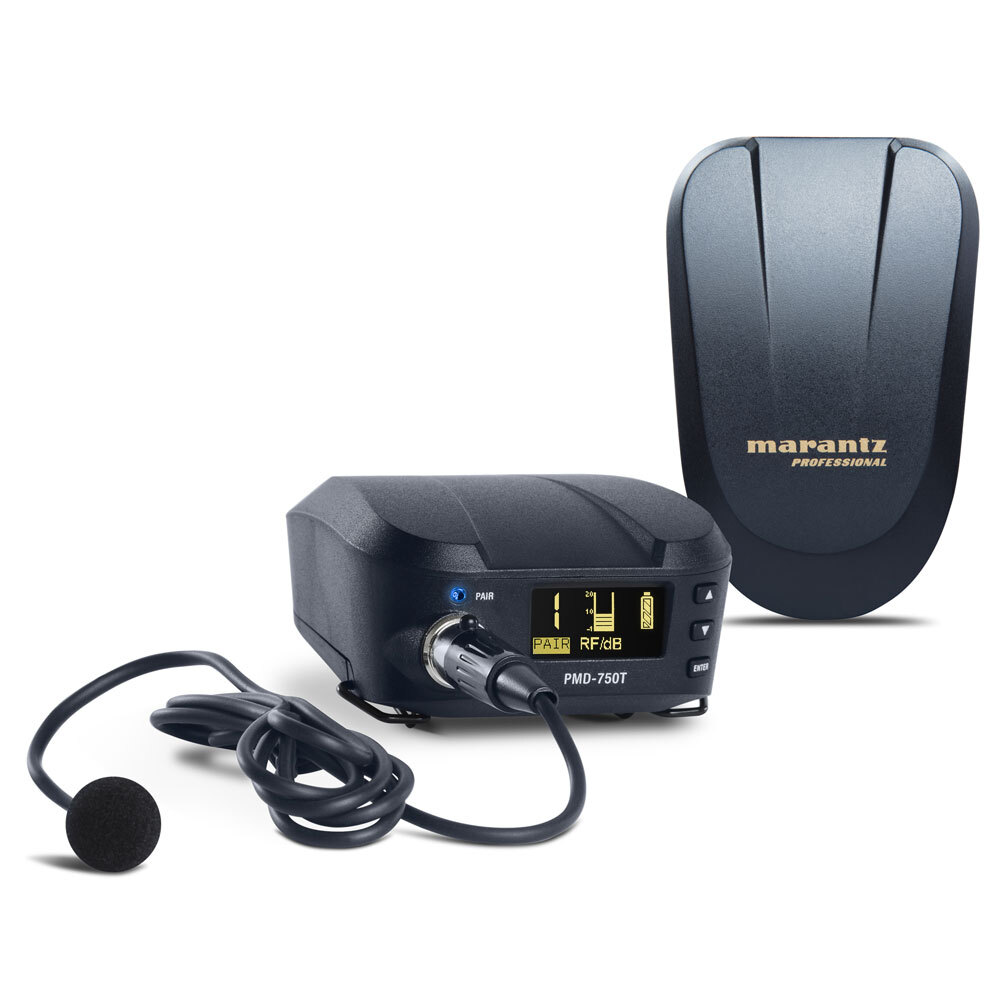

The PMD-750 system includes everything needed to get up and running…PMD-750T beltpack transmitter, PMD-750R camera-mount receiver, omnidirectional lavalier microphone with two styles of windscreens, and receiver output cable.

The system also features locking 4-pin mini-XLR input and output jacks for secure connectivity, robust beltclip on the transmitter, and secure hot shoe mount on the receiver.  The user interface is simple to use, and the OLED screens on the components are easily readable outdoors in sunlight.

The apex of the feature list is the ability of the PMD-750R receiver to pair with two separate transmitters.

The PMD-750TA plug-on transmitter for dynamic or battery-operated condenser wired microphones is available separately.

The PMD-750T beltpack transmitter is also available as a separate item, ready to expand the PMD-750’s versatility.

The system is perfect for any type of DSLR shooting requiring remote microphones, such as interviews, special events, ENG, and corporate trainings.

Features:

  • Complete 2.4GHz portable wireless system

  • Compact, innovative design

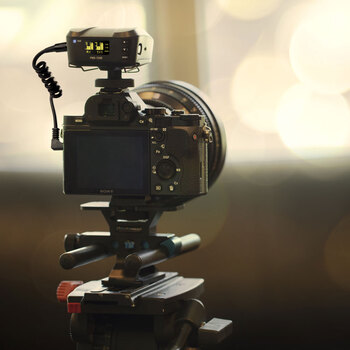

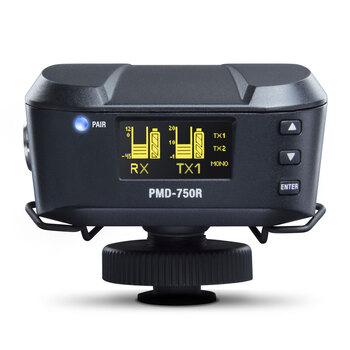

  • PMD-750R receiver mounts to DSLR camera hot shoe

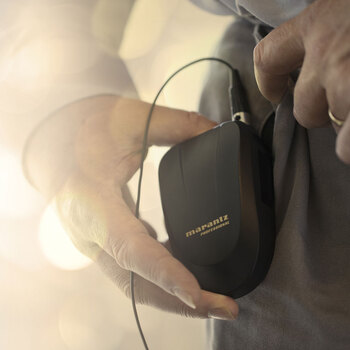

  • PMD-750T beltpack transmitter with robust belt clip

  • Receiver can pair to two transmitters for expandability

  • System includes lavalier mic, foam & fuzzy windscreens, and receiver output cable

  • Simple, easy to use user interface

  • Locking 4-pin mini-XLR input and output jacks

  • (2) AA battery operation

  • PMD-750TA plug-on transmitter available separately

  • Additional PMD-750T beltpack transmitter available separately

Includes:
Digital Wireless Camera-Mount System

(26-PMD750)

This item comes with a 12-month warranty.

Audio Performance
Frequency Spectrum: 2.401 - 2.483 GHz
Dynamic Range: > 100 dB
THD: < 0.2 %, typical
Latency: 4.5 m
Operating Range: Up to 100' (31m)

Beltpack Transmitter
Frequency Response: 50 Hz - 18 kHz
Maximum Input Level: -20 dB
Bias Voltage: 5V (for condenser mics)
Input Impedance: 10 kΩ
Power: (2) AA alkaline batteries
Dimensions (width x depth x height): 2.6” x 4.0” x 1.6” (65 x 102 x 40mm)
Weight: 82g

Receiver
Frequency Response: 50 Hz - 18 kHz
Pairing Bands: 16 channels
Audio Quality: Uncompressed 96 kHz/24-bit
Operating Temperature: 14° to 131° F (-10° to 55° C)
Maximum Output Level: -12 dB
Output Impedance: 300 Ω
Power: (2) AA alkaline batteries
Dimensions (width x depth x height): 2.6” x 4.0” x 2.2” (65 x 102 x 55mm)
Weight: 90

Lavalier Microphone
Frequency Response: 20 Hz - 20 kHz
Output Impedance: 3 kΩ
Pattern: Omnidirectional
Type: Electret Condenser
Sensitivity: -38 dB, ± 3 dB
Equivalent Noise: 25 dBA
Maximum SPL Level: 130 dB
Dimensions: Cable length 41.3" (1050mm)
Weight: 16g

Model # PMD750
Barcode # 694318023501
Brand MARANTZ PROFESSIONAL
Shipping Weight 0.4800kg
Shipping Width 0.290m
Shipping Height 0.160m
Shipping Length 0.350m
Shipping Cubic 0.016240000m3
