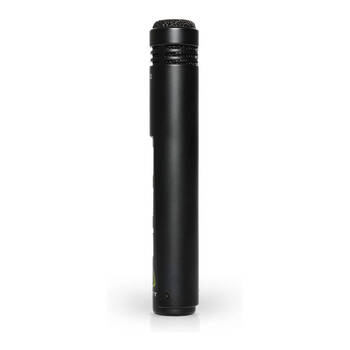

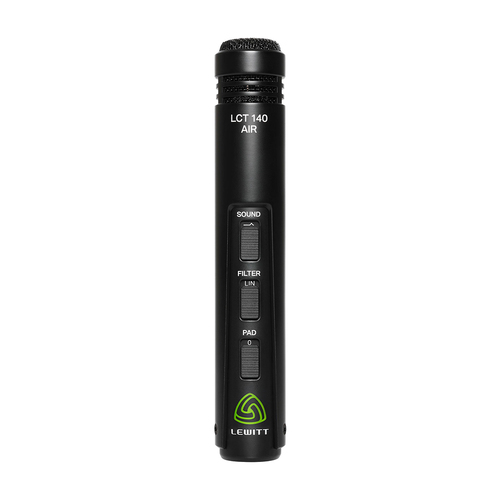

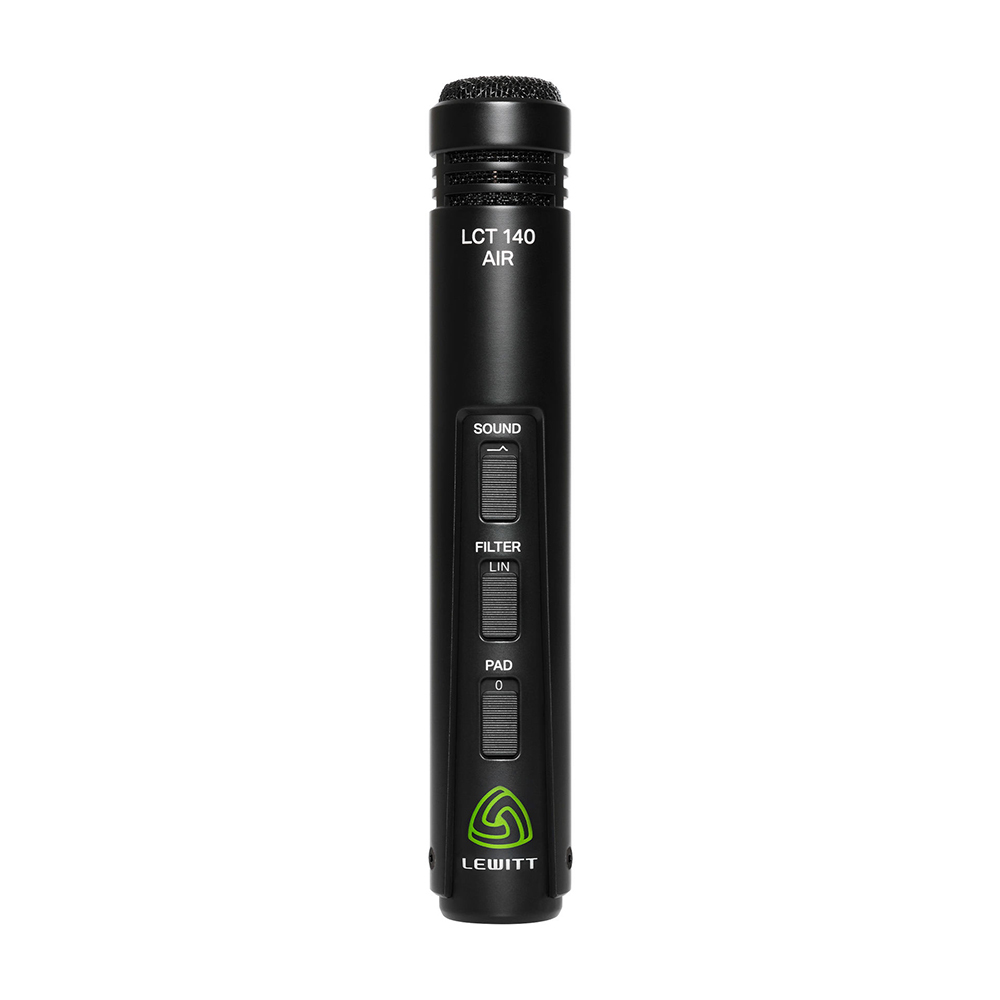

Lewitt Audio LCT 140 AIR Condenser Small Diaphragm Mic

LCT 140 AIR Condenser Microphone

Small diaphragm condenser microphone
Choose between two distinct sound characteristics
Great for acoustic guitar and drums
Excellent transient response
Cardioid polar pattern

Two switchable sound characteristics, AIR or FLAT?

AIR delivers an open, sparkling character. The right choice if you need great sound without spending time on post-production. FLAT provides a linear frequency response for “as-it-is” reproduction of drums, strings, acoustic guitars, and choirs. It is perfect if you aim for realistic sonic images. Check out the sound samples and hear for yourself.

Technical Specifications:

  • Type: Condenser, permanently polarized

  • Acoustical operating principle: Pressure gradient transducer

  • Transducer Ø: 17 mm, 0.67 in

  • Polar pattern: Cardioid

  • Sensitivity: 14.6 mV/Pa, -36.7 dBV/Pa

  • Equivalent noise level: 20 dB (A), cardioid

  • Max. SPL for 0.5 % THD: 135 dBSPL

  • Dynamic range: 115 dB (A)

  • Pre-attenuation pad: 0 dB - 12 dB

  • Low-cut filter, linear : 80 Hz (12 dB/oct)

  • Internal impedance: 173 O

  • Rated load impedance: 1000 O

  • Supply voltage: 48 V ± 4 V

  • Current consumption: 7.2 mA

  • Connector: Gold plated 3-pin XLR

  • Microphone dimensions: 24 dia. x 140 mm, 0.9 dia. x 5.5 in

Microphone net weight: 66 g, 2.3 oz

Microphones measured according to: IEC 60268-4 | Phantom power according to: IEC 61938 | Noise measurement according to: IEC 60268-1

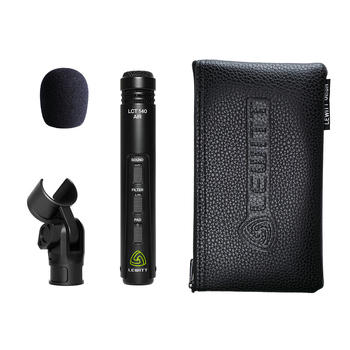

Includes:
LCT 140 AIR Condenser Microphone
Windscreen
Microphone clip
Transport bag

(58-LCT140AIR)

Standard Consumer Warranty
Model # 58/LCT140AIR
Barcode # 847986002044
Brand LEWITT AUDIO
Shipping Weight 0.3600kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.250m
Shipping Cubic 0.003000000m3
