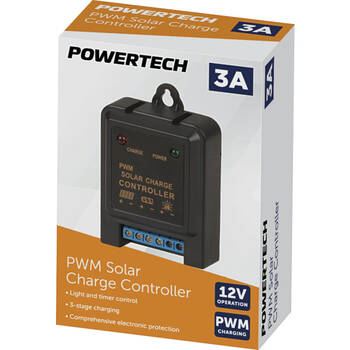

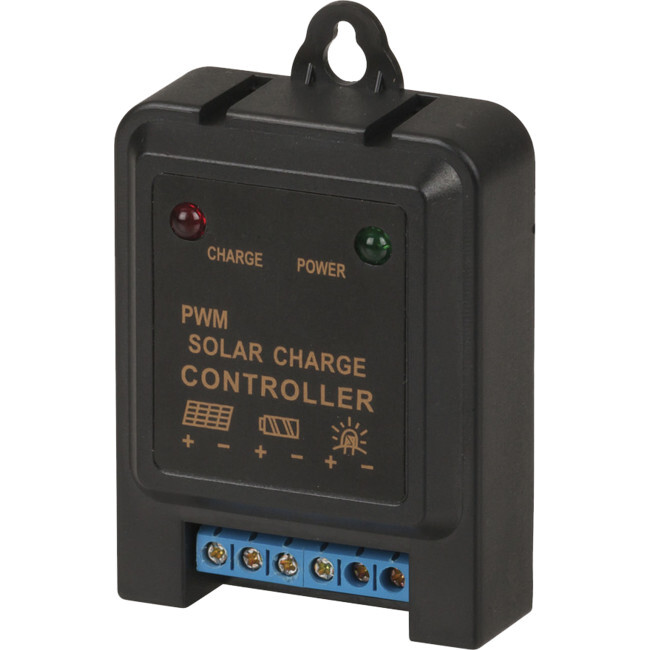

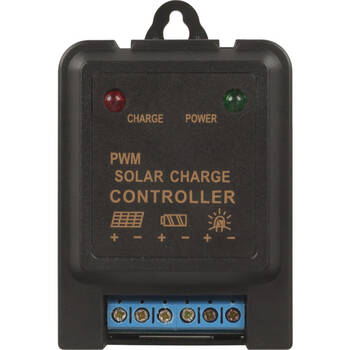

MINIATURE 12V SOLAR CONTROLLER
Miniature 12V 3A PWM Solar Charge Controller
This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connectedsolar panel. It features light and timer control, similar tostreet lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.
Features: - Red charge LED indicator
- Green power LED indicator
- Hang hook
- Battery voltage automatic identification
- PWM charging mode
- Comprehensive electronic protection
Specifications:
Rated Voltage: 12V
Strong Charging Pressure: 14.8V
Equilibrium Charging: 14.5V
Float Charging Pressure: 13.7V
Under Voltage: 10.8V
Under Recover Voltage: 13V
Non–Load Current: ≤6mA
Charging Circuit Voltage drop: ≤0.2V
Discharge Circuit Voltage drop: ≤0.1V
Specifications
| DC Voltage : 12.0V |
| IP Rating : 22 |
| Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects |
| Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg |
| Width : 52.0mm |
| Height : 22.0mm |
| Depth : 80.0mm |
| Weight : 33.0kg |
| Charge Controller Technology : Pulse Width Modulated (PWM) |
| Max Charging Current : 3.0A |
| Max Load Current : 3.0A |
Includes:
1 x Solar Controller
(MP3762)
Standard Consumer Warranty
| Model # | MP3762 |
| Barcode # | 9319236750346 |
| Brand | POWERTECH |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.003000000m3 |
| Type | Solar Charge Controller |
