MINI PASSIVE BNC BALUN PUSH PIN TERMINAL HD VERSION

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The BVB4201PLHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. It is compatible with all HD-TVI, HD-CV Iand AHD analogue camera.

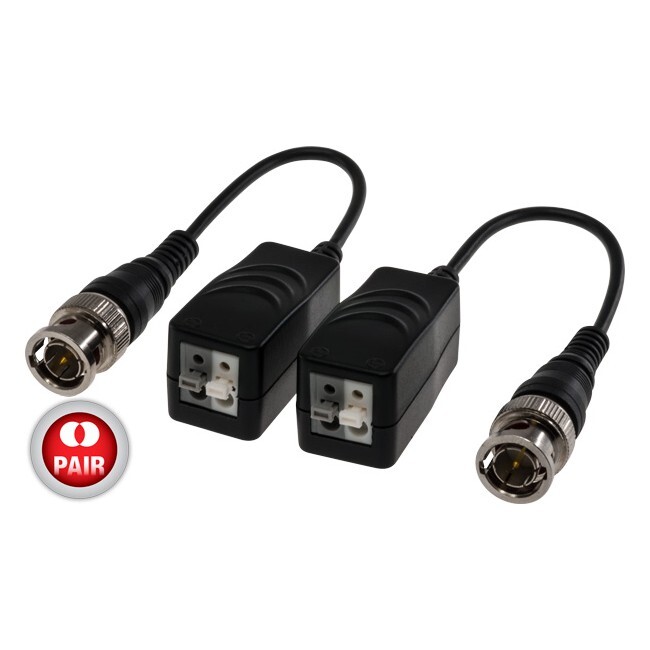

The BVB4201PLHD has a mini-coax pigtail lead which allows quick mounting onto fixed cameras and in-camera mounting in most dome cameras. Push-pin terminal block allows the tool-less connection of UTP cable output. Used in Pairs, the BVB4201PLHD eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the BVB4201PLHD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. It has built-in surge suppressor to protect video equipment against damaging voltage spikes.

Features
Real-time transmission over UTP cat 5e/6
No power required
Compatible with NTSC, PAL & SECAM video format
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras
HD-CVI 720P: 440m, 1080P: 220m over UTP cat5e/6
HD-TVI 720P: 190m, 1080P: 190m over UTP cat5e/ 6
AHD 720P: 300m, 960P: 240m, 1080P: 220m over UPT cat5e/ 6
BNC plug with extended 150mm mini-coal pigtail
Reliable tool-less UTP push-pin terminal block
Built-in TVS (Transient Voltage Suppressor) for surge protection
Wave Filter Design, Anti-Static Design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing

(BVB4201PLHD)

Standard Consumer Warranty
The BVB4201PLHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. It is compatible with all HD-TVI, HD-CV Iand AHD analogue camera. The BVB4201PLHD has a mini-coax pigtail lead which allows quick mounting onto fixed cameras and in-camera mounting in most dome cameras. Push-pin terminal block allows the tool-less connection of UTP cable output. Used in Pairs, the BVB4201PLHD eliminates costly and bulky coaxial cable. The superior interference rejection and low emissions of the BVB4201PLHD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. It has built-in surge suppressor to protect video equipment against damaging voltage spikes. Features Real-time transmission over UTP cat 5e/6 No power required Compatible with NTSC, PAL & SECAM video format Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras HD-CVI 720P: 440m, 1080P: 220m over UTP cat5e/6 HD-TVI 720P: 190m, 1080P: 190m over UTP cat5e/ 6 AHD 720P: 300m, 960P: 240m, 1080P: 220m over UPT cat5e/ 6 BNC plug with extended 150mm mini-coal pigtail Reliable tool-less UTP push-pin terminal block Built-in TVS (Transient Voltage Suppressor) for surge protection Wave Filter Design, Anti-Static Design Lightning protection design Grade: III 60 dB crosstalk and noise immunity Exceptional interference rejection ABS engineering plastic housing
Model # BVB4201PLHD
Barcode # 9328202017871
Brand DOSS
Shipping Weight 0.0600kg
Shipping Width 0.040m
Shipping Height 0.020m
Shipping Length 0.020m
Shipping Cubic 0.000016000m3
Type Video Balun
