Ir InfraRed Remote Control Extender Wall Plates KIT

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

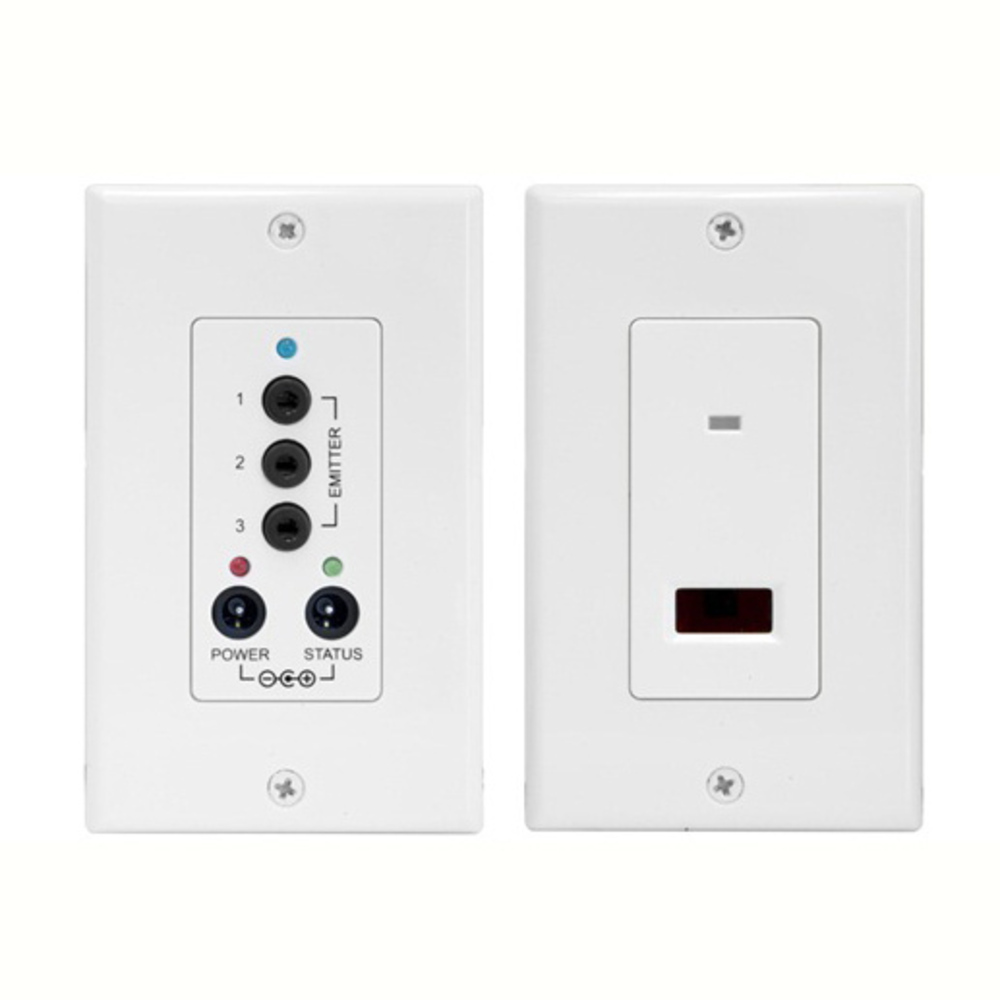

The KGE-IRS6A IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/Video components.

With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard single gang electrical box using deco cover plates.

In-wall IR Connecting Block:

  • Three emitter output connections

  • Convenient IR confirmation LED

  • Status power connector with LED indicator

  • Power input connector with LED indicator

  • Large detachable IR receiver connection at the back

NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.

(KGE-IRS6A)

This Item comes with 12 Month Warranty

The KGE-IRS6A IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/Video components. With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard single gang electrical box using deco cover plates. In-wall IR Connecting Block: Three emitter output connections Convenient IR confirmation LED Status power connector with LED indicator Power input connector with LED indicator Large detachable IR receiver connection at the back Specifications: Dimensions: 70 (W) x 114 (H) x 40 (D) mm Weight: 56gr In-wall IR Receiver Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room. Dual colour LED (Green for system status/ Blue for talk back) Ultra-thin design mounts to any J-box or P-ring Wideband IR receives signals from many types of remotes Specifications: Receive frequency range: 34 KHz to 40 KHz Transmit frequency: 38 KHz Power: 12 V DC, 30mA max. Status Power: 12 V DC, 3mA max. Dimensions: 70 (W) x 114 (H) x 16 (D) mm Weight: 36gr Range: On-axis: 16.8m to 24.4m 30° off axis: 9.1m to 16.8m Kit includes: In-wall IR Connecting Block In-wall IR receiver Dual IR emitter Single IR emitter Switch mode power supply NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.

Specifications:

  • Dimensions: 70 (W) x 114 (H) x 40 (D) mm

  • Weight: 56gr

  • In-wall IR Receiver

  • Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room.

  • Dual colour LED (Green for system status/ Blue for talk back)

  • Ultra-thin design mounts to any J-box or P-ring

  • Wideband IR receives signals from many types of remotes

Specifications:

  • Receive frequency range: 34 KHz to 40 KHz

  • Transmit frequency: 38 KHz

  • Power: 12 V DC, 30mA max.

  • Status Power: 12 V DC, 3mA max.

  • Dimensions: 70 (W) x 114 (H) x 16 (D) mm

  • Weight: 36gr

  • Range:

  • On-axis: 16.8m to 24.4m

  • 30° off axis: 9.1m to 16.8m

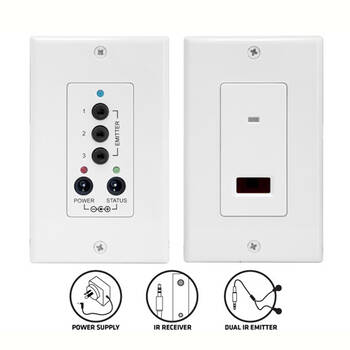

Kit includes:

  • In-wall IR Connecting Block

  • In-wall IR receiver

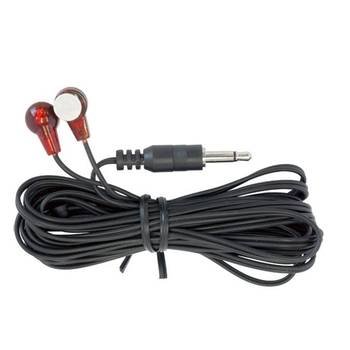

  • Dual IR emitter

  • Single IR emitter

  • Switch mode power supply

Model # KGE-IRS6A
Barcode # 0045399184153
Brand KGE
Shipping Weight 0.3000kg
Shipping Width 0.180m
Shipping Height 0.120m
Shipping Length 0.075m
Shipping Cubic 0.001620000m3
Type All Remotes IR extender
