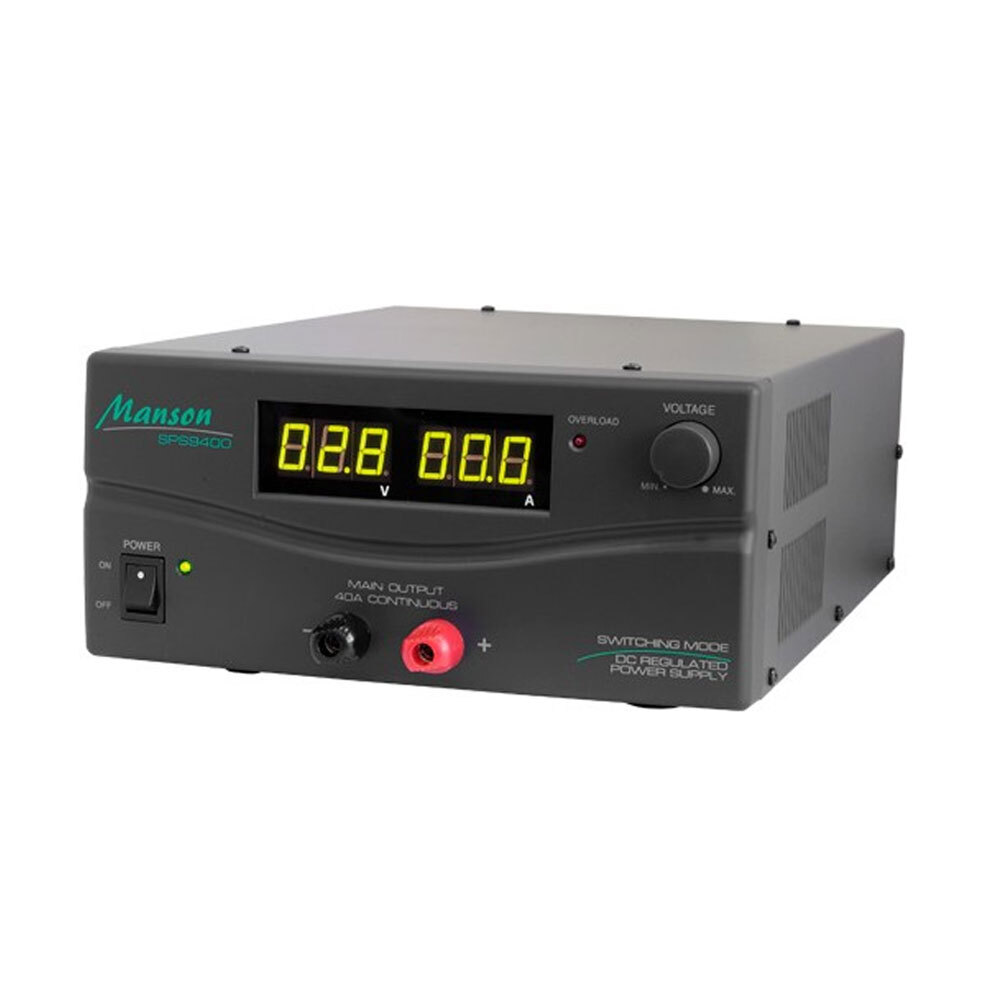

Manson 40Amp 3-15V DC Power Supply Digital Bench Top Dark Grey

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Manson 40Amp 3-15V DC Power Supply Digital Bench Top Dark Grey provides high current 40 Amps output in a lightweight and compact size case. They are suitable for a wide range of uses, such as radio equipment, and are ideal for high power car stereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, over-temperature, and over-voltage protection are standard.

Features:

  • 40A current output

  • High efficiency

  • Adjustable output voltages 3V to 15V

  • Fixed voltage mode at 13.8V

  • Lightweight and small size

  • Overload temperature protection

  • Current fold-back circuit with LED indicator prevents overloading

  • Overvoltage protection at 16.5V

  • Variable speed thermally controlled fan

  • High RFI stability

(SPS9400)

This item comes with a 12-month warranty.

  • Colour: Dark Grey

  • Variable Output Voltage: 3-15 VDC

  • Fixed Output Voltage Mode: 13.8 VDC

  • Rated Output Current: 40A

  • Ripple and Noise (P-P): 50mV

  • Load Regulation: 200mV

  • Line Regulation: 50mV

  • Input Voltage: 230VAC / 50Hz

  • Efficiency: > 78%

  • Meter Type: LED Meter

  • V meter Range: 3 digit display

  • A meter Range: 3 digit display

  • Meter Accuracy: 1% + 2 Digits

  • Protection Devices: Overload, Short Circuit, Over Temperature, OVP

  • Cooling System: Variable Speed Thermally Control Fan

  • Approvals: CE EN61558, EN60950, EN55022, EN55011

  • Dimensions Approx.: 22 x 30 x 11 cm (WxDxH)

  • Weight Approx.: 3.5 Kg

  • Remarks: Power factor correction > 0.95 at optimal load

Model # SPS9400
Brand MANSON
Shipping Weight 4.3000kg
Shipping Width 0.320m
Shipping Height 0.130m
Shipping Length 0.240m
Shipping Cubic 0.009984000m3
Type Power Supply
