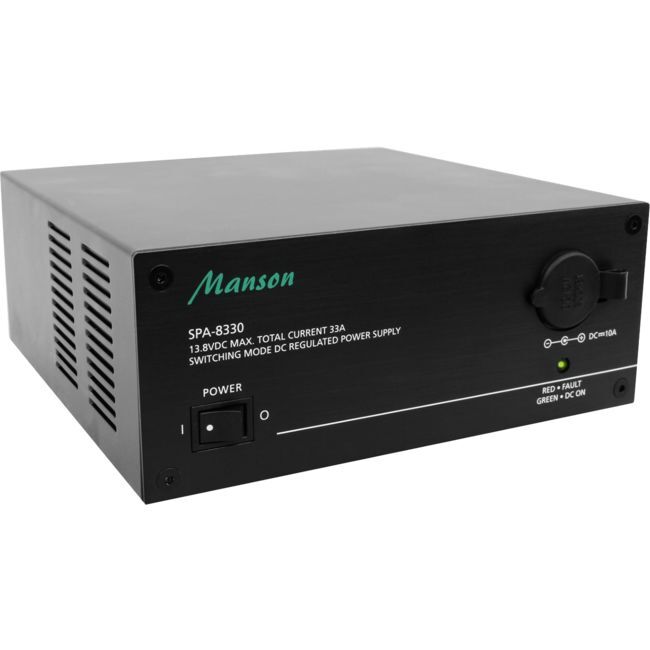

Manson 33A Cont 36A Max 13.8VDC Power Supply Bench Top Black

This item comes with a 12-month warranty.

Manson 33A Cont 36A Max 13.8VDC Power Supply Bench Top Black is an advanced new circuit design makes this power supply with higher efficiency, regulated output and specifically suitable for use with radio equipment. The power supply provides a stable, clean and RFI filtered suppressed and filtered DC source. The smart fan speed control program will adapt the just the right speed (0-100%) to ensure a quiet and safe operation at various ambient temperature and power output. The isolated ground design allows parallel and series connection of power supplies. The constant current limiting,over-temperature, over-voltage protections offer reliability and protection to the power supplies and the load. Features High RFI immunity Wide Range AC input voltage Quiet cooling fan variable speed operation Overload, Short circuit, Over temperature protection by constant current Power Factor Control Isolated Ground User-adjustable fine-tune setting (10 - 15V) Binding post and cigar socket DC output Output Voltage: Fixed 13.8VDC ±0.5V Colour: Black AU/NZ Plug Output Current (Main Output Posts): 33A Continuous, 36A Max. (30sec ON / 30sec OFF) Output Current (Main Output Posts + Cigar Socket): 33A Continuous, 36A Max. (30sec ON / 30sec OFF) Ripple & Noise: ≤50mVp-p 5mVrms Load Regulation (10-100% Load): ≤50mV Line Regulation (100-264VAC Variation): ≤20mV Input Voltage: 110 - 240VAC 50/60Hz~ Indicators: Red Color Fault LED Indicator Cooling System: Fan Cool (0 to full speed) Operating Temperature: 0 - 40°C Dimensions Approx.: 20 x 21.3 x 8 cm Weight Approx.: 2.6 kg Protection: Overload Over Temperature Short Circuit Protection (by Constant Current Circuitry and Output Over-Voltage Protection) Approvals: CE EMC: EN 55022 LVD: EN 60950

• Output Voltage: Fixed 13.8VDC ±0.5V

• Colour: Black

• AU/NZ Plug

• Output Current (Main Output Posts): 33A Continuous, 36A Max. (30sec ON / 30sec OFF)

• Output Current (Main Output Posts + Cigar Socket): 33A Continuous, 36A Max. (30sec ON / 30sec OFF)

• Ripple & Noise: ≤50mVp-p 5mVrms

• Load Regulation (10-100% Load): ≤50mV

• Line Regulation (100-264VAC Variation): ≤20mV

• Input Voltage: 110 - 240VAC 50/60Hz~

• Indicators: Red Color Fault LED Indicator

• Cooling System: Fan Cool (0 to full speed)

• Operating Temperature: 0 - 40°C

• Dimensions Approx.: 20 x 21.3 x 8 cm (WxDxH)

• Weight Approx.: 2.6 kg

Protection:

• Overload

• Over Temperature

• Short Circuit Protection

• (by Constant Current Circuitry and

• Output Over-Voltage Protection)

Approvals:

• CE EMC: EN 55022

• LVD: EN 60950
