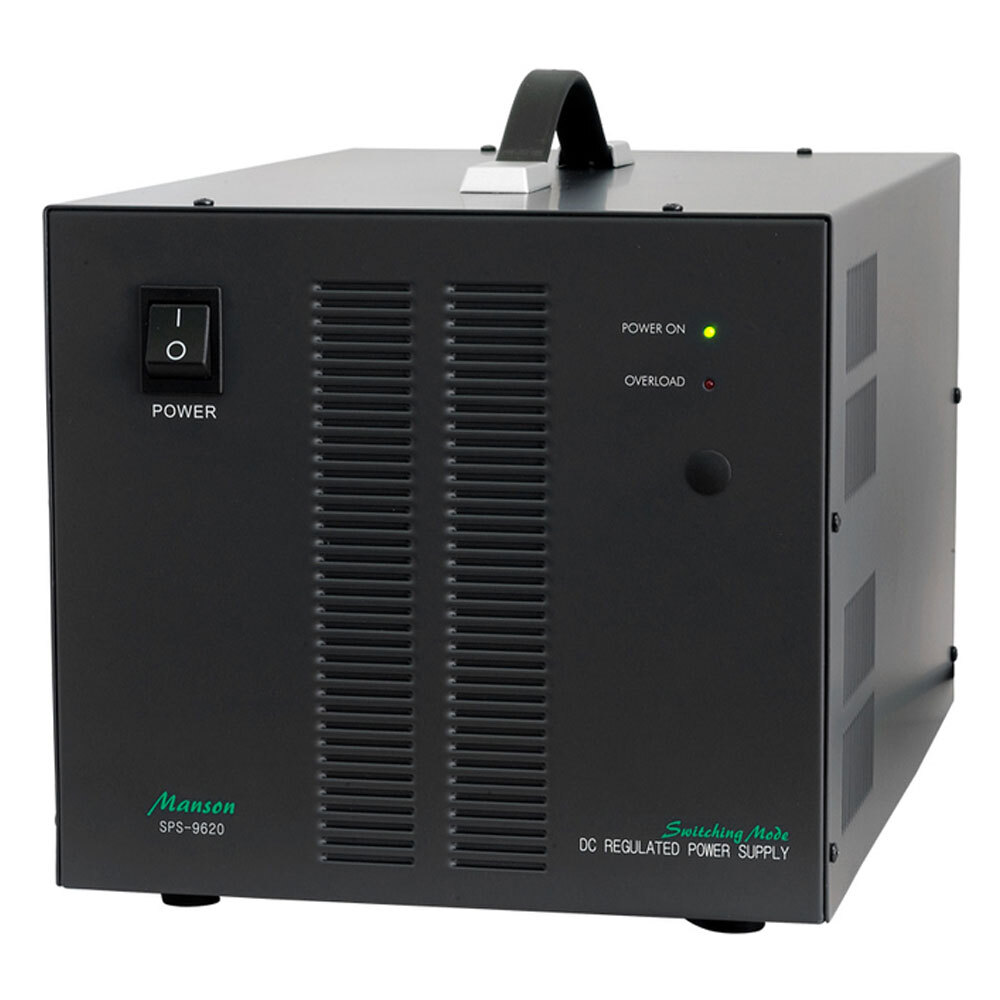

Manson 120AMP 13.8V DC Power Supply Switchmode Bench Top Dark Grey

Manson 120AMP 13.8V DC Power Supply Switchmode Bench Top Dark Grey has been designed for professional applications which require quality high current for equipment such as superpower car audio that is normally operated from twelve-volt batteries.

• The output is currently limited at just over 120A and this current output can be supplied continuously.

• The output voltage has Over Voltage Protection at about 17V to ensure very high protection against power supply failure, thus offering full protection to the powered equipment.

• The excellent load regulation is further enhanced with remote sensing terminals to give a precise voltage at the point of application for long connecting leads.

• The output voltage range can be easily fine-tuned between 12.6V to 14.3Vvia a concealed trimmer. This covers most 12V battery sources such as six lead-acid cells (13.8V) or ten nickel-cadmium cells (12.6V) and etc.

• The excellent Dynamic Power Factor Correction (>0.9) reduces unnecessary power loss (cuts electricity cost in some countries) and cuts the noise and EMI to your power mains.

Features:

• Output Over-Voltage Protection at 16.5V Trimmer fine-tunes output voltage 12.6 to 14.3 V for 13.8 V nominal.

• Constant Current Limiting Over Load Protection Shortcircuit and Overtemperature Protection.

• Green LED for power on/off indication

• Red LED for overload / short circuit protection

• Excellent line and load regulation.

• Remote sensing terminal for precise voltage load with long leads.

• Low ripple and noise

• The cooling fan is on all the time, speed of fan increase with the temperature of the unit.

• High efficiency 85%

• CE Approval : EN55022,EN61000 , EN-55024 IEC 60950:1999+Corr.Jan.2000 , EN 60950:Corr.Feb.2002
