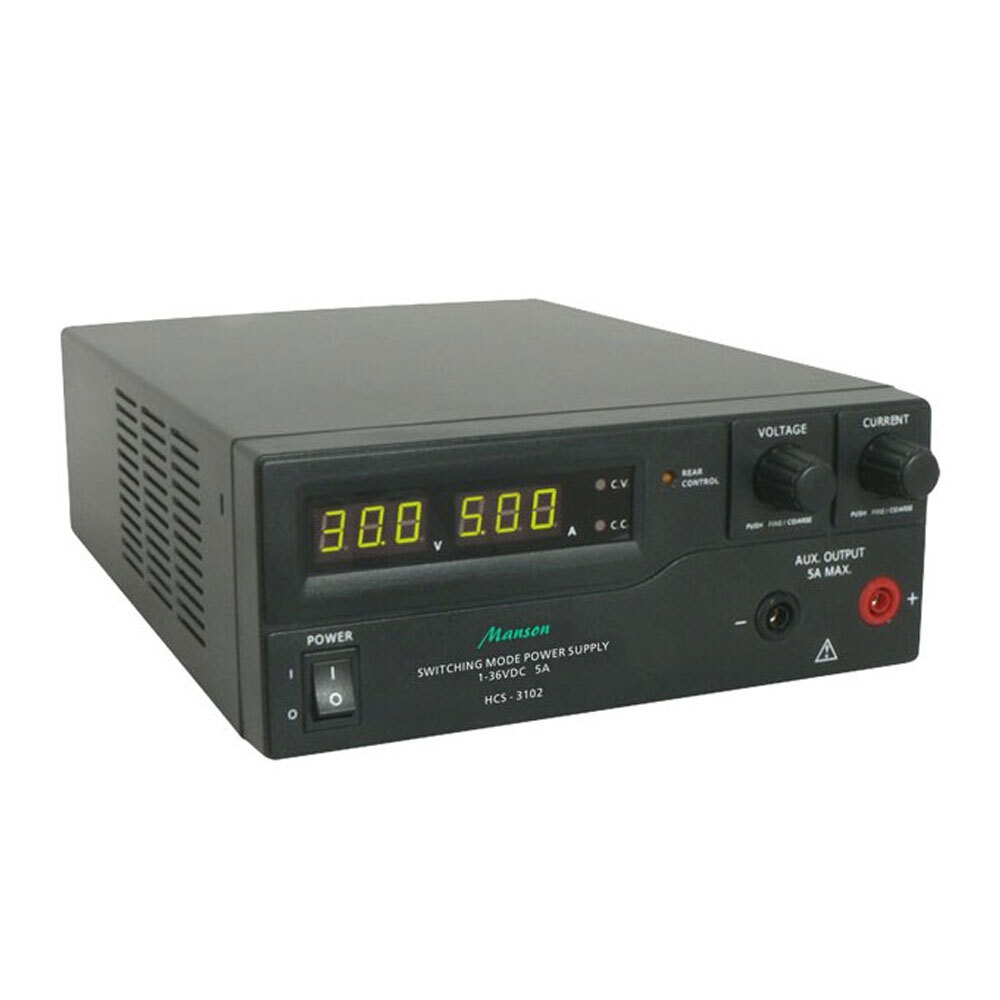

Manson 1-36VDC 5A Remote Programmable Switchmode Power Supply

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

After the success of our previous HCS series, high power supplies, this new low power series has been developed with end-users' feedback in mind.

A USB control port has been added to allow cyclical operations with programmable voltage, current, period and time cycles.

Manson 1-36VDC 5A Remote Programmable Switchmode Power Supply is ideal for laboratory, university, workshop, production, quality control and sophisticated DIY applications.

Features:

  • Remote programmable by computer via USB

  • 20 programmable sets of voltage, current and cycle periods for repetitive operations up to 999 cycles

  • 3 user-defined voltage and current panel presets for frequent use

  • Wired remote control of Voltage, Current and Output on/off without computer

  • Rotary encoder knob with the fine and coarse adjustment

  • Smart cooling fan speed control

  • Self-diagnostic check on the LED display

  • Isolated ground, Active PFC and high power efficiency

  • Universal AC Input

  • Overload, Tracking Over-voltage Protections

  • Constant current limit setting with open-circuit output

(HCS3102G)

This item comes with a 12-month warranty.

After the success of our previous HCS series, high power supplies, this new low power series has been developed with end-users' feedback in mind. A USB control port has been added to allow cyclical operations with programmable voltage, current, period and time cycles. Manson 1-36VDC 5A Remote Programmable Switchmode Power Supply is ideal for laboratory, university, workshop, production, quality control and sophisticated DIY applications. Features: Remote programmable by computer via USB 20 programmable sets of voltage, current and cycle periods for repetitive operations up to 999 cycles 3 user-defined voltage and current panel presets for frequent use Wired remote control of Voltage, Current and Output on/off without computer Rotary encoder knob with the fine and coarse adjustment Smart cooling fan speed control Self-diagnostic check on the LED display Isolated ground, Active PFC and high power efficiency Universal AC Input Overload, Tracking Over-voltage Protections Constant current limit setting with open-circuit output Variable Output Voltage: 1 - 36VDC Variable Output Current: 0 - 5A Load (10 - 100% Rated Current): 50m V Line (90 - 264VAC Variation): 20m V Load (10 - 90% Rated Voltage): 100 mA Line (90 - 264VAC Variation): 50 mA Ripple & Noise (r.m.s.) Voltage: 5mV Ripple & Noise (peak-peak) Voltage: 50mV Switching Frequency: 100 - 120Khz~ Tracking Over Voltage Protections: O/P 1-5V : set voltage +2V O/P 5-20V : set voltage +3V O/P 20-36V : set voltage +4V Voltage Meter: 3 Digit LED Display ±0.2% +3counts Current Meter: 3 Digit LED Display ±0.2% +3counts Input Voltage: 90 - 264VAC 50/60Hz~ Full Load Input Current (230VAC/100VAC): 1.2/2.5A

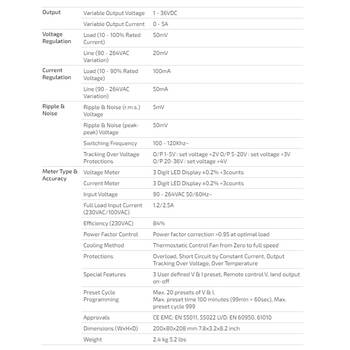

  • Variable Output Voltage: 1 - 36VDC

  • Variable Output Current: 0 - 5A

  • Load (10 - 100% Rated Current): 50m V

  • Line (90 - 264VAC Variation): 20m V

  • Load (10 - 90% Rated Voltage): 100 mA

  • Line (90 - 264VAC Variation): 50 mA

  • Ripple & Noise (r.m.s.) Voltage: 5mV

  • Ripple & Noise (peak-peak) Voltage: 50mV

  • Switching Frequency: 100 - 120Khz~

  • Tracking Over Voltage Protections: O/P 1-5V : set voltage +2V O/P 5-20V : set voltage +3V O/P 20-36V : set voltage +4V

  • Voltage Meter: 3 Digit LED Display ±0.2% +3counts

  • Current Meter: 3 Digit LED Display ±0.2% +3counts

  • Input Voltage: 90 - 264VAC 50/60Hz~

  • Full Load Input Current (230VAC/100VAC): 1.2/2.5A

  • AU/NZ Plug

Model # HCS3102G
Brand MANSON
Shipping Weight 2.9000kg
Shipping Width 0.230m
Shipping Height 0.100m
Shipping Length 0.220m
Shipping Cubic 0.005060000m3
Type Power Supply
