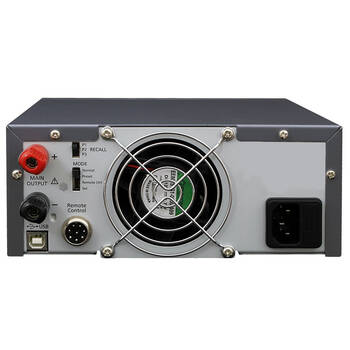

Manson 1-16V 0-30A Power Supply Switching 3 Digi LED w/ USB

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Manson 1-16V 0-30A Power Supply Switching 3 Digi LED w/ USB is ideal for laboratory, university, workshop, production, quality control and advanced DIY.

Computer interface via USB for cyclical operation, plus wired analogue remote control make these power supplies open up many demanding applications.

Fine and Coarse tuning with definitive rotary encoder volume knob and open circuit CC setting is really user friendly.

This range of high graded SMPS is designed for a wide range of applications for telecommunications, laboratory and industry. The power-efficient circuit designs allow units to have small form factor with low profile and small footprint casings. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse & fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The isolated ground construction allows parallel and series connection of power supplies with ease and safety. The three user-defined presets of voltage and current limiting levels facilitate quick access to frequently used VI settings. Analogue remote control functionality offer a wide range of operation possibilities for industrial and more sophisticated users. We add a USB port for access to a computer to run cyclical operation with programmable voltage, current, period time and cycles.

Features:

  • Rotary Encoder Control Knob with coarse & fine-tuning

  • PC interface USB for program runs of up to 20 sets V I, time set, and 999 cycles.

  • Wired analogue remote controls of on-off, V, and I

  • High RFI immunity & excellent EMI

  • Intelligent fan control from zero to full speed

  • 3 user presets on unit

  • Open circuit Constant current limit

  • Isolated ground and active PFC & high power efficiency

  • Overload, Over Temperature & Tracking Over Voltage protections

  • Remote Programmable via USB to computer

  • Application software, command sets and Labview driver.

  • Output Voltage: 1-16V

  • Output Current: 0-30A

(HCS3300-USB)

This item comes with a 12-month warranty.

Manson 1-16V 0-30A Power Supply Switching 3 Digi LED w/ USB is ideal for laboratory, university, workshop, production, quality control and advanced DIY. Features: Rotary Encoder Control Knob with coarse & fine-tuning PC interface USB for program runs of up to 20 sets V I, time set, and 999 cycles. Intelligent fan control from zero to full speed Open circuit Constant current limit Overload, Over Temperature & Tracking Over Voltage protections Remote Programmable via USB to computer Application software, command sets and Labview driver. Output Voltage: 1-16V Output Current: 0-30A Colour: Black Dimensions Approx.: 20 x 21.5 x 9 cm (WxDxH) Weight Approx.: 2.6 kg Variable Output Voltage: 1-16VDC Variable Output Current: 0-30A Load (10-100% Load): ≤50mV Line (170-264VAC Variation): ≤20mV Load(10-90% Rated Voltage): ≤150mA Line(170-264VAC Variation: ≤50mA Ripple & Noise (r.m.s) Voltage: ≤5mV Ripple & Noise (peak-peak) Voltage: ≤50mV Switching Frequency: 65-58KHz~ Tracking Over Voltage Protections: O/P 1-5V: set voltage +2V, O/P 5-16V: set voltage +3V Voltage Meter: 3 Digit LED Display ±(0.2% + 3counts) Current Meter: 3 Digit LED Display ±(0.2%+3counts) Input Voltage: 200-240VAC 50-60Hz ~(or on request) Full Load Input Current: 2.4A Efficiency: ≥85.5% Power Factor Control: Power factor correction >0.95 at optimal load Cooling Method: Thermostatic Control Fan from Zero to full speed Protections: Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature Special Features: 3 User-defined V & I preset, Analogue Remote control V, I and output on-off Preset Cycle Programming: Max. 20 presets of V&I; Max. preset cycle 999 Approvals: CE EMC: EN 55011, 55022 LVD: EN 60950, 61010

  • Colour: Black

  • Dimensions Approx.: 20 x 21.5 x 9 cm (WxDxH)

  • Weight Approx.: 2.6 kg

  • Variable Output Voltage: 1-16VDC

  • Variable Output Current: 0-30A

  • Load (10-100% Load): ≤50mV

  • Line (170-264VAC Variation): ≤20mV

  • Load(10-90% Rated Voltage): ≤150mA

  • Line(170-264VAC Variation: ≤50mA

  • Ripple & Noise (r.m.s) Voltage: ≤5mV

  • Ripple & Noise (peak-peak) Voltage: ≤50mV

  • Switching Frequency: 65-58KHz~

  • Tracking Over Voltage Protections: O/P 1-5V: set voltage +2V, O/P 5-16V: set voltage +3V

  • Voltage Meter: 3 Digit LED Display ±(0.2% + 3counts)

  • Current Meter: 3 Digit LED Display ±(0.2%+3counts)

  • Input Voltage: 200-240VAC 50-60Hz ~(or on request)

  • Full Load Input Current: 2.4A

  • Efficiency: ≥85.5%

  • Power Factor Control: Power factor correction >0.95 at optimal load

  • Cooling Method: Thermostatic Control Fan from Zero to full speed

  • Protections: Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature

  • Special Features: 3 User-defined V & I preset, Analogue Remote control V, I and output on-off

  • Preset Cycle Programming: Max. 20 presets of V&I; Max. preset cycle 999

  • Approvals: CE EMC: EN 55011, 55022 LVD: EN 60950, 61010

Model # HCS3300-USB
Brand MANSON
Shipping Weight 3.5000kg
Shipping Width 0.240m
Shipping Height 0.110m
Shipping Length 0.240m
Shipping Cubic 0.006336000m3
Type Power Supply
