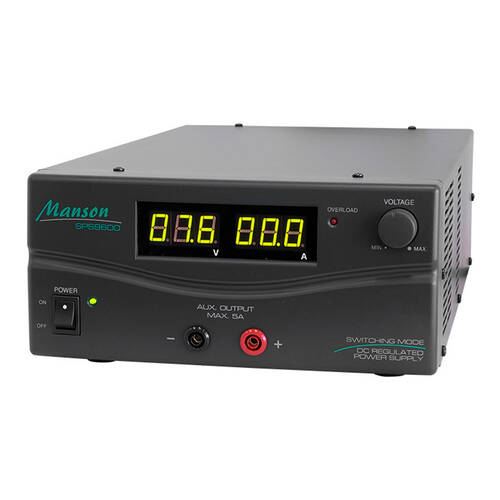

Manson 60AMP 1-15V DC Power Supply Bench Top Dark Grey

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Manson 60AMP 1-15V DC Power Supply Bench Top Dark Grey is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.

The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply.

The output voltage level can be externally controlled via the remote terminal. It is ideal for applications that need good quality high DC current network with a precise point of voltage regulation.

The SPS-9600 has a small footprint for its 900W continuous maximum power and is suitable for a wide range of applications such as street blaster super high power car audios demonstration console, radio equipment and etc.

Features:

  • Total max. continuous output current 60A (SPS-9600)

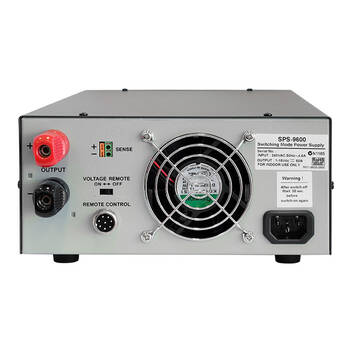

  • Main Output /Remote Sensing/ Remote Control/ terminals at the back

  • Front terminals 5A limiting

  • Adjustable output voltages 1 to 15V DC

  • Remote Sensing for remote point of regulation

  • Remote control terminals for output voltage

  • Lightweight and small size

  • Overload / Over-temperature /Short Circuit Protections

  • Constant Current mode with LED indicator prevents overloading

  • Variable speed thermally controlled fan

  • High RFI stability

(SPS9600G)

This item comes with a 12-month warranty.

Manson 60AMP 1-15V DC Power Supply Bench Top Dark Grey is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply. The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level can be externally controlled via the remote terminal. It is ideal for applications that need good quality high DC current network with a precise point of voltage regulation. The SPS-9600 has a small footprint for its 900W continuous maximum power and is suitable for a wide range of applications such as street blaster super high power car audios demonstration console, radio equipment and etc. Colour: Dark Grey AU/NZ Plug Variable Output Voltage: 1 - 15V DC Total Rated Output Current (Main Output + Front Output): 60A Rated Output Current (Main Output): 60A Rated Output Current (Front Output): 5A Load Regulation (Main Output): 0.1% +5mV Line Regulation (Main Output): 0.05% +3mV Ripple & Noise (Peak-Peak): 40mV p-p Input voltage: 230V AC Efficiency: > 85% Meter Type: LED Meter Volt meter range: 3 digit display Amp meter range: 3 digit display Meter accuracy: ±1% +1 count Protection devices: Overload ( Constant current limiting ), Short circuit, Over temperature, OVP Cooling system: Variable speed thermally control fan Special feature: Remote sensing , Remote control Approvals: CE - EMC:EN55022 , CE - LVD:EN60950 Dimensions Approx.: 22 x 36 x 11 cm (WxDxH) Weight: 5.8 kg Power factor correction >0.97 at optimal load
  • Colour: Dark Grey

  • AU/NZ Plug

  • Variable Output Voltage: 1 - 15V DC

  • Total Rated Output Current (Main Output + Front Output): 60A

  • Rated Output Current (Main Output): 60A

  • Rated Output Current (Front Output): 5A

  • Load Regulation (Main Output): 0.1% +5mV

  • Line Regulation (Main Output): 0.05% +3mV

  • Ripple & Noise (Peak-Peak): 40mV p-p

  • Input voltage: 230V AC

  • Efficiency: > 85%

  • Meter Type: LED Meter

  • Volt meter range: 3 digit display

  • Amp meter range: 3 digit display

  • Meter accuracy: ±1% +1 count

  • Protection devices: Overload ( Constant current limiting ), Short circuit, Over temperature, OVP

  • Cooling system: Variable speed thermally control fan

  • Special feature: Remote sensing , Remote control

  • Approvals: CE - EMC:EN55022 , CE - LVD:EN60950

  • Dimensions Approx.: 22 x 36 x 11 cm (WxDxH)

  • Weight: 5.8 kg

  • Power factor correction >0.97 at optimal load

Model # SPS9600G
Brand MANSON
Shipping Weight 5.7000kg
Shipping Width 0.380m
Shipping Height 0.130m
Shipping Length 0.240m
Shipping Cubic 0.011856000m3
Type Power Supply
