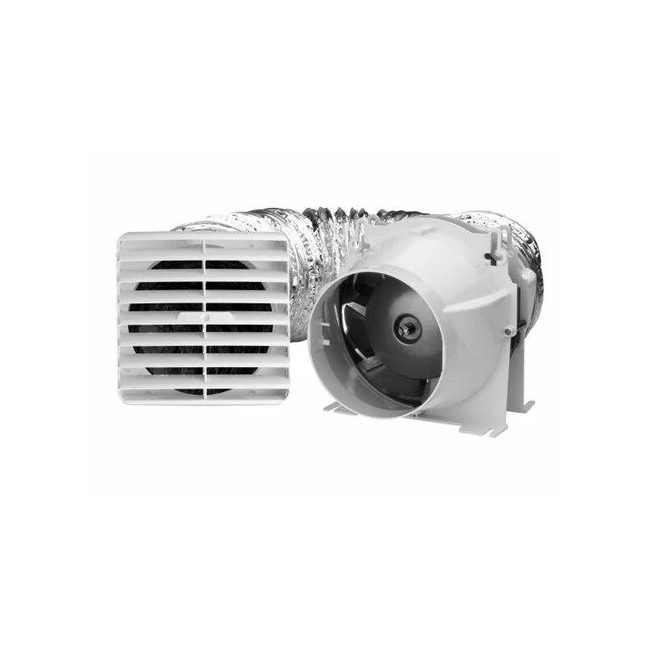

IXL Ventair Inline Ventflo Easy Duct Exhaust System - White

Fully ducted ventilation unit with 170mm blower. Engineered to seal when not in use - prevents back draughts. Ideal for eco-sensitive designs and 5 star energy rated homes. Flex and plug included for simple installation. Extraction rate of 55 litres per second.
Ventflo Easy Duct Exhaust System is compliant with G4 Building Codes and Healthy Home Standard for bathrooms and kitchens.

• 6m x150mm flexible duct

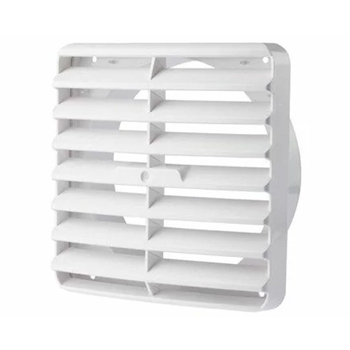

• 2 x interior/exterior grille
• 1 x in-line exhaust unit

• Finish/Colours White
• Airflow Extraction (m3/h) 198
• Ducted Yes
• Back Draught Flaps Yes
• Center LED Light (W) No
• Clearance Required above Unit (mm) 230
• Cutout Size (mm) 160 dia.
• Exhaust Capacity (l/s) 55
• Exhaust Capacity (m3/h) 198
• Fan Size (mm) 170
• Fascia Dimensions (mm) 165W x 165D
• Finish/Colours White
• Total Height of Unit (not including Fascia) (mm) 215
• Inline Fan Ducted to Outside Yes
• Length of Ducting Supplied 6m x 150mm dia
• Made in Australia Yes
• Supplied with Switch Set No
• Supply (Volts) 240
• Area Suitability in Room without Shower 24.75
• Area Suitability in Room with Shower 9.9
• Total Clearance Height Required (including above unit) (mm) 230
• Watts (Fan in Brackets) 40 (40)
• Weight of Unit (kg) 2.95
• Watts (W) 40
