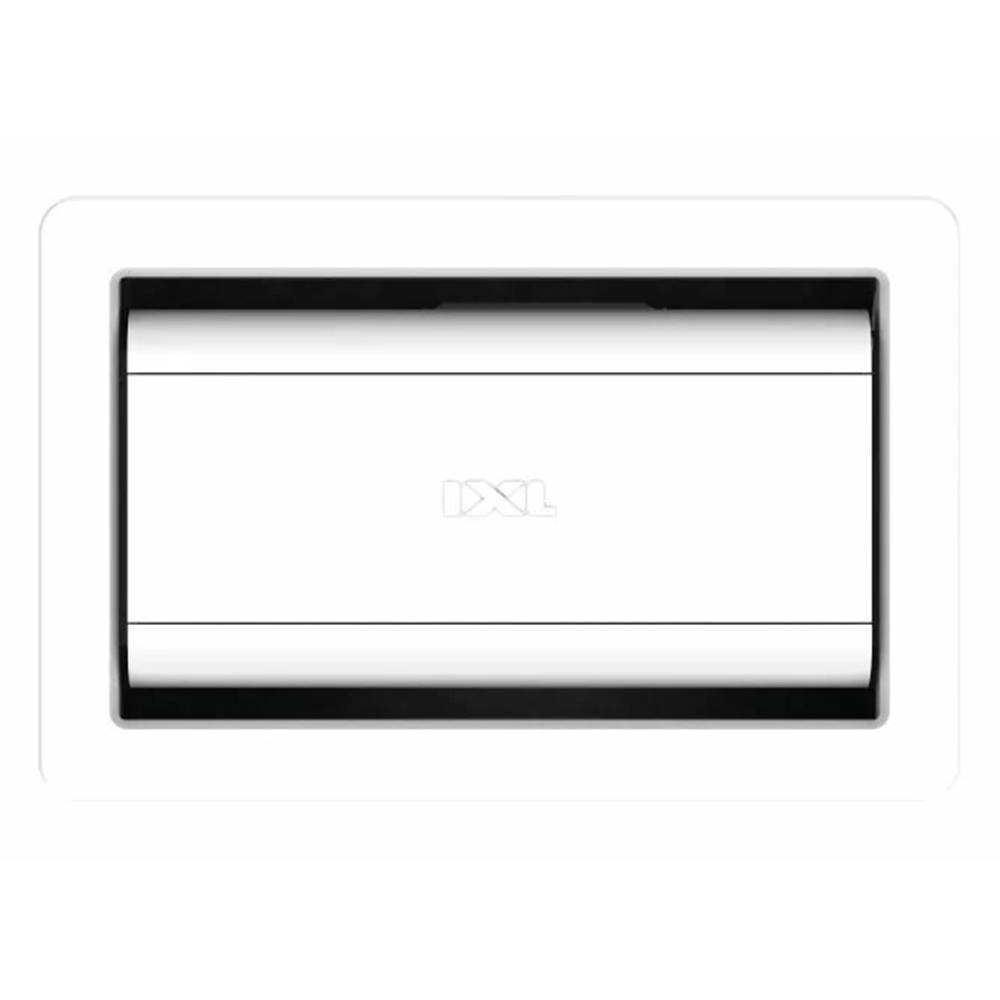

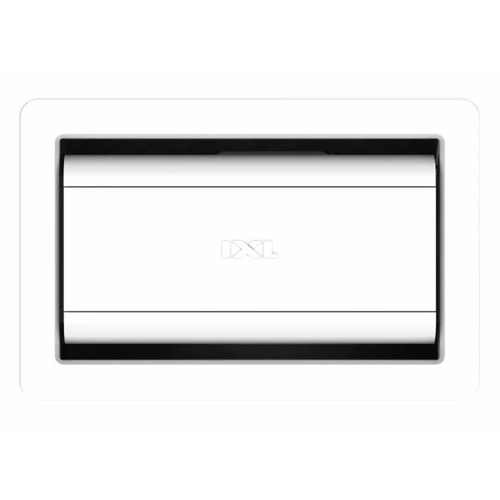

IXL Tastic Luminate Vent Module Bathroom Exhaust Fan - White

The Tastic Luminate Vent is the latest new addition to IXL's premium Tastic Luminate range, featuring powerful 400m3/hr airflow extraction.

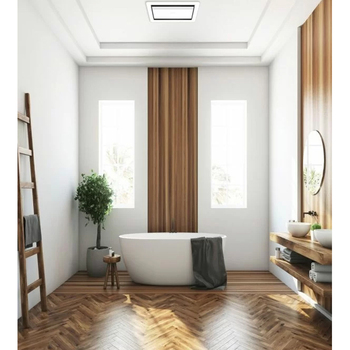

Position a Tastic Luminate Vent module over the shower, in the laundry or bathroom to banish odours and water vapour effectively, without the need for a bulky extraction fan.
Tastic Luminate Vent features a sleek and contemporary fascia design and is suitable for above shower installation with an IPX4 rating.
This product is a ventilation fan only. There is no heat or light.
Powerful Extraction: 400m3/h Airflow
Tastic Luminate is compliant with NCC in Australia, and G4 Building Codes and Healthy Home Standard for bathrooms and kitchens in New Zealand.
Tastic Luminate Vent is proudly designed and manufactured in Australia.

• Powerful Extraction: 400m3/hr Airflow
• Suitbale for above shower installation: IPX4 rating
• Exhaust Fan with 6m Duct and Exterior Outlet Vent
• Designed and manufactured in Australia
• Suitable for areas up to 8.3m2 with shower* and 20.8m2 without shower.

• Finish/Colours White
• Airflow Extraction (m3/h) 400
• Ducted Yes
• Back Draught Flaps Yes
• Clearance Required above Unit (mm) 30
• Current Ratings (Amps) 0.4
• Cutout Size (mm) 214 x 332
• Exhaust Capacity (l/s) 111
• Exhaust Capacity (m3/h) 400
• Fan Size (mm) 170
• Fascia Dimensions (mm) 243W x 367D
• Inline Fan Ducted to Outside Yes (6m of ducted included)
• IP Rating IPX4
• Made in Australia Yes
• Max. Height of Unit (mm) 215
• Supply (Volts) 240
• Area Suitability in Room without Shower 20.8m2
• Area Suitability in Room with Shower 8.3m2
• Total Ceiling Cavity Required (mm) 245
• Watts (Fan in Brackets) 0(75)
• Weight of Unit (kg) 4.2
• Power Cable Length (m) 1.2
• Unit Dimensions (mm) 367W x 243L x 200D
