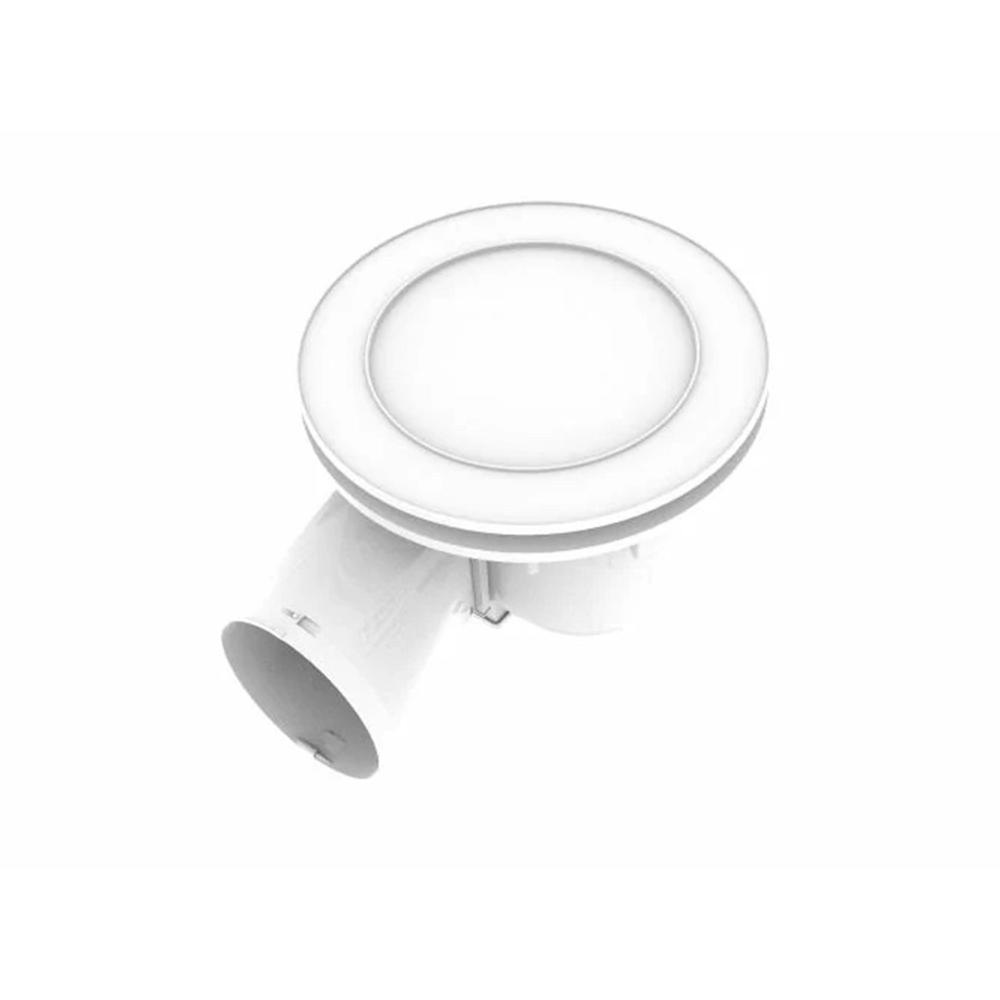

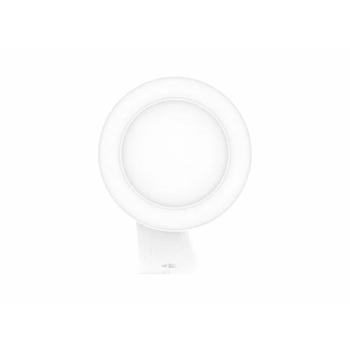

IXL Ducted Ventflo Ceiling Exhaust Fan & Light 200mm - White

The Ducted Ventflo Ceiling Exhaust Fan and Light is designed to fit a ceiling cavity with a minimum height of 210mm, and has a 125mm diameter duct outlet.
The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors.
Ducted Ventflo is compliant with New Zealand G4 Building Codes and Healthy Home Standard for bathrooms and kitchens.

• Impeller housing design provide powerful air flow extraction
• Suitable for bathrooms, kitchens, laundries and toilets
• IP24 rated – can be installed directly above a shower
• Energy saving 12W 4000K cool white LED panel
• 50,000 hours long life expectancy LED

• Impeller housing design provide powerful air flow extraction
• Suitable for bathrooms, kitchens, laundries and toilets
• IP24 rated – can be installed directly above a shower
• Energy saving 12W 4000K cool white LED panel
• 50,000 hours long life expectancy LED

• Airflow Extraction (m3/h) 280
• Heat Lamps 12W
• Aluminium Flexi Ducting 125 (not included)
• Back Draught Flaps Yes
• Center LED Light (W) 12
• Clearance Required above Unit (mm) 210
• Colour Temperature (Kelvins) 4000K
• Coloured Mood Lighting Cool White
• Cutout Size (mm) 240
• Exhaust Capacity (l/s) 77
• Exhaust Capacity (m3/h) 280
• Fan Size (mm) 200
• IP Rating IP24
• LED Light Output (Lumens) 900
• Life (hrs) up to 5000 hours
• Min. Ceiling Height (m) 2.1
• Product Installation Can be installed directly above a shower
• Suitable for Wet/Steamy Area Yes
• Supply (Volts) 220-240
• Fan Wattage 45
• Area Suitability in Room with Shower 5.83
