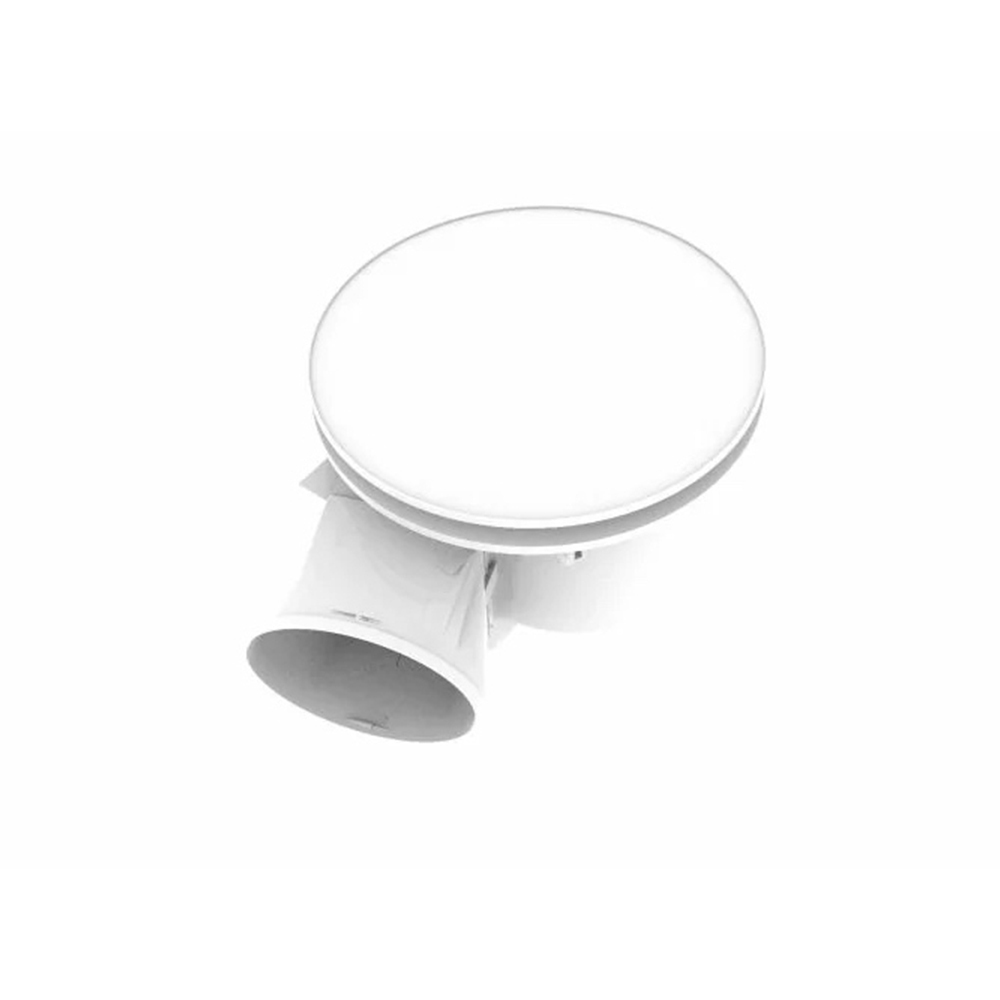

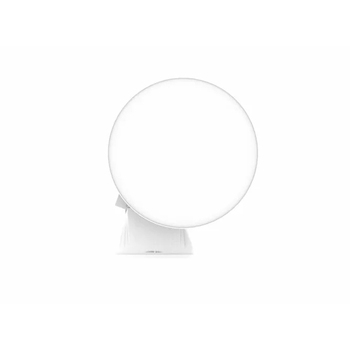

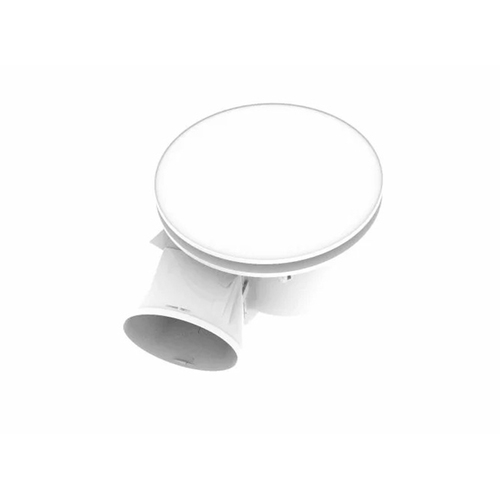

IXL Ducted Ventflo Ceiling Exhaust Fan 250mm - White

The Ducted Ventflo Ceiling Exhaust Fan is designed to fit a ceiling cavity with a minimum height of 242mm, and has a 150mm diameter duct outlet.
The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors.
Ducted Ventflo is compliant with New Zealand G4 Building Codes and Healthy Home Standard for bathrooms and kitchens.

• Impeller housing design provide powerful air flow extraction
• Suitable for bathrooms, kitchens, laundries and toilets
• IP24 rated – can be installed directly above a shower
• Removable fascia for easy cleaning
• Comes with plug for easy installation

• Impeller housing design provide powerful air flow extraction
• Suitable for bathrooms, kitchens, laundries and toilets
• IP24 rated – can be installed directly above a shower
• Removable fascia for easy cleaning
• Comes with plug for easy installation

• Airflow Extraction (m3/h) 360
• Aluminium Flexi Ducting 150 (not included)
• Back Draught Flaps Yes
• Clearance Required above Unit (mm) 242
• Cutout Size (mm) 295
• Exhaust Capacity (l/s) 100
• Exhaust Capacity (m3/h) 360
• Fan Size (mm) 250
• IP Rating IP24
• Min. Ceiling Height (m) 2.1
• Product Installation Can be installed directly above a shower
• Suitable for Wet/Steamy Area Yes
• Supply (Volts) 220-240
• Fan Wattage 60
• Area Suitability in Room with Shower 7.5
