IP RELAY 4 X IP - 10 X O/P AIPHONE

This item comes with a 12 months warranty

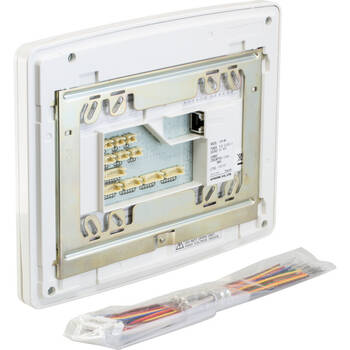

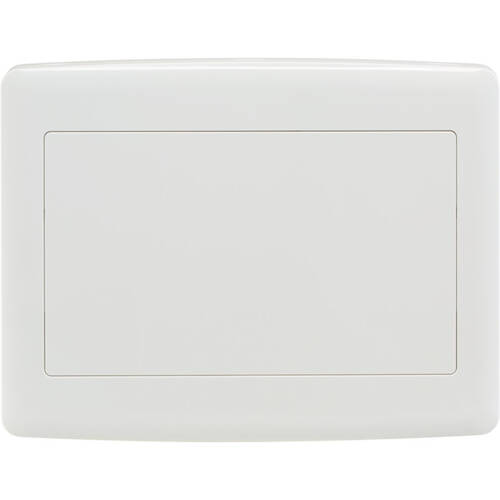

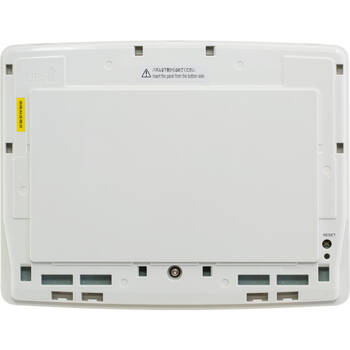

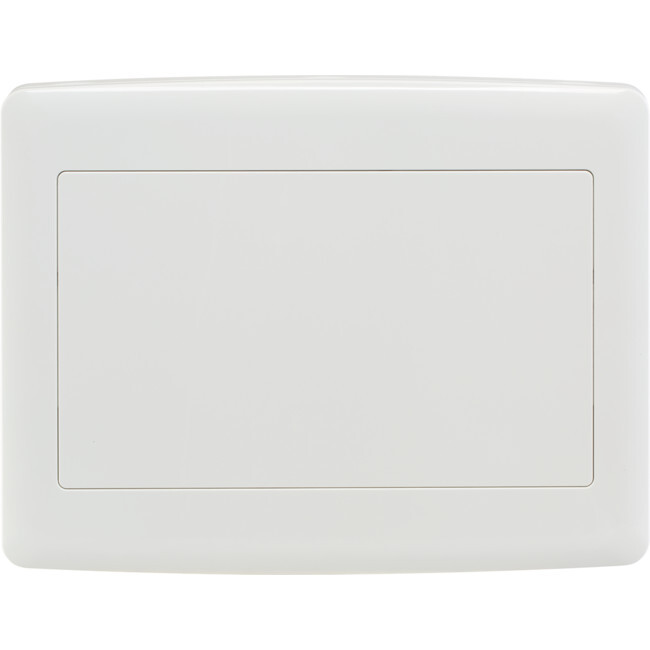

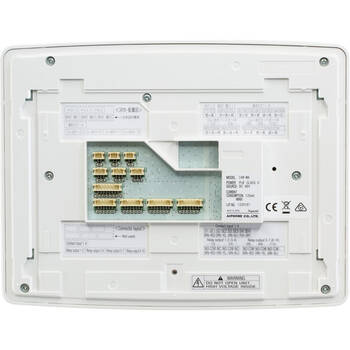

IP RELAY 4 X IP - 10 X O/P AIPHONEAiphone - IXW-MA IP RELAY, 4 INPUTS, 10 OUTPUTS The IXW-MA is a multi-purpose adaptor for the IX Serieswith 4 contact inputs and 10 relay outputs. The inputs on the IXW-MA can be used to send a command to a specific station to perform a task. The IXW-MA relays are associated to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state. The IXW-MA is a PoE device, and can be programmed via IX Series Support Tool 5.0 or later. FEATURES New features available for North America with a firmware update Program using the IX Series 2 Support tool Powered over POE, no additional power supply required! Allows connection of theIX Mobile appto an IX Series system 4 activation inputs, 10 relay outputs Line Supervision events from IX Series master can trigger a relay closure Activate with either relay output from IX series stations Specifications Power Source: 802.3af PoE compliant Power Draw: Standby: 43 mA; Maximum: 135 mA Relay Output: Relays 1-4: Form C 24V AC/DC 500mA - Relays 5-10: Form A 24V AC/DC 500mA LAN: Ethernet (10BASE-T, 100BASE-TX) Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, SMTP, SFTP, DHCP, NTP, DNS Encryption system: TLS1.0, TLS1.1, TLS1.2 Port Security: IEEE 802.1X Operating Temp: 14° ~ 104°F (-10° ~ 50°C) Dimensions: 7-1/2" x 9-5/8" x 13/16" Weight: 1.39 lbs
