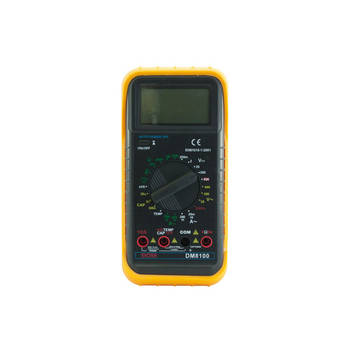

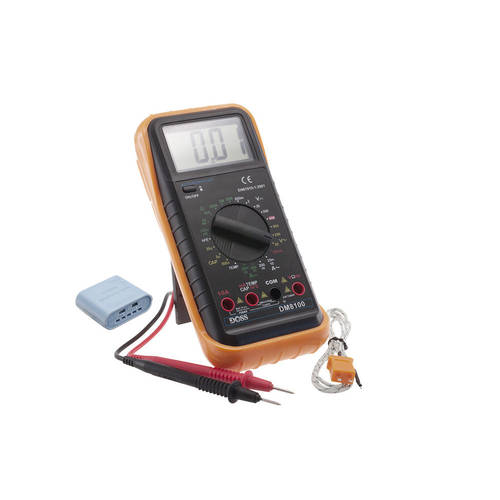

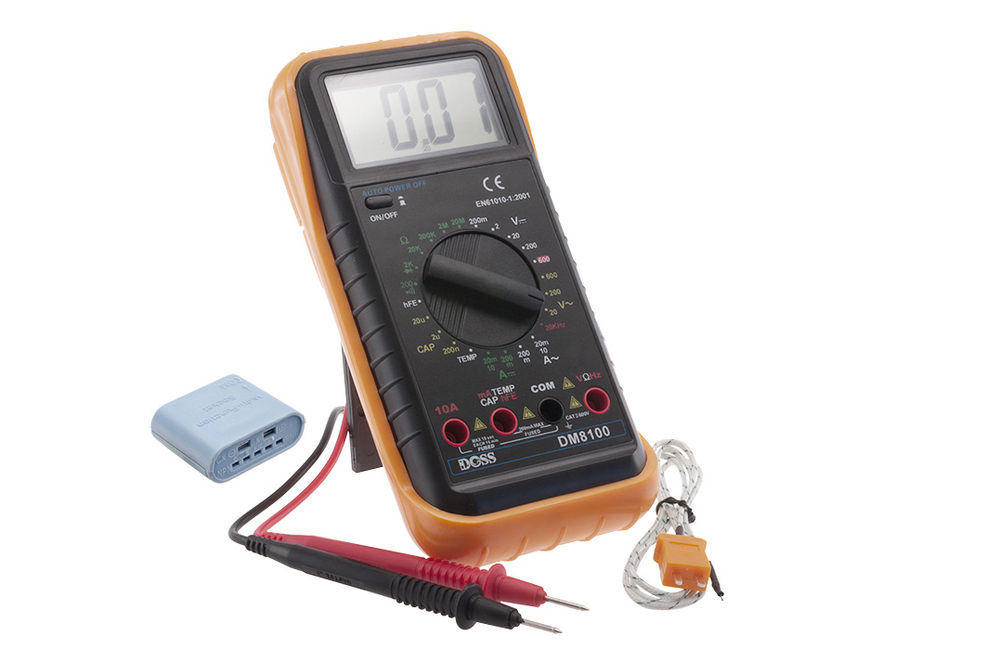

Digital Multimeter

Features an extra large display with 25mm high digits. This is a full-featured meter with a high resistance range of 20M Ohm, 10A current rating, capacitancereading to 200uF, transistor tester and temperature to 800 degrees celcius. The meter is supplied with temperature probe, rubber holster and probe leads.

  • 3.5 Digital Extra Large Display
  • 1999 Count
  • Capacitance
  • Transistor Test
  • Continuity Buzzer
  • Diode Test
  • Temperature
  • Auto-Power Off
  • Holster Included
  • Includes Bonus Temperature Probe

(DM8100)

This item comes with a 12 month Warranty

Digital Multimeter  Features an extra large display with 25mm high digits. This is a full-featured meter with a high resistance range of 20M Ohm, 10A current rating, capacitancereading to 200uF, transistor tester and temperature to 800 degrees celcius. The meter is supplied with temperature probe, rubber holster and probe leads.  3.5 Digital Extra Large Display  1999 Count  Capacitance  Transistor Test  Continuity Buzzer  Diode Test  Temperature  Auto-Power Off  Holster Included  Includes Bonus Temperature Probe  DC voltage: 200mV, 2V, 20V, 200V, 600V  +/- 0.5% AC voltage: 2V, 20V, 200V, 600V  +/- 1.0% DC current: 2mA, 20mA, 200mA, 10A  +/- 1.0% AC current: 2mA, 20mA, 200mA, 10A  +/- 1.5% Resistance: 200 Ohm, 2k, 20k, 200k, 2M, 20M  +/- 0.8% Capacitance: 2nF, 20nF, 2uF, 200uF   +/- 2.5% Temperature: -20°C to +800 C  +/- 3.0% Input impedance: 10M Ω Dimension: 44 (H) x 91(W) x 194(L) mm
  • DC voltage: 200mV, 2V, 20V, 200V, 600V  +/- 0.5%
  • AC voltage: 2V, 20V, 200V, 600V  +/- 1.0%
  • DC current: 2mA, 20mA, 200mA, 10A  +/- 1.0%
  • AC current: 2mA, 20mA, 200mA, 10A  +/- 1.5%
  • Resistance: 200 Ohm, 2k, 20k, 200k, 2M, 20M  +/- 0.8%
  • Capacitance: 2nF, 20nF, 2uF, 200uF   +/- 2.5%
  • Temperature: -20°C to +800 C  +/- 3.0%
  • Input impedance: 10M Ω
  • Dimension: 44 (H) x 91(W) x 194(L) mm
Model # DM8100
Barcode # 9328202004055
Brand DOSS
Shipping Weight 0.5000kg
Shipping Width 0.210m
Shipping Height 0.140m
Shipping Length 0.050m
Shipping Cubic 0.001470000m3
Type Digital Mulitmeter
