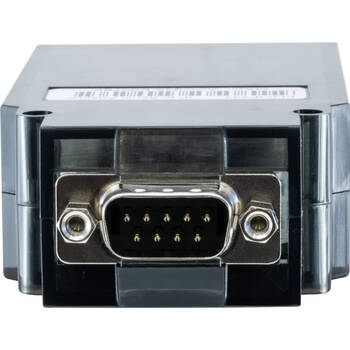

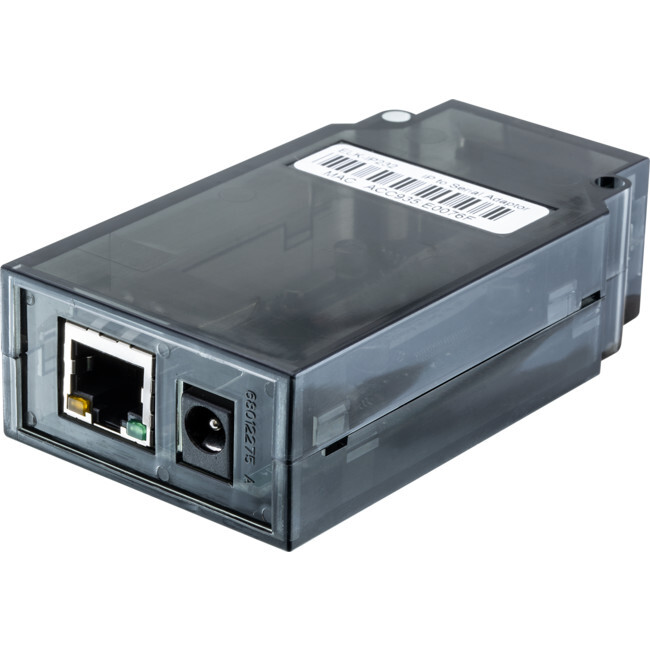

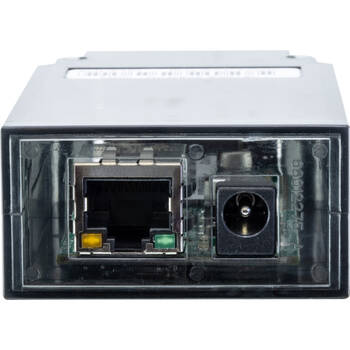

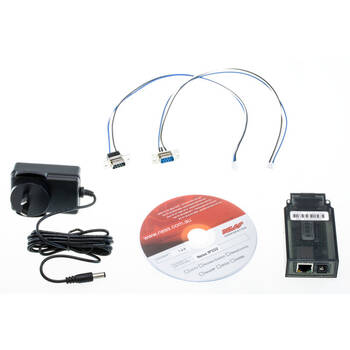

IP232 ETHERNET TO RS232 BRIDGE (BI-DIRECTIONAL) NESS K-6002

Standard Consumer Warranty

The IP232 is an Ethernet to RS-232 Serial Port Bridge. It may be used to connect any standard serial communications device such as a PC, an audio/video distribution system, or a Ness-M1 Control or Ness D8X / D16X, to an Ethernet network. It allows bi-directional communication between the two. It operates as a network server, which means it does not initiate network connections, but rather, accepts them. The IP232 is required to connect the D8X / D16X to the Ness iComms iOS App or the Ness M1 Touchscreen to the Russound Audio Distribution system. Features: Supports both UDP and TCP protocols Allows up to twelve (12) simultaneous TCP-IP network connections Up to twelve (12) "Rules" may be programmed to make outgoing connections. Outgoing connections may be initiated upon power-up or when serial activity is detected. They may remain connected indefinitely or for a set time period. Selectable baud rate from 300 to 115200 baud Supports software handshaking (XON/XOFF) and hardware handshaking (RTS/CTS) Multiple Bridges can be used on the same network Can be updated in the field with new firmware using the Configuration Utility Integrated 802.3 compliant 10/100 Mbit network interface RS232, DB9M 9-pin serial port connection Connects to the M1 RS-232 Serial port (Port 0). Includes programming leads RJ45 8-pin Network Jack 2.1mm barrel-type power connector (centre positive)
