GENERAL PURPOSE TIMER RELAY NIDAC

Standard Consumer Warranty

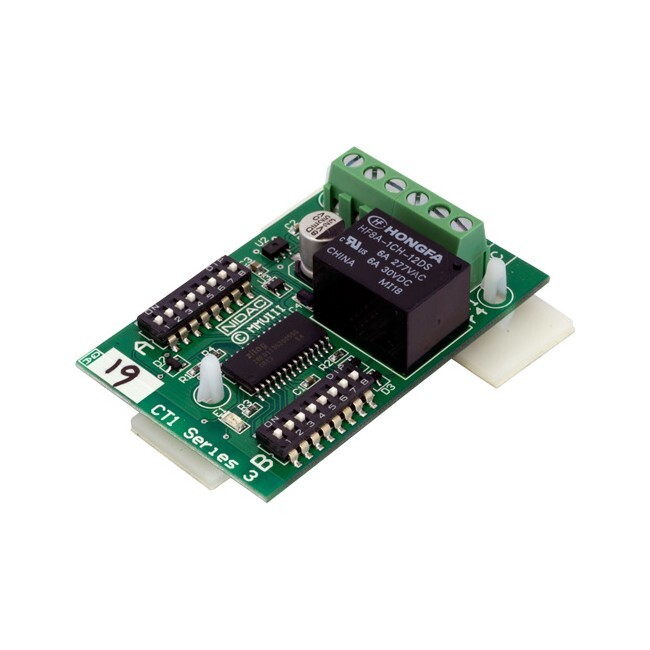

The Nidac CT1 Series 3 Control Timer has 13 different operating modes and 4 timing ranges, 3 trigger modes, dualDC voltage operation & a heavy-duty relay output. 12 to 24V DC operation 13 operating modes: single shot (normal timer) single shot re-triggerable dual edge dual edge re-triggerable bistable (clutch) operation trigger extension maximum pulse minimum pulse hold off (door open too long) multivibrator, 1 sec on time multivibrator, equal on/off time delay on delay on re-triggerable (no activity timer)  4 timing ranges: 1 to 255 seconds in 1-second increments 10 seconds to 42 minutes in 10-second increments 1 to 255 minutes in 1-minute increments 1 hour to 255 hours in 1-hour increments Accurate DIP switch selection for timing Selectable positive, negative or dual-edge trigger only 70 x 57 x 23.5mm including feet 70 x 45 x 19.5mm without feet LED indicates operation Sturdy self-adhesive feet Heavy-duty 5 Amp changeover relay contacts Fail-safe or fail-secure operation LED indication of relay operation Warning: Do Not Use 240V On The Relay Contacts
