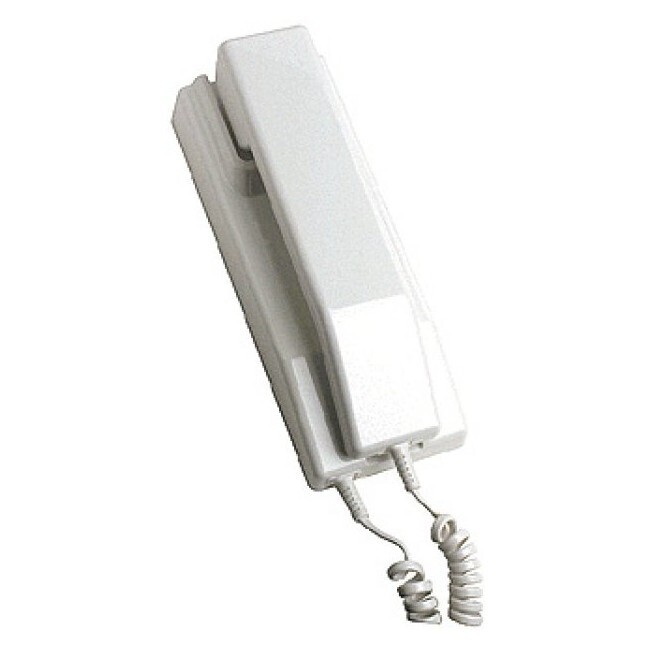

AIPHONE IE1ADU CHIME HANDSET INTERCOM

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

CHIME HANDSET INTERCOM

Aiphone's IE-1ADU audio intercom features a chime tone door answering system, answer and adjustable chime volume.>

In addition, Aiphone's IE series is AC or DC powered and Its flexible design allows the addition of a call extension speaker.>

  • Simultaneous conversation
  • 4 stroke chime tone for 2 locations
  • Door release button.
  • Power Source - 12-16vac or 12-24vdc
  • Single power supply for unit operation and door release
  • Wiring::- 2 non-polarized to a door station, plus 2 to door release. Distance 150 mtrs. ( 0.65mm - 22AWG), 360mtrs ( 1.0mm )
  • Size: 80 x 210 x 58mm ( WHD)
  • Can be used with IE or IF door stations



(IE1ADU)

This item comes with a 12 months warranty

CHIME HANDSET INTERCOM  Aiphone's IE-1ADU audio intercom features a chime tone door answering system, answer and adjustable chime volume.> In addition, Aiphone's IE series is AC or DC powered and Its flexible design allows the addition of a call extension speaker.> Simultaneous conversation 4 stroke chime tone for 2 locations Door release button. Power Source - 12-16vac or 12-24vdc Single power supply for unit operation and door release Wiring::- 2 non-polarized to a door station, plus 2 to door release. Distance 150 mtrs. ( 0.65mm - 22AWG), 360mtrs ( 1.0mm ) Size: 80 x 210 x 58mm ( WHD) Can be used with IE or IF door stations
Model # IE1ADU
Barcode # 790143367008
Brand AIPHONE
Shipping Weight 0.5300kg
Shipping Width 0.210m
Shipping Height 0.080m
Shipping Length 0.090m
Shipping Cubic 0.001512000m3
Type Audio Intercom
