The HEX70SL-KIT 4K HDBaseT™ extender set offers market leading features in a slimline chassis. Delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

Key Features:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Enhanced slimline chassis
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional IR pass-through
  • Supplied with Blustream IR Receiver and Emitter
  • Supports Bi-directional PoC to power extenders from either Transmitter or Receiver end
  • HDCP 2.2 Compliant with Smart EDID management

Specifications:

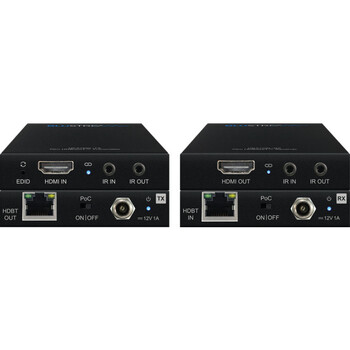

  • HEX70SL-TX
    • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
    • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
    • IR Input Ports: 1 x 3.5mm stereo jack
    • IR Output Ports: 1 x 3.5mm mono jack
    • EDID: Pin hole button
  • HEX70SL-RX
    • Video Input Connectors: 1 x HDBaseT™ RJ45 connector
    • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
    • IR Input Ports: 1 x 3.5mm stereo jack
    • IR Output Ports: 1 x 3.5mm mono jack
    • Power Supply: 12V/1A DC
    • Dimensions: 106mm x 73mm x 16mm (LxWxH)
    • Shipping Weight: 0.8kg
    • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
    • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
Box Contents:
  • 1 x HEX70SL-TX
  • 1 x HEX70SL-RX
  • 1 x 12V/1A DC Power Supply
  • 1 xIR Emitter
  • 1 xIR Receiver
  • 2 x Mounting Kit
  • 1 x Quick Reference Guide
  • (HEX70SLKIT)

    This item comes with a 12 months warranty

    Model # HEX70SLKIT
    Barcode # 9340242003317
    Brand BLUSTREAM
    Shipping Weight 0.7800kg
    Shipping Width 0.200m
    Shipping Height 0.100m
    Shipping Length 0.200m
    Shipping Cubic 0.004000000m3
    Type Extender
