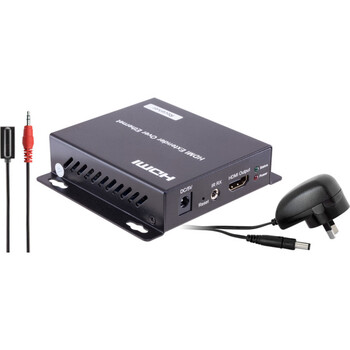

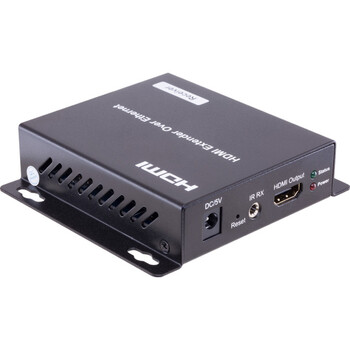

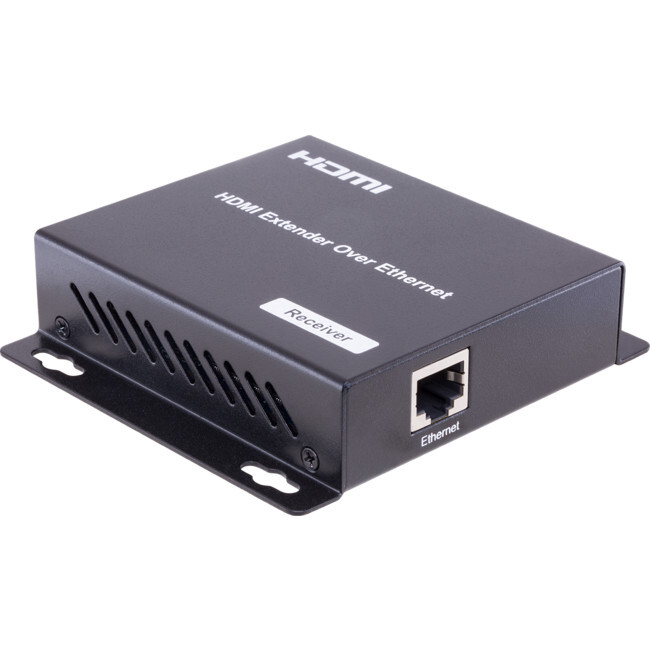

RECEIVER FOR HDMIIPECOV2 MJPEG COMPRESSION

Spare Receiver for HDMIIPECOV2. HDMIIPECOV2 is a budget option for extending HDMI source over network. It supports one to one and one to many operation.

Features:

• Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable
• Supports point to point, point to many
• HDCP compliant
• With wideband IR (38-56k Hz) control
• Supports TCP/IP protocol
• With mounting ears
• Default TX IP: 192.168.168.55
• Default RX IP: 192.168.168.56


Specifications:

• Operating Temperature Range: -5 to 35°C
• Operating Humidity Range: 5 to 90%RH (No condensation)
• Input Video Signal: 0.5-1.0 Volts P-P
• Input DDC Signal: 5 volts p-p(TTL)
• Supported Video Format: DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
• Transmission Distance: 120m: 1080p 8-bit over CAT5e/CAT6 24AWG solid cable
• Power Consumption: TX: 3 Watts, RX: 3 Watts
• Dimension: 103.5(L) x 93.5(W) x 24.6(H)mm
• IR Frequency: 38K-56KHz
• Net Weight: TX:220g, RX:220g
