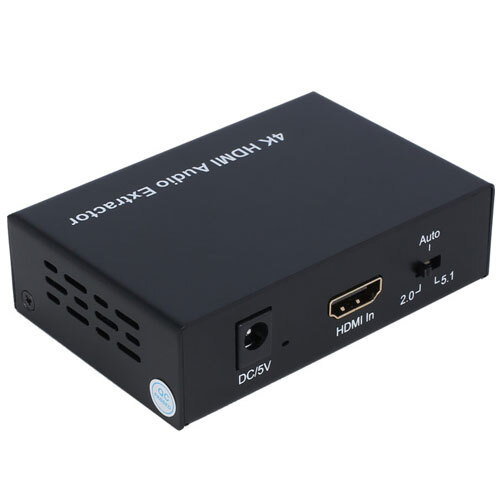

Pro.2 HA01 4K HDMI Digital HDMI Audio Extractor w/2 Channel Stereo

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Pro.2 HA01 4K HDMI Digital HDMI Audio Extractor w/2 Channel Stereo
Extract and duplicate the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output.

  • Supports resolution up to 4K@30Hz
  • Supports deep color up to 36bit
  • Support 3D
  • Three Audio EDID Settings: 2.0CH/5.1CH/By pass
  • Supports Apple TV and various Blu-ray player, satellite receivers

Specifications
Operating Temperature Range
-5 to 35?( 23 to 95?)
Operating Humidity Range
5 to 90%RH (No Condensation)
Input Video Signal
0.5-1.0 Volts P-P
Input DDC Signal
5 volts p-p(TTL)
Support Video format
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
3D video
Support Video Color Format
xv-YCC/deep color 36bit
Support Audio Format
DTS-HD Master Audio?Dolby true-HD etc.
Data transfer speed rate
10.2 Gbps(Maximum)
Power consumption
3 watts(Maximum) AU/NZ Power Plug, 220-240v

Dimensions Approx.
89.2x66.7x25mm - Product Size

Includes
1 x Main Unit
1 x 5v DC Power Supply
Instructions



(HA01)

This product comes with a 12 month warranty

Pro.2 HA01 4K HDMI Digital HDMI Audio Extractor w/2 Channel Stereo Extract and duplicate the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output. Supports resolution up to 4K@30Hz Supports deep color up to 36bit Support 3D Three Audio EDID Settings: 2.0CH/5.1CH/By pass Supports Apple TV and various Blu-ray player, satellite receivers Specifications Operating Temperature Range     -5 to 35?( 23 to 95?) Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) Support Video format 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video Support Video Color Format xv-YCC/deep color 36bit Support Audio Format DTS-HD Master Audio?Dolby true-HD etc. Data transfer speed rate 10.2 Gbps(Maximum) Power consumption 3 watts(Maximum) AU/NZ Power Plug, 220-240v Dimensions Approx. 89.2x66.7x25mm - Product Size Includes 1 x Main Unit 1 x 5v DC Power Supply Instructions
Model # 64550087
Barcode # 9328202030573
Brand PRO2
Shipping Weight 0.4100kg
Shipping Width 0.210m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.001890000m3
Type Audio Extractor
