IP MULTICAST CONTROL MODULE 1 PER SYS FOR 3RD PARTY CONTR

Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The CM100 Control Module allows simple third party control of the Multicast system using TCP/IP, RS-232 or IR. The system wizard PC configuration program and pre-built Blustream product drivers simplify product installation and negate theneed for an understanding of complex network infrastructures.

Key Features:

• Simple system configuration using Blustream Wizard PC program
• 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
  • Better system performance as network traffic is separated
  • No advanced network setup required
  • Independently configurable IP address per LAN connection
  • Allows simplified TCP/IP control of Multicast system
• RS-232 integration for control of Multicast system
• IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 5V power supply (optional) should Ethernet switch not support PoE
• 3rd Party drivers available for all major home controlbrands

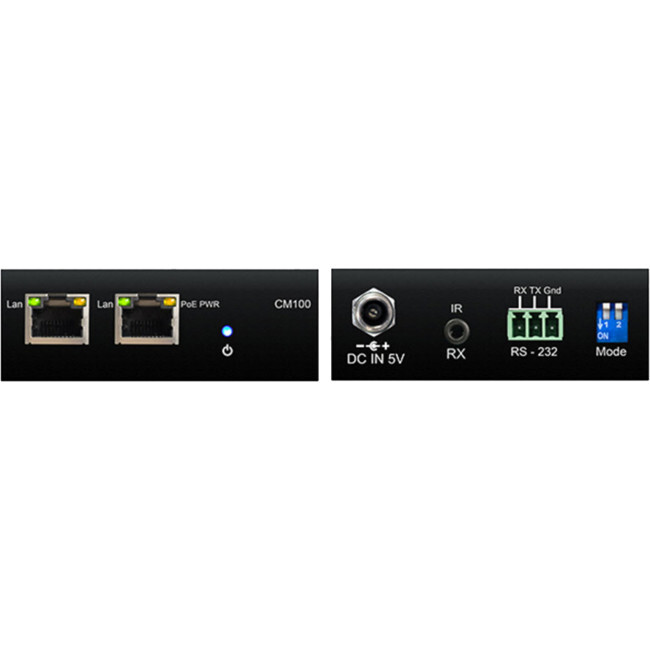

Specifications:

• Ethernet port: 2x LAN RJ45 connector (1x PoE support)
• RS-232 serial port: 1x 3-Pin Phoenix connector
• IR Input ports: 1x 3.5mm stereo jack
• Dimensions (W x D x H ): 89mm x 85mm x 23mm
• Shipping Weight (Kit): 0.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°Cto 60°C)

Box Contents:

• 1 x CM100
• 1 x IR control cable - 3.5mm-3.5mm cable
• 1 x Serial 3-pin phoenix connector
